纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (5.652[09]) - ROPS CAB - LOCK New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
998 次

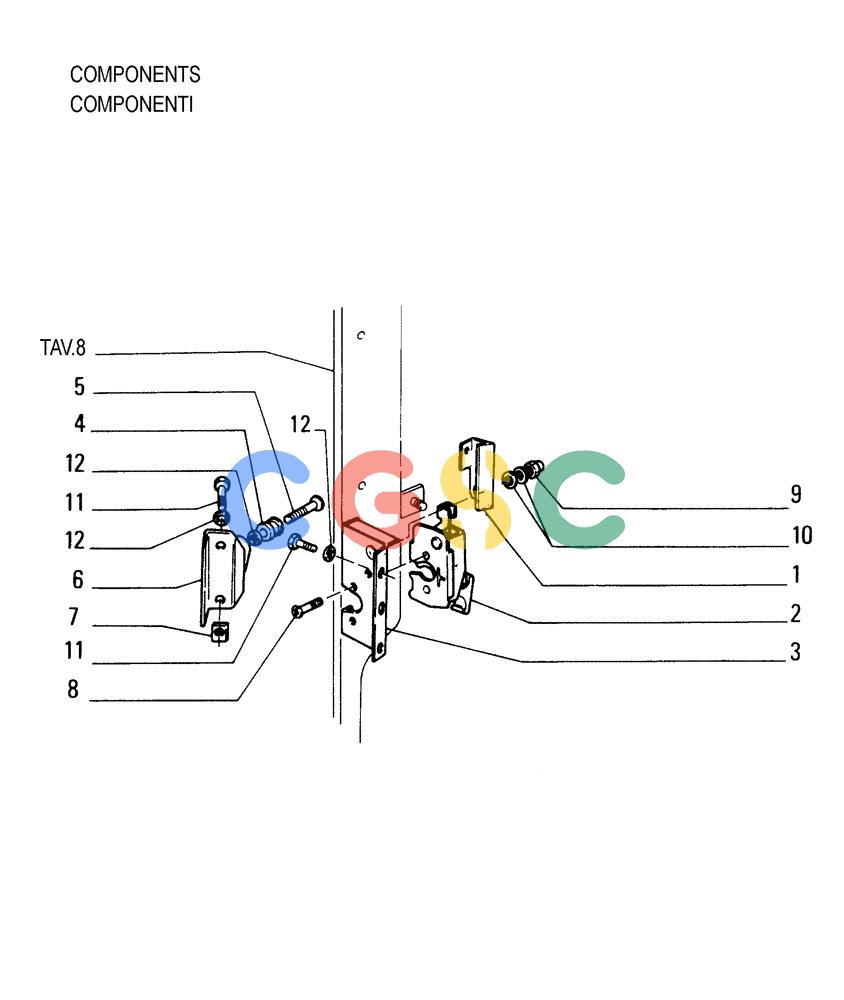

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 70741559 | [1] | LEVER | LEC- LEFT |
| 1. | 70741558 | [1] | LEVER | LEC- RIGHT |
| 2. | 79102564 | [1] | LOCK | LEC- LEFT Superseded by part number: 5154948 |
| 2. | 79102560 | [1] | LOCK | LEC- RIGHT Superseded by part number: 5154947 |
| 3. | 70741563 | [1] | SUPPORT | LEC- LEFT |
| 3. | 70741562 | [1] | SUPPORT | LEC- RIGHT |
| 4. | 79099540 | [2] | PIN | LEC |
| 5. | 79099541 | [2] | SCREW,Flat CSK, M8 x 1 x 48mm, Cl 10.9 | LEC |
| 6. | 79104549 | [2] | SUPPORT | LEC |
| 7. | 79109877 | [2] | SQUARE NUT | LEC |
| 8. | 14441427 | [6] | SCREW,Flat Csk Hd, M6 x 20mm, Cl 8.8 | LEC6X20 Superseded by part number: 14441431 |
| 9. | 16104121 | [2] | NUT,M8 x 1.25, Cl 10 | LEC Superseded by part number: 17152821 |
| 10. | 11193870 | [4] | BELLEVILLE WASHER | LEC Superseded by part number: 11193874 |
| 11. | 16043221 | [12] | BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd | HFI Superseded by part number: 16043224 |
| 12. | 14496531 | [8] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
