纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (5.652[10]) - ROPS CAB - COVERING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
245 次

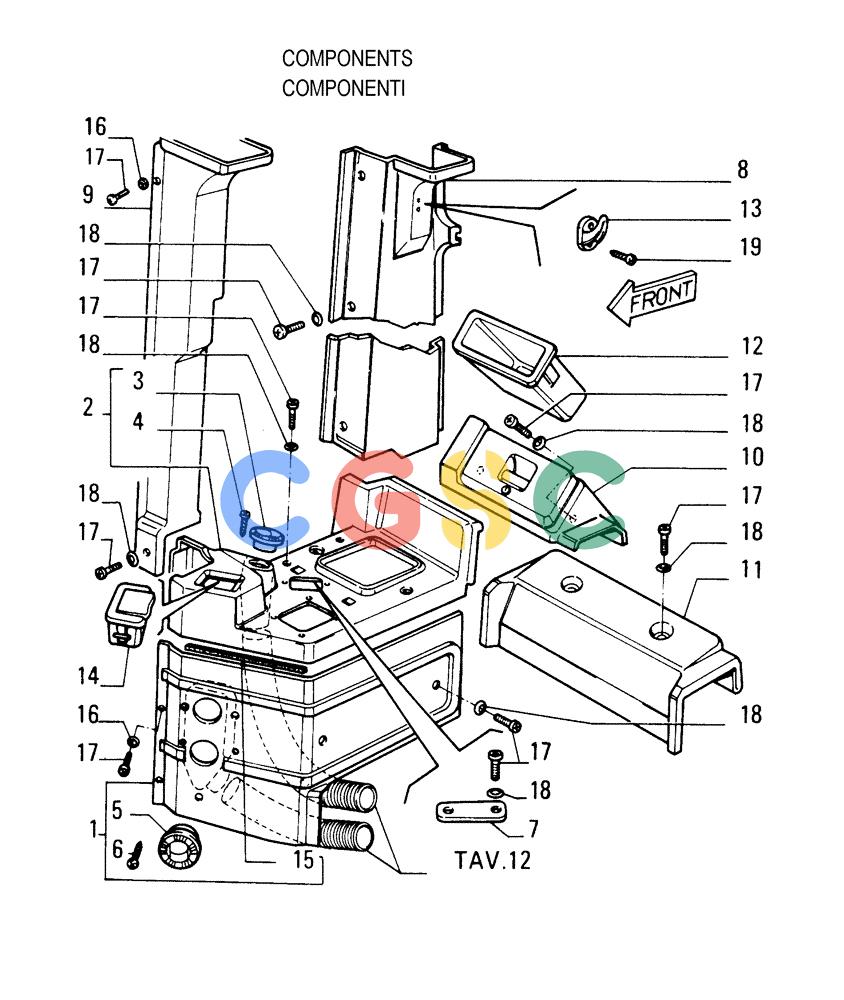

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 70741502 | [1] | INSULATING PANEL | LEC- RIGHT ASSY |
| 1. | 70741503 | [1] | INSULATING PANEL | LEC- LEFT ASSY |
| 2. | 79095585 | [1] | METAL LINER | LEC- RIGHT ASSY |
| 2. | 79095576 | [1] | METAL LINER | LEC- LEFT ASSY |
| 3. | 79087844 | [1] | DIFFUSER | LEC |
| 4. | 13296311 | [2] | SCREW | LEC3X0,5X14 |
| 7. | 79095960 | [1] | COVER | LEC |
| 8. | 79087482 | [1] | COVER | LEC- REAR LEFT Superseded by part number: 79095592 |
| 8. | 79087481 | [1] | COVER | LEC- REAR RIGHT Superseded by part number: 79095582 |
| 9. | 79087460 | [1] | COVER | LEC- FRONT RIGHT Superseded by part number: 79095596 |
| 9. | 79087461 | [1] | COVER | LEC- FRONT LEFT Superseded by part number: 79095602 |
| 10. | 79086145 | [1] | CONTAINER | LEC- RIGHT |
| 10. | 79086146 | [1] | CONTAINER | LEC- LEFT |
| 11. | 79087456 | [1] | METAL LINER | LEC |
| 12. | 4417913 | [1] | CONTAINER | BUR |
| 13. | 79031824 | [2] | HANDLE | LEC |
| 14. | 79045197 | [1] | ASH TRAY | LEC Superseded by part number: 76043643 |
| 15. | 79100837 | [1] | SEAL | LEC |
| 16. | 79076208 | [34] | WASHER | LEC |
| 17. | 79105220 | [68] | SCREW,Phillips Drive, Oval HD, M6 x 20mm | IMO |
| 18. | 79089592 | [45] | WASHER | IMO |
| 19. | 15902707 | [4] | SELF-TAP SCREW,Cross Pan Hd, M3.5 x 19mm | BAS |
