纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (5.652[12]) - ROPS CAB - SHROUD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
494 次

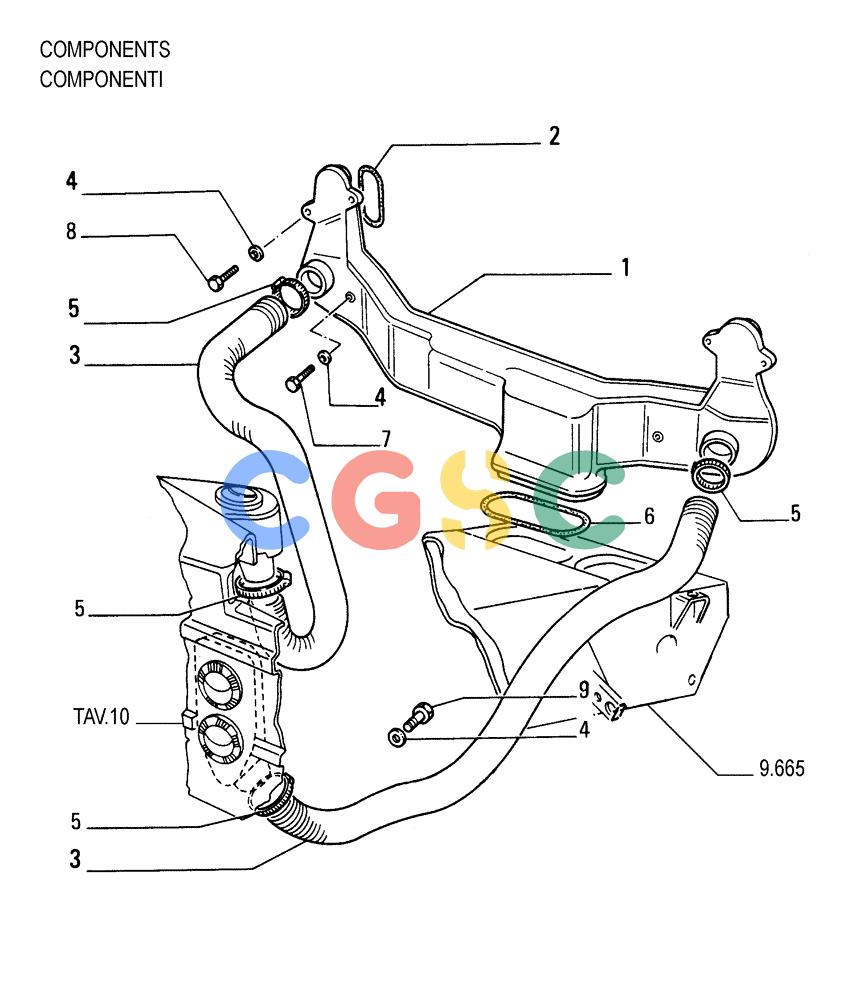

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79114289 | [1] | CONVEYOR | LEC |
| 2. | 70741515 | [2] | SEAL | LEC |
| 3. | 79072668 | [2] | HOSE | LEC |
| 4. | 14496531 | [9] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 5. | 79083849 | [4] | HOSE CLAMP,M70-90 | LEC Superseded by part number: 71404504 |
| 6. | 79093983 | [1] | BRAKE LINING | LEC |
| 7. | 16044221 | [2] | SCREW,Hex, M8 x 1.25 x 50mm, Cl 8.8 | TTF Superseded by part number: 16606121 |
| 8. | 16043221 | [4] | BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd | HFI Superseded by part number: 16043224 |
| 9. | 16044421 | [2] | SCREW,Hex, M8 x 60mm, Cl 8.8 | TTF Superseded by part number: 707772569, 120061 |
