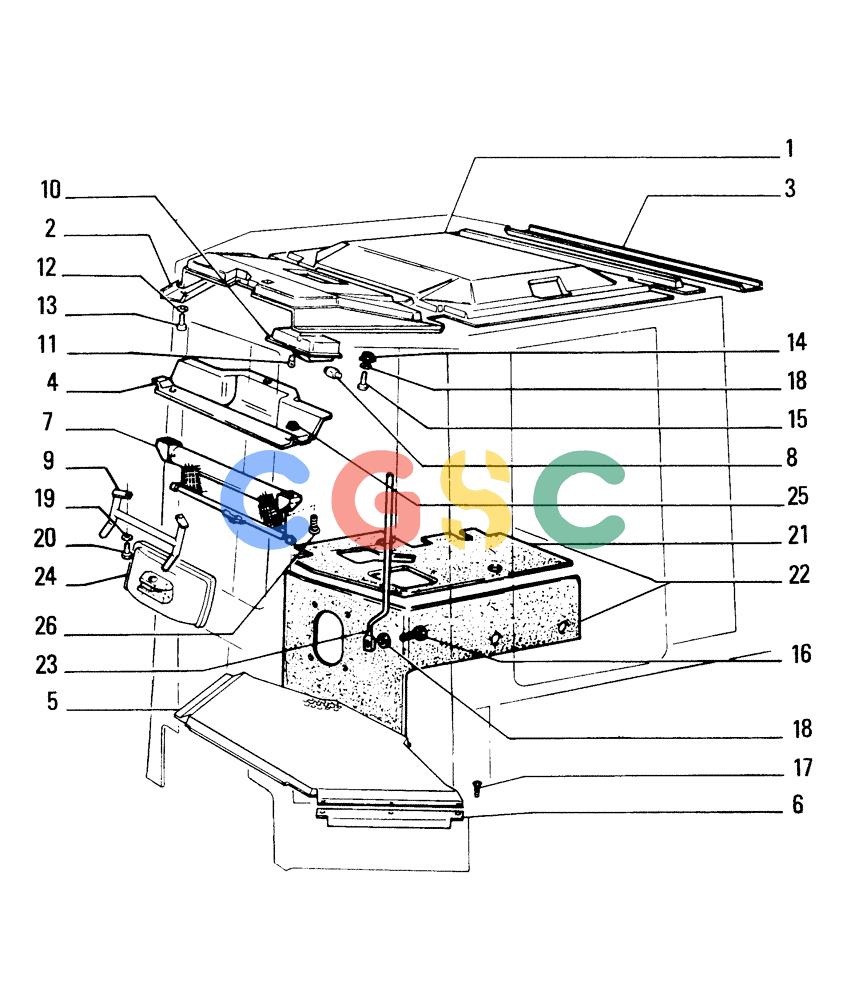

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (5.652[13]) - ROPS CAB - COMPONENTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
701 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79107383 | [1] | ROOF | LEC |
| 2. | 79101828 | [2] | ANGLE | LEC |
| 3. | 79073493 | [2] | CAPPING | LEC |
| 4. | 79100785 | [2] | SOFT TRIM | LEC |
| 5. | 79103272 | [2] | MAT | LEC |
| 6. | 79089392 | [2] | BRACKET | LEC |
| 7. | 79094459 | [2] | CURTAIN | LEC |
| 8. | 10863190 | [2] | BULB,C5W, 24V, 5W | MKT |
| 9. | 79100779 | [1] | SUPPORT | LEC |
| 10. | 79103273 | [1] | CEILING LAMP | LEC |
| 11. | 79051015 | [1] | BULB | LEC Superseded by part number: 14142490 |
| 12. | 79076208 | [12] | WASHER | LEC |
| 13. | 13313417 | [11] | SCREW,Pozidriv Oval Hd, Csk, M6 x 25mm, Cl 5.8, Full Thd | IMO |
| 14. | 70741001 | [2] | DECAL | NH |
| 15. | 13272417 | [2] | SCREW,Pozidriv Pan Hd, M4 x 20mm, Cl 5.8, Full Thd | BAS4X20 Superseded by part number: 86511826 |
| 16. | 13274117 | [2] | SCREW,M5 x 14mm | LEC5X14 Superseded by part number: 10389514 |
| 17. | 13313217 | [6] | SCREW,Pozidriv Oval Hd, Csk, M6 x 20mm, Cl 5.8, Full Thd | LEC |
| 18. | 10519301 | [4] | WASHER,5.3mm ID x 9.55mm OD x 1mm Thk | BHB Superseded by part number: 17094504 |
| 19. | 14496531 | [2] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 20. | 16043221 | [2] | BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd | HFI Superseded by part number: 16043224 |
| 21. | 79095881 | [1] | GASKET | LEC- RIGHT |
| 21. | 79095902 | [1] | GASKET | LEC- LEFT |
| 22. | 70741556 | [1] | SEAL | LEC- RIGHT |
| 22. | 70741557 | [1] | SEAL | LEC- LEFT |
| 23. | 79105232 | [1] | SLIDE GUIDE | LEC |
| 23. | 79105233 | [1] | SLIDE GUIDE | LEC |
| 24. | 76008003 | [1] | REAR VIEW MIRROR | LEC |
| 25. | 70741004 | [2] | SPECIAL NUT | LEC4 |
| 26. | 14303421 | [2] | HEX SOC SCREW,M4 x 25mm, Cl 8.8, Full Thd | MKT Superseded by part number: 14303424 |
