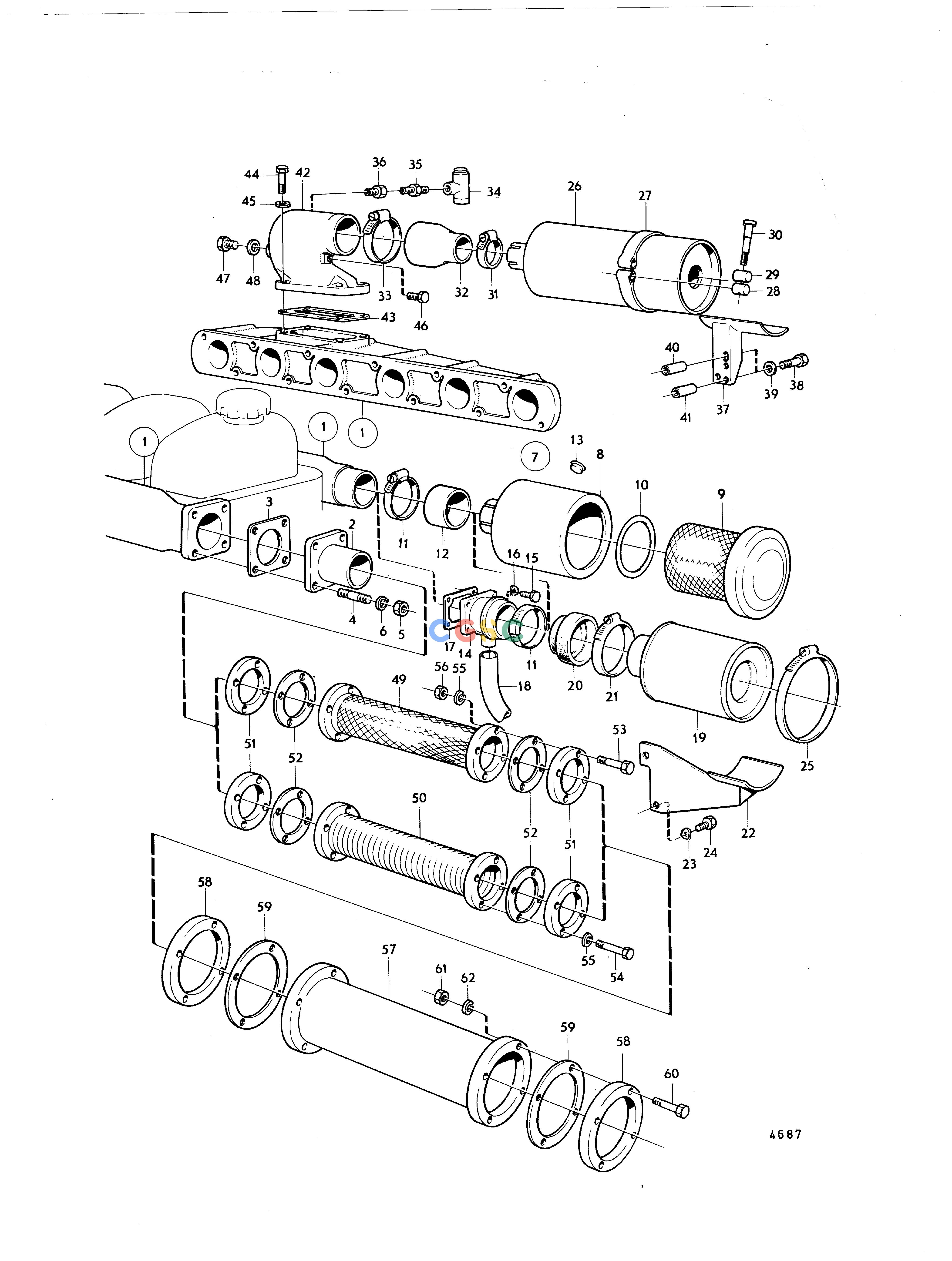

沃尔沃零件查询MD100A; TMD100A; TMD100AK; TMD100A-CC; MD100B; MD100BK; MD100B-CCCooling SystemInduction and Exhaust System: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
333 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7742120_039
|
|
induction and exhaust manifold with installation comps
|
|
| 1. |
|
|
|
|
| 2. |
820786
|
[1] |
Exhaust pipe flange
|
|
| 3. |
820785
|
[1] |
Gasket
|
|
| 4. |
953261
|
[4] |
Stud
|
|
| 5. |
943152
|
[4] |
Nut
|
|
| 6. |
940097
|
[4] |
Washer
|
|
| 7. |
821369
|
[1] |
Air filter
|
MO-97897/XXXX
|
| 8. |
|
|
|
|
| 9. |
820655
|
[1] |
Insert
|
|
| 10. |
820656
|
[1] |
Gasket
|
|
| 11. |
943481
|
[1] |
Hose clamp
|
MO-97897/XXXX
|
| 11. |
943483
|
[1] |
Hose clamp
|
MO97898/XXXX-
|
| 12. |
820878
|
[1] |
Gasket
|
MO-68421/XXXX
|
| 13. |
662620
|
[2] |
Rubber button, rubber stud
|
MO68422/XXXX- -
|
| 13. |
|
|
|
- MO-97897/XXXX
|
| 14. |
837567
|
[1] |
Flange, flange
|
MO68422/XXXX- -
|
| 14. |
|
|
|
- MO-97897/XXXX
|
| 14. |
843414
|
[1] |
Flange
|
MO97898/XXXX-
|
| 15. |
956570
|
[4] |
Hex. socket screw
|
MO68422/XXXX-
|
| 16. |
941907
|
[4] |
Spring washer
|
MO68422/XXXX-
|
| 17. |
466271
|
[1] |
Gasket
|
MO68422/XXXX-
|
| 18. |
952973
|
[1] |
Hose, hose
|
L=65mm, see group 2A
|
| 18. |
|
|
|
MO68422/XXXX-
|
| 19. |
842280
|
[1] |
Air filter
|
MO97898/XXXX-
|
| 20. |
843409
|
[1] |
Rubber fitting
|
MO97898/XXXX-
|
| 21. |
943484
|
[1] |
Hose clamp
|
MO97898/XXXX-
|
| 22. |
843415
|
[1] |
Bracket
|
MO97898/XXXX-
|
| 23. |
940280
|
[2] |
Spring washer
|
MO97898/XXXX-
|
| 24. |
955560
|
[2] |
Hexagon screw
|
MO97898/XXXX-
|
| 25. |
942921
|
[1] |
Hose clamp
|
MO97898/XXXX-
|
| 50. |
|
|
|
Spec.9969, 867113., L=185mm, early type
|
| 50. |
843087
|
[1] |
Compensator
|
L=85mm, late type
|
| 50. |
843088
|
[1] |
Compensator
|
L=185mm, late type
|
| 51. |
820905
|
[2] |
Flange
|
|
| 52. |
807578
|
[2] |
Gasket
|
|
| 53. |
955593
|
[8] |
Hexagon screw
|
|
| 54. |
955591
|
[8] |
Hexagon screw
|
Early type
|
| 54. |
955365
|
[8] |
Hexagon screw
|
Late type
|
| 55. |
941912
|
[8] |
Spring washer
|
|
| 56. |
955829
|
[8] |
Hexagon nut
|
|
