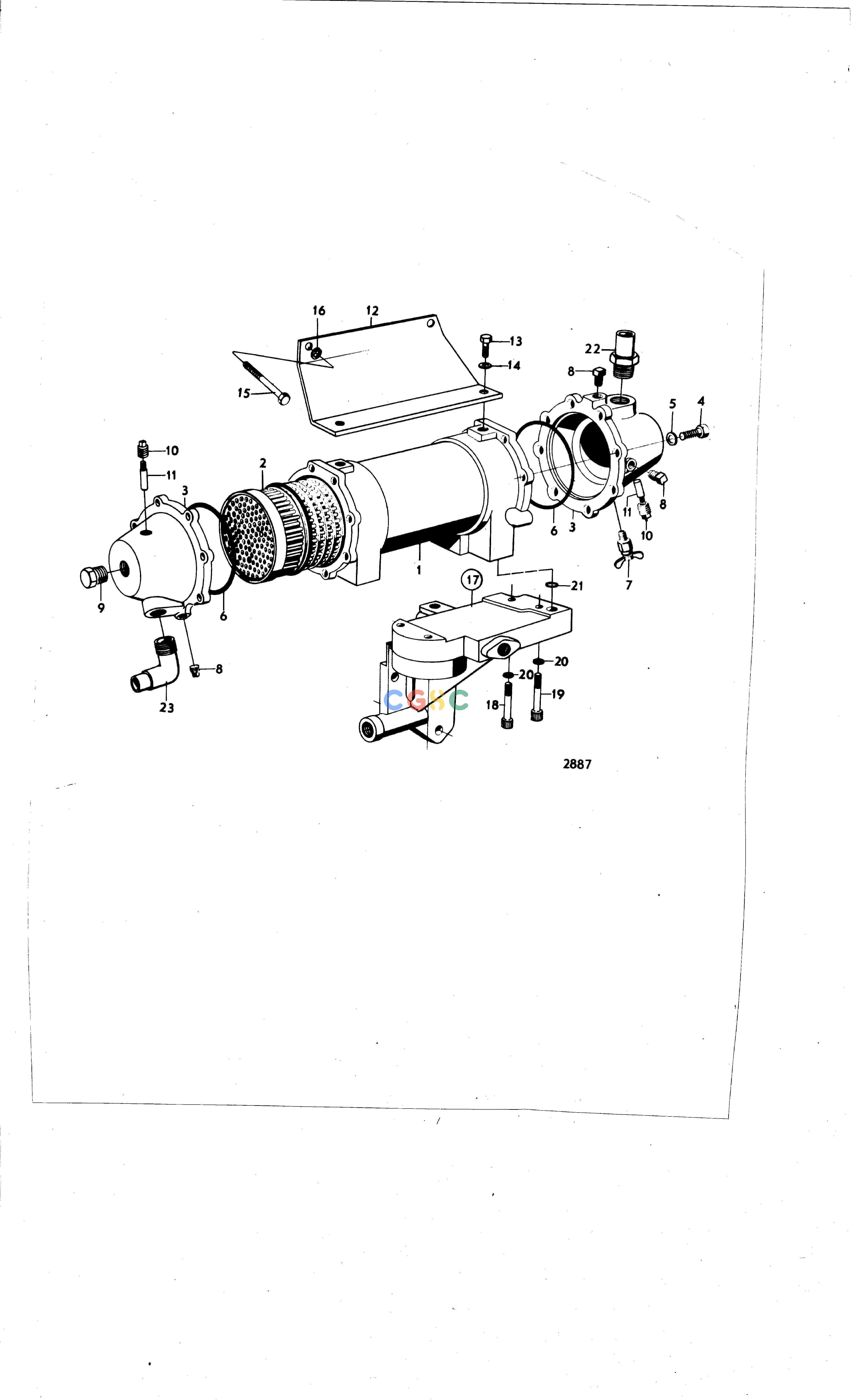

沃尔沃零件查询MD100A; TMD100A; TMD100AK; TMD100A-CC; MD100B; MD100BK; MD100B-CCCooling SystemOil Cooler with Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
570 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
821081
|
[1] |
Oil cooler
|
|
| 1. |
820542
|
[1] |
Housing
|
|
| 2. |
813885
|
[1] |
Insert
|
|
| 3. |
820770
|
[2] |
End cover
|
|
| 4. |
940094
|
[16] |
Hexagon screw
|
|
| 5. |
941906
|
[16] |
Spring washer
|
|
| 6. |
925027
|
[2] |
O-ring
|
|
| 7. |
807036
|
[1] |
Shut-off cock
|
Early type
|
| 7. |
82744
|
[1] |
Shut-off cock
|
Late type
|
| 8. |
180759
|
[7] |
Plug
|
|
| 9. |
192134
|
[2] |
Plug
|
|
| 10. |
800475
|
[2] |
Plug
|
|
| 11. |
800476
|
[2] |
Zinc electrode
|
|
| 12. |
820650
|
[1] |
Bracket
|
Included in turbo
|
| 13. |
955513
|
[2] |
Hexagon screw
|
Included in turbo.
|
| 14. |
941906
|
[2] |
Spring washer
|
Included in turbo.
|
| 15. |
955530
|
[2] |
Hexagon screw
|
Included in turbo.
|
| 16. |
941907
|
[2] |
Spring washer
|
Included in turbo.
|
| 17. |
820513
|
[1] |
Bracket
|
See group 2A
|
| 17. |
823509
|
[1] |
Selector valve
|
See group 2A
|
| 18. |
956571
|
[3] |
Hex. socket screw
|
See group 2A
|
| 19. |
956572
|
[1] |
Hex. socket screw
|
See group 2A
|
| 20. |
11992
|
[4] |
Gasket
|
See group 2A
|
| 21. |
925057
|
[1] |
O-ring
|
See group 2A
|
| 22. |
942315
|
[1] |
Hose nipple
|
|
| 23. |
898683
|
[1] |
Hose attachment
|
|
