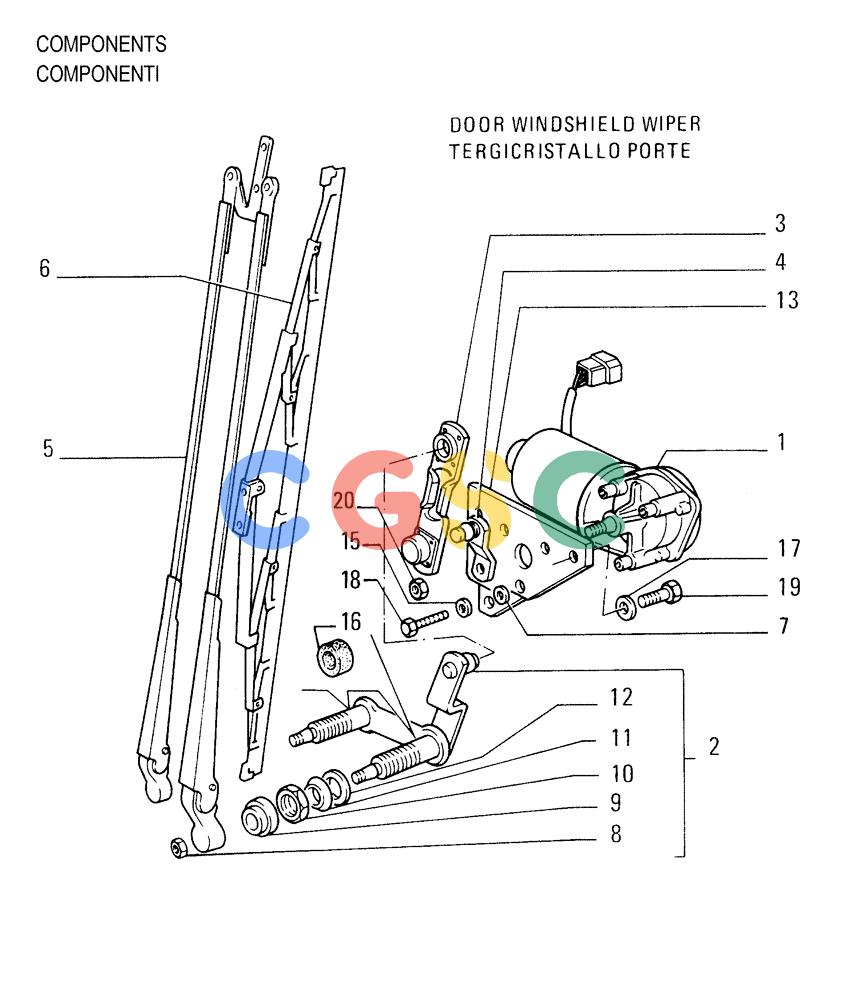

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (5.652[15]) - ROPS CAB - WINDSHIELD WIPER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
274 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 70742331 | [2] | WIPER MOTOR | LEC |
| 2. | 79094764 | [1] | PIN | LEC- ASSY |
| 3. | 79097239 | [1] | LINK CONROD | LEC |
| 4. | 79066424 | [1] | LEVER | LEC |
| 5. | 79094632 | [2] | ARM | LEC |
| 6. | 79044705 | [2] | WIPER BLADE,600mm L | LEC |
| 7. | 14496431 | [6] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 8. | 16100821 | [2] | NUT,M8, Cl 10 | LEC Superseded by part number: 43362 |
| 9. | 79045384 | [2] | PROTECTION CAP | LEC |
| 10. | 16102621 | [2] | THIN NUT,Thin, M20 x 1.5, Cl 04 | LEC |
| 11. | 79044651 | [2] | SPACER | LEC |
| 12. | 10284585 | [2] | GASKET | MKT20,2X26 Superseded by part number: 98429280 |
| 13. | 79095755 | [1] | BRACKET | LEC- RIGHT |
| 13. | 79101655 | [1] | BRACKET | LEC- LEFT |
| 15. | 79097503 | [6] | WASHER | LEC Superseded by part number: 76067146 |
| 16. | 79097502 | [4] | SPACER | LEC |
| 17. | 14496531 | [4] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 18. | 10902221 | [6] | BOLT,Hex, M6 x 16mm, CL 8.8 | BHB Superseded by part number: |
| 19. | 16043221 | [4] | BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd | HFI Superseded by part number: 16043224 |
| 20. | 16104121 | [2] | NUT,M8 x 1.25, Cl 10 | LEC Superseded by part number: 17152821 |
