纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (5.652[16]) - ROPS CAB - REAR WINDSHIELD WIPER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
685 次

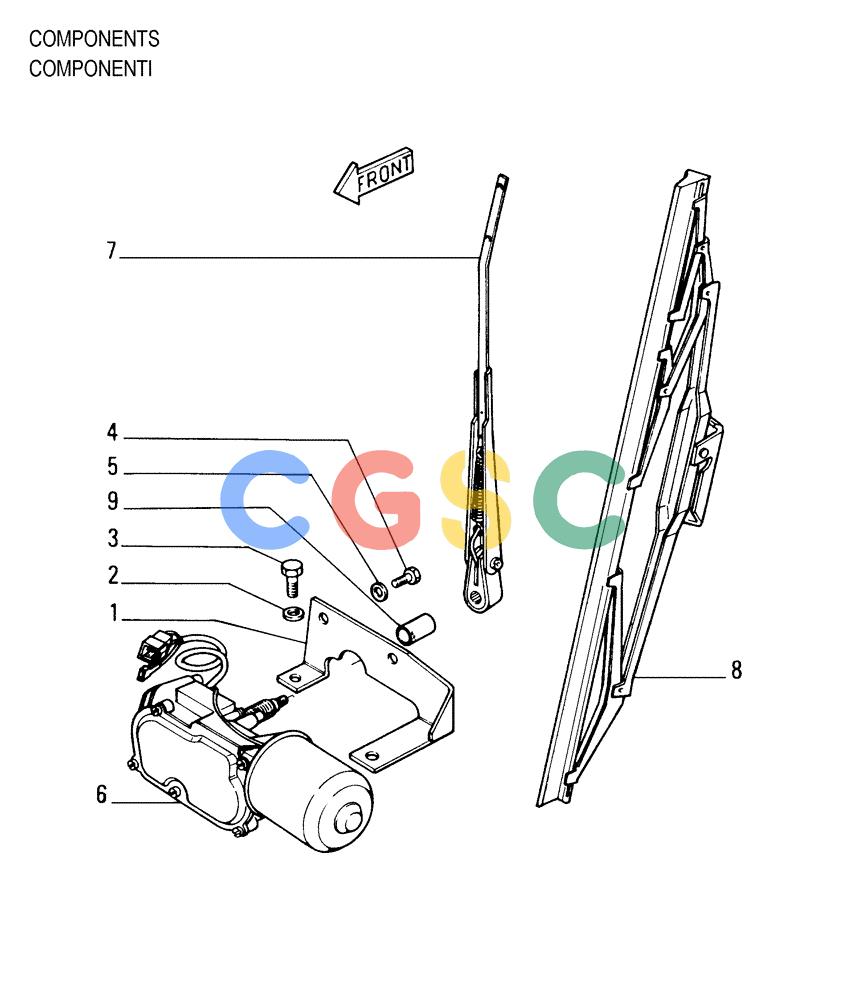

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79089016 | [1] | BRACKET | LEC |
| 2. | 14496531 | [2] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 3. | 16043021 | [2] | SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd | LEC Superseded by part number: 16043024 |
| 4. | 10962231 | [2] | SCREW | NH Superseded by part number: 10902231 |
| 5. | 14496421 | [2] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC6,4X12,5 Superseded by part number: 17094724 |
| 6. | 70741508 | [1] | SMALL ELECTRIC MOTOR | LEC |
| 7. | 79080886 | [1] | WIPER ARM | LEC |
| 8. | 79073503 | [1] | COMMUTATOR BRUSH | LEC |
| 9. | 70741638 | [1] | SPACER | LEC |
