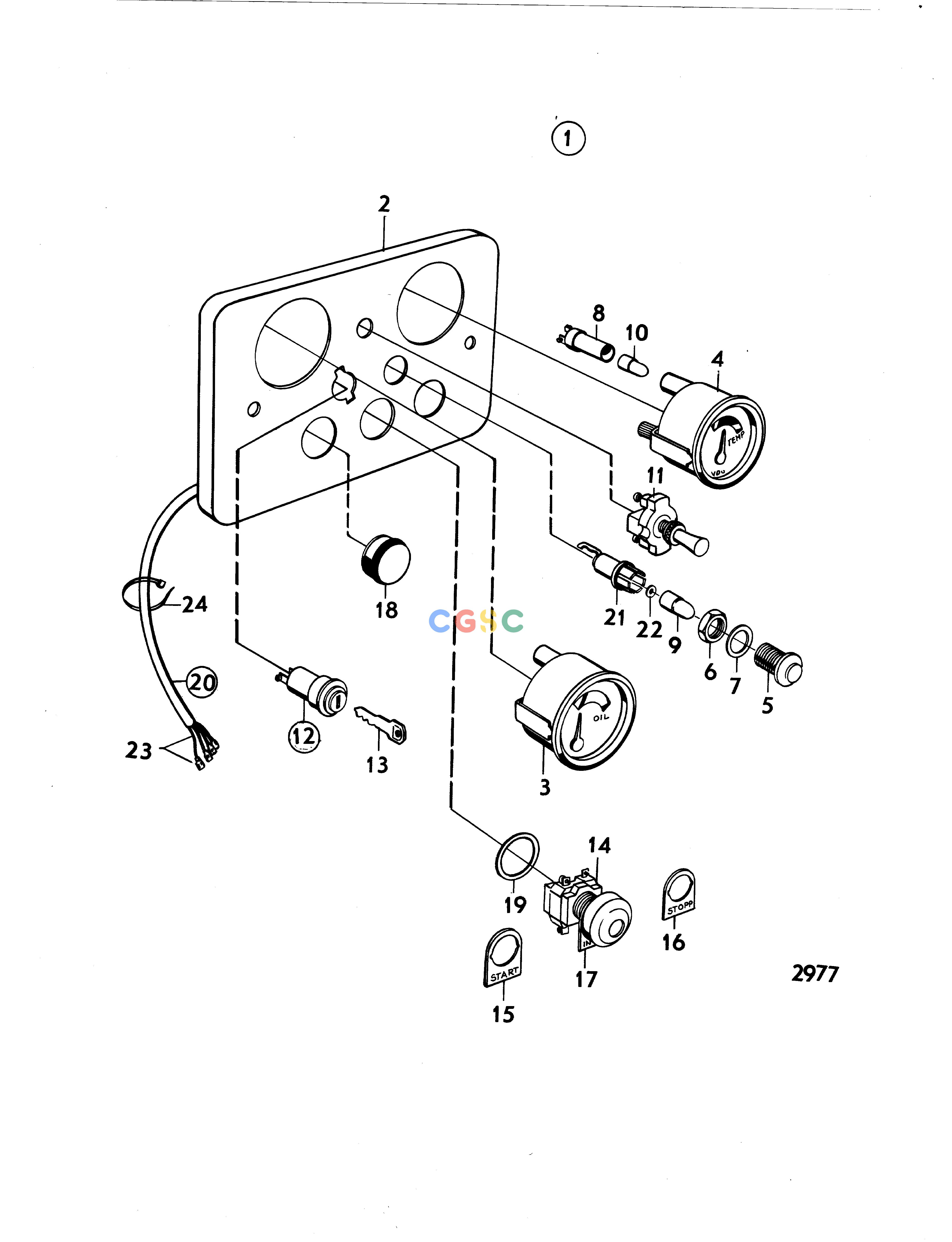

沃尔沃零件查询MD100A; TMD100A; TMD100AK; TMD100A-CC; MD100B; MD100BK; MD100B-CCElectrical SystemInstrument Panel: 823403EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
673 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
823403
|
[1] |
Instrument
|
24V
|
| 2. |
821385
|
[1] |
Instrument panel
|
|
| 3. |
813864
|
[1] |
Instrument
|
|
| 4. |
827149
|
[1] |
Thermometer
|
|
| 5. |
809485
|
[1] |
Housing
|
|
| 6. |
809487
|
[1] |
Nut
|
|
| 7. |
809488
|
[1] |
Spring washer
|
|
| 8. |
808175
|
[2] |
Bulb socket
|
|
| 9. |
182034
|
[1] |
Bulb
|
(277803) 2W
|
| 10. |
182059
|
[2] |
Bulb
|
2W
|
| 11. |
819079
|
[1] |
Pull switch
|
|
| 12. |
837437
|
[1] |
Starter switch
|
|
| 13. |
240321
|
[2] |
Key
|
For cable area 6,5-10,5mm²., Marked S
|
| 13. |
241383
|
[2] |
Key
|
For cable area 6,5-10,5mm²., Marked E
|
| 14. |
837582
|
[2] |
Push button
|
|
| 15. |
821389
|
[1] |
Sign
|
|
| 16. |
821388
|
[1] |
Sign
|
|
| 18. |
821386
|
[1] |
Plug
|
|
| 19. |
823715
|
[2] |
Intermediate ring
|
For cable area 16mm²
|
| 20. |
836953
|
[1] |
Cable block
|
|
| 21. |
672750
|
[1] |
Retainer
|
|
| 22. |
95497
|
[1] |
Tubular rivet
|
|
| 23. |
7742120_085
|
|
cable and cable terminals
|
|
| 23. |
|
|
|
|
| 24. |
948210
|
[1] |
Cable tie
|
(827353)
|
