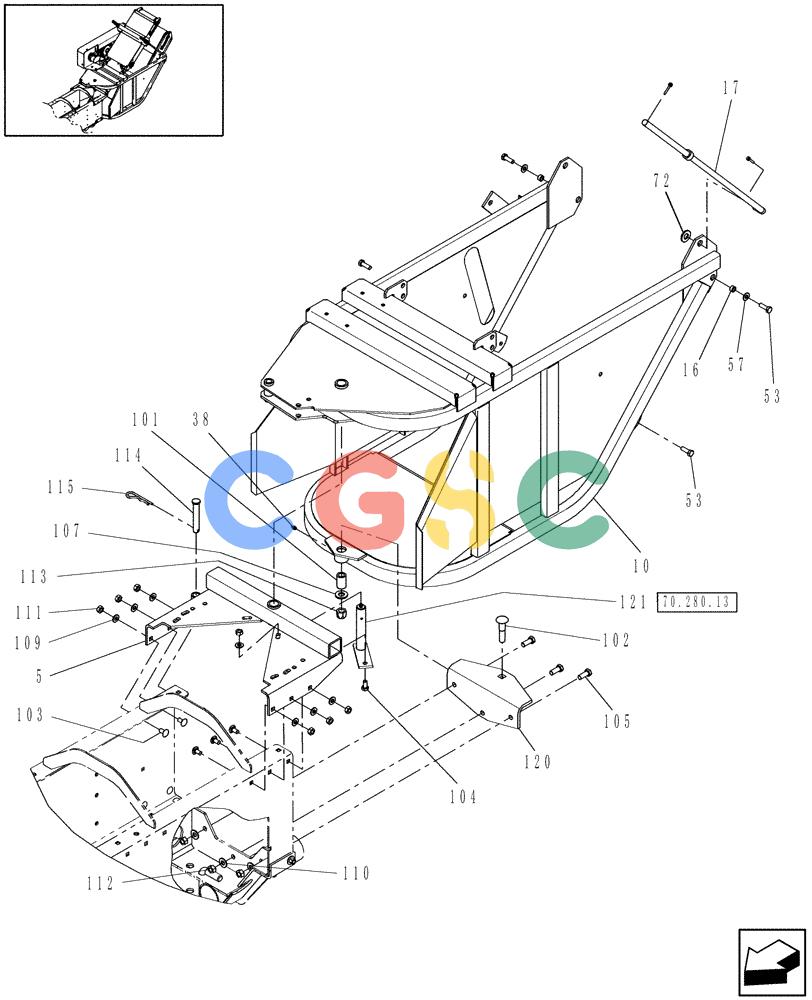

凯斯零件查询(BTX11) - CASE IH BALE THROWER (1/02-) (70.280.01) - MAIN FRAME Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
854 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
86633905
|
[1] |
SUPPORT
|
NH
|
| 10. |
86635681
|
[1] |
FRAME
|
NH
|
| 16. |
133095
|
[2] |
SPACER,10.32mm ID x 15.85mm OD x 7.9mm L
|
NH
|
| 17. |
86641544
|
[2] |
ROD
|
NH
|
| 38. |
87414
|
[1] |
LUBE NIPPLE,1/4" - 28
|
NH
|
| 53. |
43140
|
[4] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 57. |
140045
|
[2] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 72. |
87365
|
[2] |
WASHER,0.66" ID x 1.31" OD x 0.1" Thk
|
NH
|
| 76. |
88472
|
[1] |
ELBOW,90º, 3/4"-14 Female x 3/4"-14 Male
|
WIN
Superseded by part number: 248994
|
| 101. |
86633909
|
[1] |
SPACER,16mm ID x 25mm OD x 38mm L
|
NH
|
| 102. |
280560
|
[1] |
CARRIAGE BOLT,Short NK, 5/8"-11 x 2 3/4", G5
|
GI
|
| 103. |
120041
|
[6] |
CARRIAGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 104. |
43138
|
[1] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8
|
NH
|
| 105. |
9706687
|
[3] |
BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 110. |
140046
|
[3] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 111. |
100016
|
[6] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 112. |
9706685
|
[3] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 113. |
85700693
|
[1] |
NUT,5/8" - 11, Gr C
|
NH
|
| 114. |
849233
|
[1] |
PIN
|
NH
|
| 115. |
86000109
|
[1] |
COTTER PIN
|
NH
|
| 120. |
86633908
|
[1] |
PIVOT ASSY.
|
NH
|
| 121. |
86633906
|
[1] |
PIN,25mm OD x 150mm L
|
NH
|
