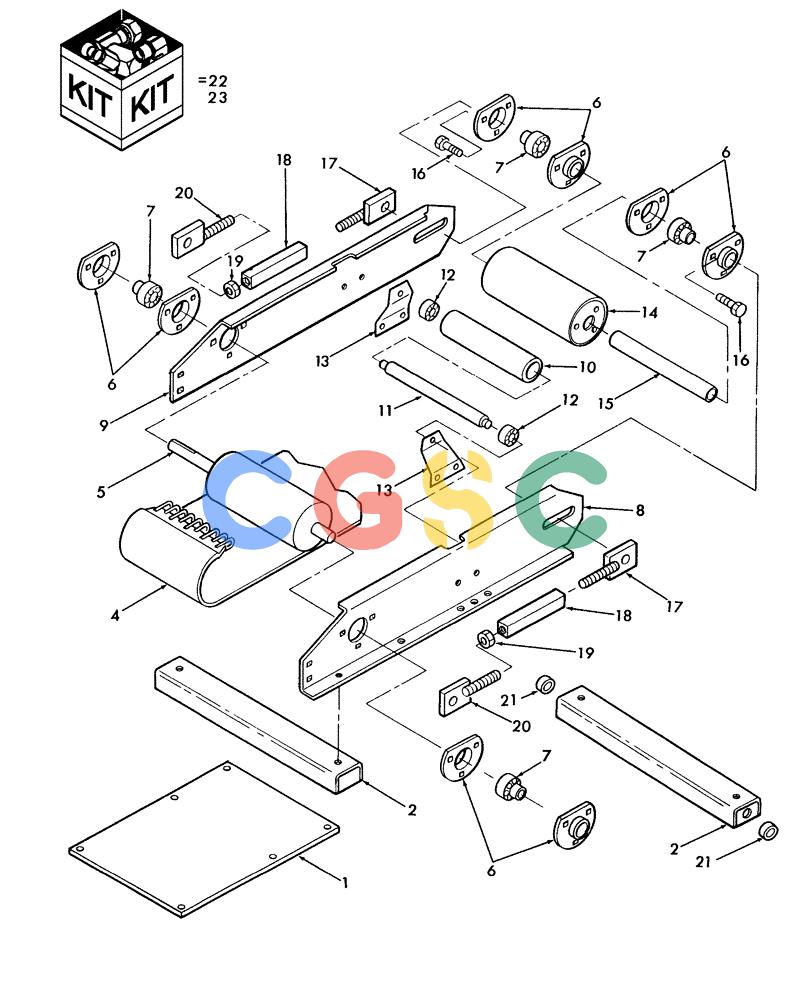

| 1. |
86635675
|
[1] |
SHIELD
|
NH
|
| . . |
614-8016
|
[4] |
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 16043224
|
| . . |
832-46408
|
[4] |
NUT,M8 x 1.25, Cl 8
|
CAS
Superseded by part number: 86528579
|
| 2. |
86635677
|
[2] |
CHANNEL
|
NH
|
| . . |
614-8020
|
[4] |
BOLT,Hex, M8 x 1.25 x 20mm
|
CAS
Superseded by part number: 120104
|
| . . |
140045
|
[4] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| . . |
832-46410
|
[4] |
NUT,M10 x 1.5, Cl 8
|
CAS
Superseded by part number: 100037
|
| 4. |
9601394
|
[1] |
BELT,1830.00 mm L
|
NH
Lower
|
| . . |
48653
|
[1] |
CABLE
|
NH
Steel W/ Nylon Jack
|
| 5. |
86641590
|
[1] |
ROLLER
|
NH
Drive
|
| 5. |
84320112
|
[2] |
FLANGE
|
ZED
|
| 6. |
662649R1
|
[1] |
RETAINER
|
IH
Flange, Bearing, Front Superseded by part number: 84320112
|
| . . |
811-8020
|
[6] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86507486
|
| . . |
614-10020
|
[6] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43138
|
| 7. |
47434106
|
[2] |
BEARING ASSY
|
NH
Used for Ref. 5 Drive Roll, Inc 47434107. Included in Drive Roll Kits 86517694 & 86517695
|
| . . |
47434107
|
[2] |
COLLAR
|
NH
Used for Ref. 5 Drive Roll, Lock for 47434106
|
| 8. |
47428616
|
[1] |
APRON
|
NH
Side, Lower LH
|
| . . |
492-11031
|
[2] |
LOCK WASHER,5/16"
|
CAS
Superseded by part number: 83990583
|
| . . |
825-1408
|
[2] |
NUT,M8, Cl 8
|
CAS
Superseded by part number: 43362
|
| 9. |
47428618
|
[1] |
APRON
|
NH
Side, Lower RH
|
| 10. |
86641562
|
[1] |
ROLLER
|
NH
|
| 10. |
86603075
|
[4] |
FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm
|
NH
|
| 11. |
9802785
|
[1] |
SPINDLE
|
NH
|
| 12. |
65391
|
[2] |
BALL BEARING,17 mm ID x 40 mm OD x 12 mm
|
NH
Superseded by part number: 87302841
|
| 13. |
86641536
|
[2] |
BRACKET
|
NH
|
| 14. |
86836911
|
[1] |
ROLLER
|
NH
|
| 15. |
9802780
|
[1] |
SPINDLE
|
NH
1.00" Dia.
|
| 16. |
614-8025
|
[6] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43127
|
| 17. |
86641521
|
[2] |
SIDE PANEL
|
NH
|
| . . |
614-16040
|
[2] |
BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 86509867
|
| . . |
140048
|
[2] |
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
|
NH
|
| . . |
33298
|
[2] |
WASHER,16.7mm ID x 41.3mm OD x 4.78mm Thk
|
NH
|
| 18. |
86641523
|
[2] |
LINK
|
NH
|
| 19. |
829-4410
|
[2] |
THIN NUT,Thin, M10 x 1.5, Cl 05
|
CAS
Superseded by part number: 934300R1
|
| 20. |
86641522
|
[2] |
SIDE PANEL
|
NH
|
| 21. |
133095
|
[2] |
SPACER,10.32mm ID x 15.85mm OD x 7.9mm L
|
NH
|
| . . |
614-10030
|
[2] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 43140
|
| 22. |
74015
|
[1] |
KIT
|
PA
Belt Repair, Lacing
|
| 23. |
74016
|
[1] |
KIT
|
PA
Belt Repair
|
