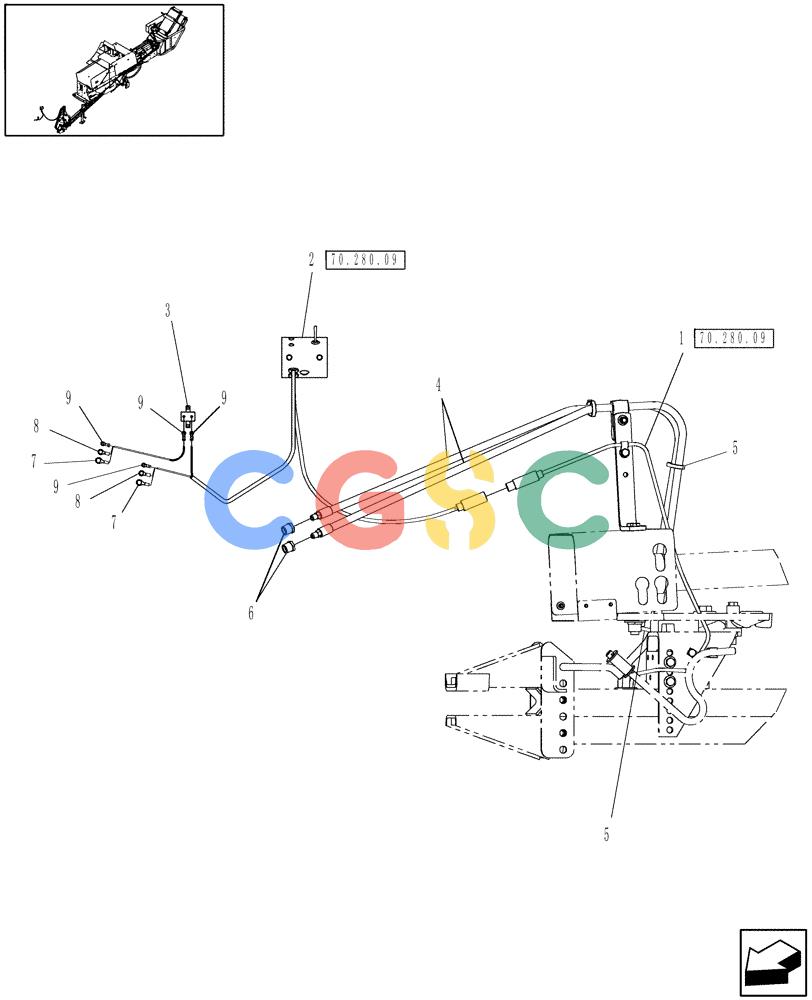

凯斯零件查询(BTX11) - CASE IH BALE THROWER (1/02-) (70.280.08) - ELECTRICAL Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
521 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
796574
|
[1] |
WIRE HARNESS
|
NH
|
| 2. |
86637980
|
[1] |
CONTROL UNIT
|
NH
|
| 3. |
131376
|
[1] |
CIRCUIT BREAKER
|
PA
20A Superseded by part number: 768120
|
| 4. |
9619437
|
[2] |
FLEXIBLE HOSE,0.25" ID x 336.00", SAE 100R1
|
NH
|
| 5. |
529070
|
[2] |
CABLE TIE,368.3mm L
|
NH
CABLE STRAP
|
| 6. |
87572
|
[2] |
BUSHING
|
MKT
Superseded by part number: 86625018
|
| 7. |
76771
|
[2] |
TERMINAL CONNECTOR,14 - 16 GA
|
NH
3/8"
|
| 8. |
76775
|
[2] |
TERMINAL CONNECTOR,14 - 16 SAE
|
NH
5/16"
|
| 9. |
46431
|
[4] |
TERMINAL CONNECTOR,16 - 14 SAE
|
NH
#10 Superseded by part number: 87723455
|
