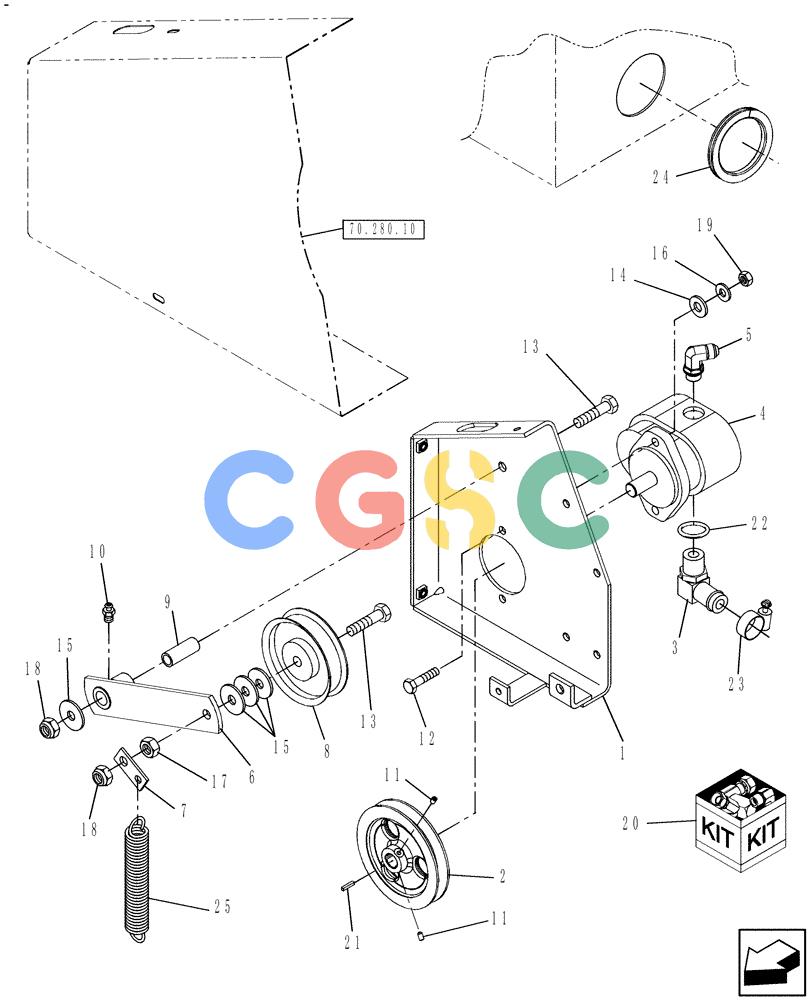

凯斯零件查询(BTX11) - CASE IH BALE THROWER (1/02-) (70.280.12[1]) - HYDRAULIC PUMP, BELT TIGHENER & DRIVE PULLEY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
175 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86635688
|
[1] |
BRACKET
|
NH
|
| 2. |
9601420
|
[1] |
SHEAVE
|
NH
|
| 3. |
858997
|
[1] |
ELBOW
|
NH
Includes: Ref. 22
|
| 4. |
86553259
|
[1] |
HYDRAULIC PUMP
|
NH
Includes: Ref. 20 & 21
|
| 5. |
128830
|
[1] |
90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB
|
NH
|
| 6. |
86836909
|
[1] |
SUPPORT
|
NH
|
| 7. |
86628313
|
[1] |
SUPPORT
|
NH
|
| 8. |
86636724
|
[1] |
IDLER,101.6mm Idler Dia x 115.49mm OD x 37.31mm W
|
NH
|
| 9. |
9603079
|
[1] |
SPACER
|
NH
|
| 10. |
87414
|
[1] |
LUBE NIPPLE,1/4" - 28
|
NH
|
| 11. |
120242
|
[2] |
SET SCREW,Hex Skt, M6 x 10mm, Cup Pt
|
ZED
|
| 12. |
43140
|
[2] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 13. |
9706717
|
[2] |
BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8
|
NH
|
| 14. |
87016
|
[2] |
WASHER,0.41" ID x 0.81" OD x 0.07" Thk
|
NH
|
| 15. |
87364
|
[4] |
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
|
NH
|
| 16. |
140045
|
[2] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 17. |
9706685
|
[1] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 18. |
100038
|
[2] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 19. |
100016
|
[2] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 20. |
86529016
|
[1] |
SEAL KIT
|
BEL
|
| 21. |
86604969
|
[1] |
KEY
|
NH
Sq. .03" x .97"
|
| 22. |
167266
|
[1] |
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
|
NH
|
| 23. |
513309
|
[1] |
HOSE CLAMP,1-1/16" - 2", Worm
|
NH
|
| 24. |
PL
|
[1] |
PROCURE LOCALLY
|
BAS
Edging
|
| 25. |
86640952
|
[1] |
SPRING
|
NH
|
