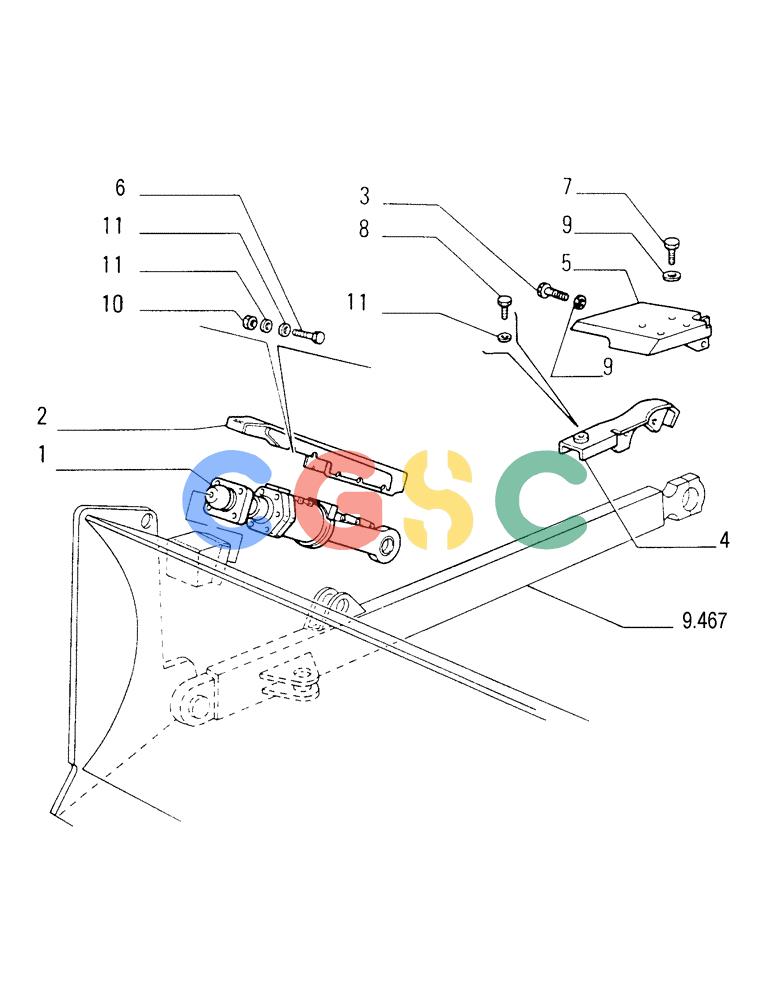

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (9.470[01]) - TILT CYLINDER - FRONT IMPLEMENT - OPTIONAL CODE 79113485 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
615 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76041030 | [1] | OPERATING CYLINDER | LEC- ASSY SEE TAV.3 |
| 2. | 76042016 | [1] | GUARD | LEC |
| 3. | 11118731 | [2] | BOLT,Hex, M16 x 45, 10.9 | LEC Superseded by part number: 86508624 |
| 4. | 79113908 | [1] | GUARD | LEC |
| 5. | 79114324 | [1] | GUARD | LEC |
| 6. | 11114431 | [5] | BOLT,Hex, M12 x 110, 10.9 | LEC Superseded by part number: 9501756 |
| 7. | 11118531 | [4] | BOLT,Hex, M16 x 40, 10.9 | BHB Superseded by part number: 374835 |
| 8. | 11112431 | [4] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 9. | 79005240 | [6] | WASHER,16.8mm ID x 36mm OD x 8mm Thk | LEC |
| 10. | 11702921 | [5] | NUT,M12, Cl 10 | LEC Superseded by part number: 17038425 |
| 11. | 14496731 | [14] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
