纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (9.470[02]) - TILT CYLINDER - FRONT IMPLEMENT - OPTIONAL CODE 79113485 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
852 次

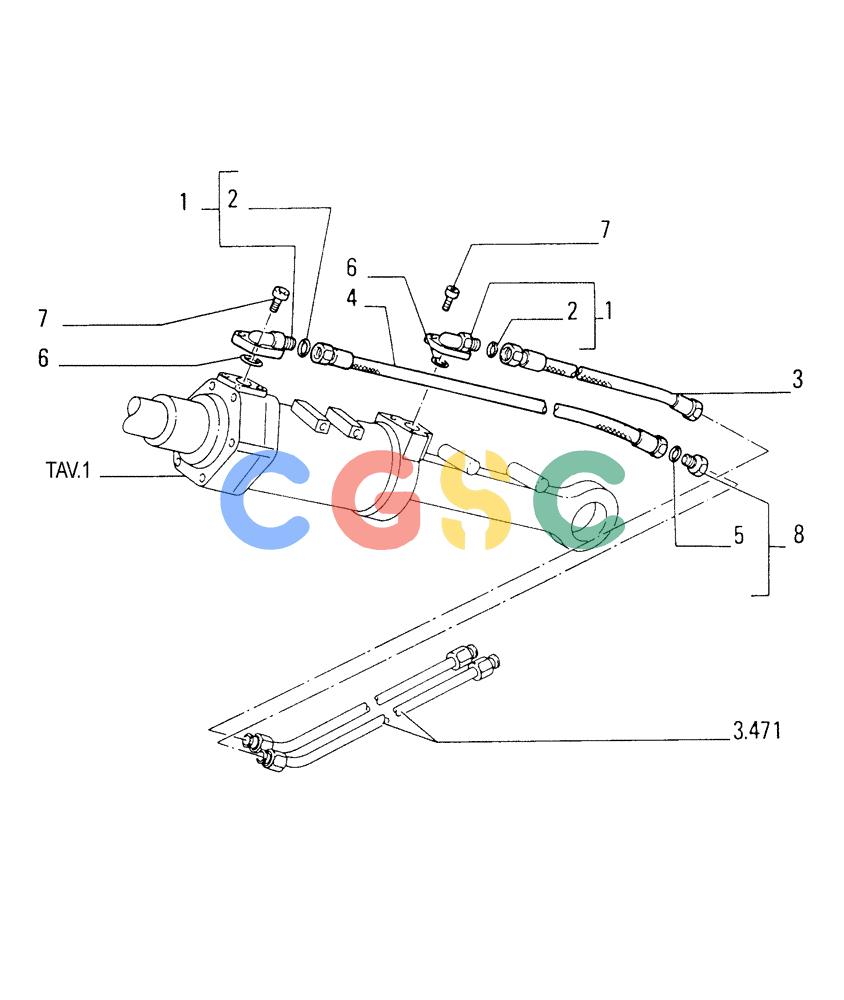

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79113738 | [2] | FLANGE | LEC- ASSY |
| 2. | 70923841 | [1] | O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro | LEC Superseded by part number: 9992298 |
| 3. | 79113481 | [1] | FLEXIBLE HOSE | LEC- REAR |
| 4. | 79113480 | [1] | FLEXIBLE HOSE,9.50 mm ID x 2985.00 mm, SAE 100R2 | LEC- FRONT |
| 6. | 70924200 | [2] | O-RING | LEC3,53X32,92 Superseded by part number: 14463780 |
| 7. | 14420331 | [8] | HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd | LEC |
| 8. | 78100102 | [2] | PLUG | LEC- ASSY |
