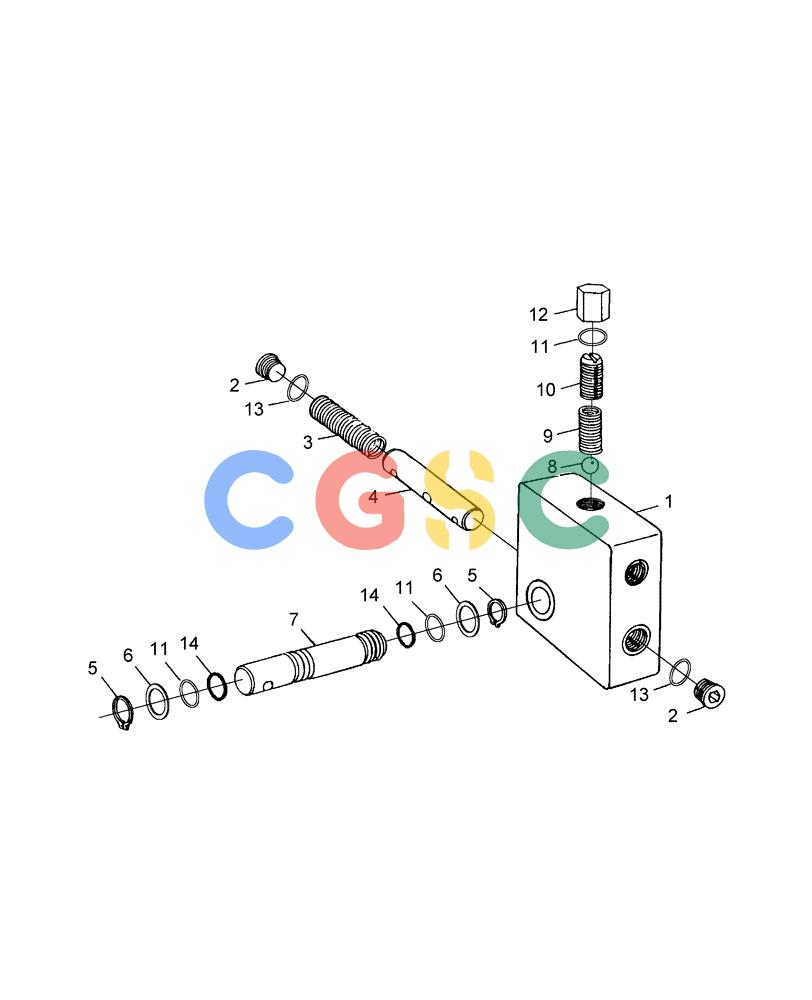

凯斯零件查询(BTX11) - CASE IH BALE THROWER (1/02-) (70.280.14[1]) - FLOW CONTROL VALVE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
504 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
847664
|
[1] |
HYDRAULIC VALVE
|
NH
Flow Control, Includes: Ref. 1 - 12
|
| 1. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Body
|
| 2. |
263136
|
[2] |
MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF
|
NH
PLUG, MAGNETIC
|
| 3. |
271873
|
[1] |
SPRING
|
NH
Metering Superseded by part number: 86900794
|
| 4. |
271880
|
[1] |
SPOOL
|
NH
Metering
|
| 5. |
100-1193
|
[2] |
SNAP RING,#93, Ext
|
CAS
Superseded by part number: 271877
|
| 6. |
87363686
|
[2] |
RETAINER
|
PA
Seal, Nylon
|
| 7. |
87363683
|
[1] |
LEVER
|
PA
Side Spool
|
| 8. |
110680
|
[1] |
BALL,12.75mm OD
|
NH
Steel, 1/2" Dia.
|
| 9. |
276399
|
[1] |
SPRING
|
NH
Relief
|
| 10. |
276398
|
[1] |
ADJUSTMENT SCREW
|
NH
Adjusting
|
| 11. |
511356
|
[1] |
O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro
|
PA
|
| 12. |
87363684
|
[1] |
NUT
|
PA
Cap
|
| 13. |
9824050
|
[2] |
O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro
|
WIN
Superseded by part number: 87473574
|
| 14. |
86977728
|
[2] |
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
|
PA
|
