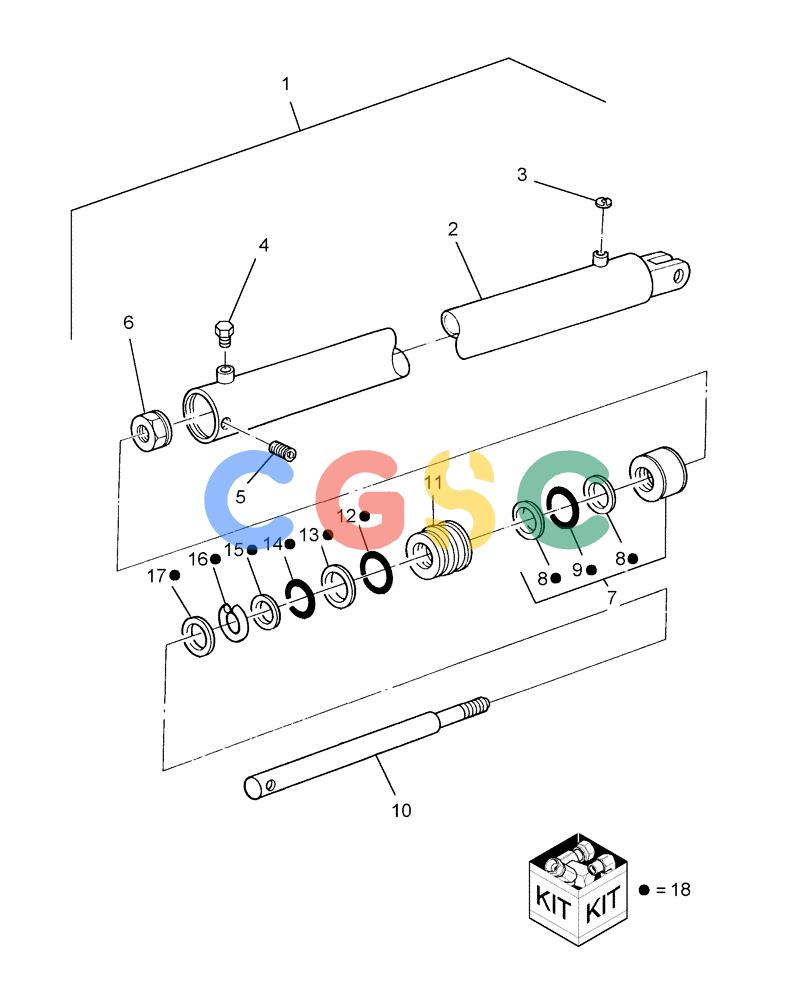

凯斯零件查询(BTX11) - CASE IH BALE THROWER (1/02-) (70.280.15[1]) - HYDRAULIC CYLINDER, DIRECTION CONTROL, PRIOR TO P.I.N. HBJ0003525 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
764 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86634424
|
[1] |
CYLINDER ASSY.
|
NH
Hydraulic, Includes: Ref. 2 - 18 Superseded by part number: 87019620
|
| 2. |
9619435
|
[1] |
CYLINDER,50.8mm Bore Dia
|
NH
|
| 3. |
705914
|
[1] |
ORIFICE
|
NH
|
| 4. |
76349
|
[2] |
PLUG,9/16" - 18 ORB
|
NH
|
| 5. |
529034
|
[1] |
SET SCREW
|
NH
HS, Self-Locking, Cup Pt, 1/4"-20 x 1/4"
|
| 6. |
280724
|
[1] |
LOCK NUT,3/4" - 16
|
NH
|
| 7. |
768213
|
[1] |
PISTON
|
NH
Includes: Ref. 9 & 10 Superseded by part number: 511953, 511297, 235759
|
| 8. |
511297
|
[2] |
SEAL,41.22mm ID x 50.8mm OD x 1.93mm Thk
|
NH
1.638" ID x .064" Thick
|
| 9. |
238-5326
|
[1] |
O-RING,0.21" Thk x 1.6" ID, -326, Cl 5, 75 Duro
|
NH
Superseded by part number: 104258
|
| 10. |
9619433
|
[1] |
ROD
|
NH
Superseded by part number: 87026043
|
| 11. |
9613952
|
[1] |
CYLINDER HEAD
|
NH
|
| 12. |
238-6224
|
[1] |
O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro
|
CAS
Superseded by part number: 235782
|
| 13. |
270103
|
[1] |
BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk
|
NH
Backup, 1.772" ID x .043" Thk
|
| 14. |
235758
|
[1] |
O-RING,1.115" ID x 1.387" OD x 0.143"
|
NH
1.109" ID x .139" Thick
|
| 15. |
134371
|
[1] |
SEALING WASHER
|
NH
SEALRING Backup, 1.141" ID x .040" Thick
|
| 16. |
512016
|
[1] |
SNAP RING
|
NH
Int, 2.125"
|
| 17. |
128406
|
[1] |
SEAL,28.57mm ID x 41.45mm OD x 6.35mm Thk
|
NH
Rod Wiper
|
| 18. |
9613951
|
[1] |
SEAL KIT
|
NH
Includes: Ref. 8, 9 & 12 - 17
|
