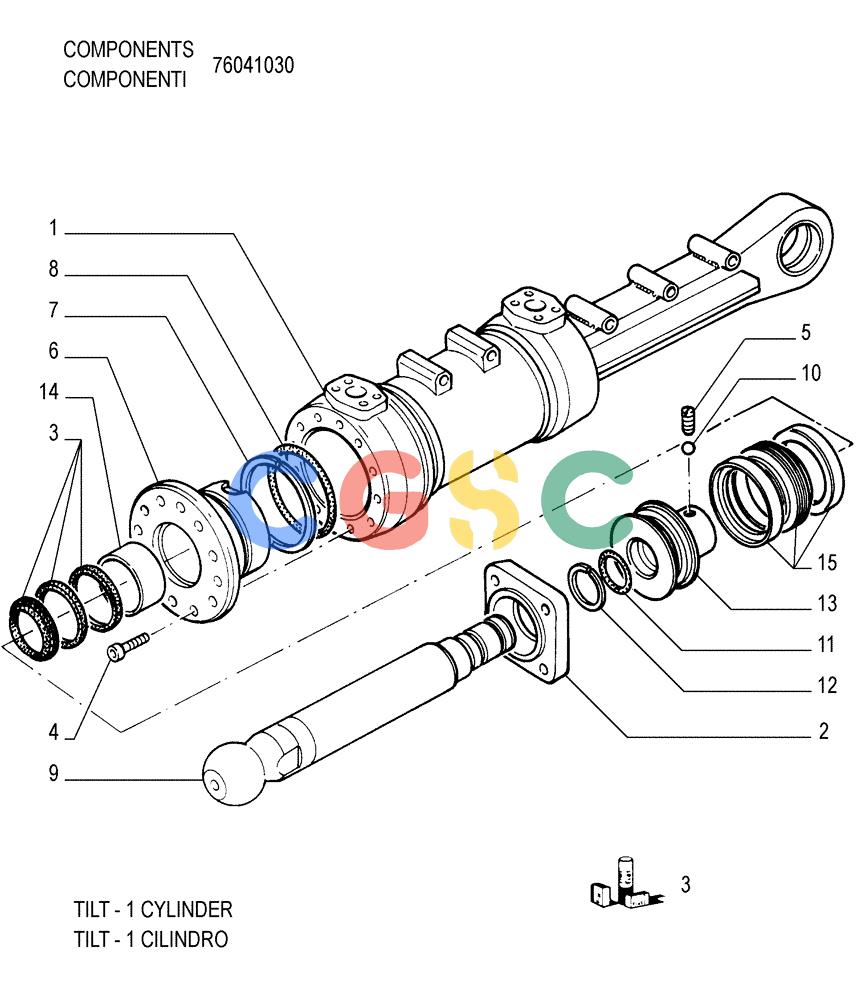

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (9.470[03]) - TILT CYLINDER - FRONT IMPLEMENT - OPTIONAL CODE 79113485 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
829 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76042017 | [1] | BARREL | LEC- ASSY |
| 2. | 8273636 | [1] | FLANGE | LEC |
| 3. | 79071307 | [1] | SEAL | LEC |
| 4. | 14422371 | [12] | SCREW,M12 x 1.75 x 45mm | LEC12X1,75X45 Superseded by part number: 14422374 |
| 5. | 76042022 | [1] | SCREW | LEC Superseded by part number: 76041456 |
| 6. | 76042019 | [1] | END PLATE | LEC |
| 7. | 8298265 | [1] | RING | LEC |
| 8. | 14467080 | [1] | O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro | LEC(M132.9 ID x 3.53 Thk) Superseded by part number: 79051081 |
| 9. | 76042018 | [1] | ROD | LEC |
| 10. | 76041454 | [1] | PISTON | LEC |
| 11. | 76042023 | [1] | O-RING | LEC Superseded by part number: 76053662 |
| 12. | 76042024 | [1] | CIRCLIP | LEC Superseded by part number: 76053662 |
| 13. | 76042021 | [1] | PISTON | LEC |
| 14. | 76042020 | [1] | RING | LEC Superseded by part number: 76053662 |
| 15. | 8292367 | [1] | SEAL,115mm ID x 140mm OD x 25.4mm Thk | LEC |
