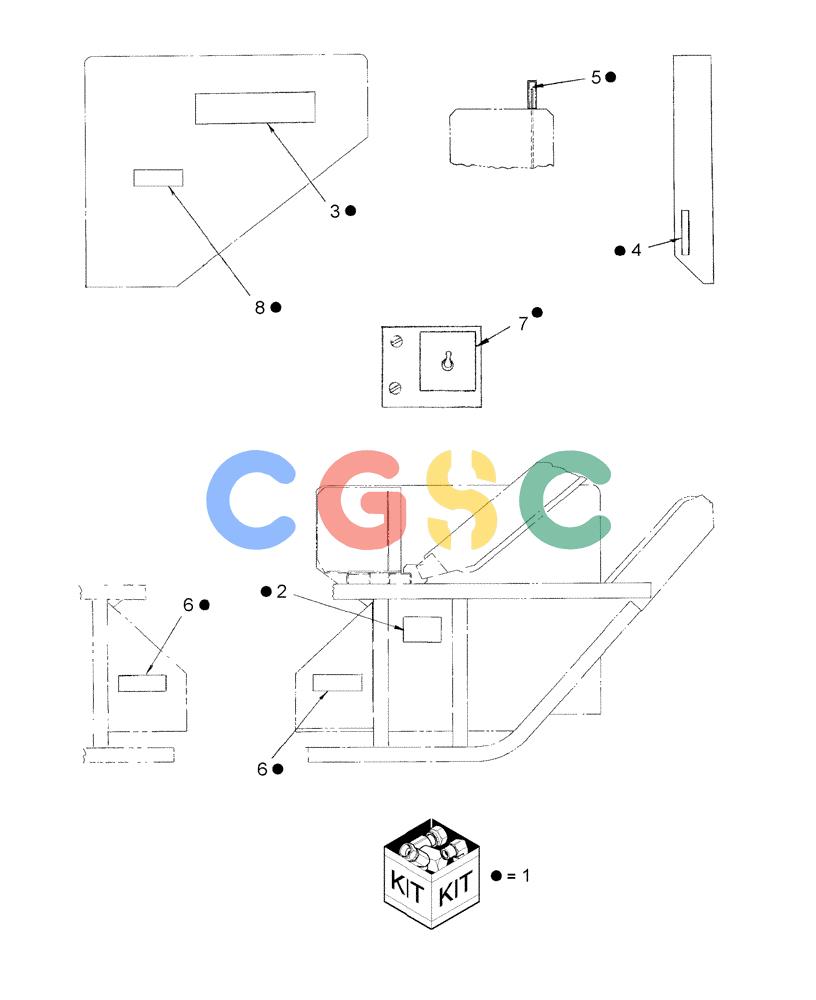

凯斯零件查询(BTX11) - CASE IH BALE THROWER (1/02-) (70.280.17) - DECALS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
588 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86634486
|
[1] |
DECAL KIT
|
NH
Includes Ref. 2 - 7
|
| 2. |
86622073
|
[1] |
WARNING DECAL
|
NH
English
|
| 2. |
86622074
|
[1] |
WARNING DECAL
|
NH
WARNING, French
|
| 3. |
86624776
|
[1] |
DECAL
|
NH
Logo, CIH 100
|
| 4. |
86547781
|
[1] |
REFLECTOR,RED
|
NH
Red Retroreflective
|
| 5. |
86626430
|
[1] |
DECAL
|
NH
Indicator
|
| 6. |
86521673
|
[2] |
WARNING DECAL
|
NH
Pinch Area, English
|
| 6. |
850610
|
[2] |
WARNING DECAL
|
NH
French
|
| 7. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Decal, Attention
|
| 8. |
86547782
|
[2] |
REFLECTOR,YELLOW
|
NH
Yellow Retro-Reflective
|
