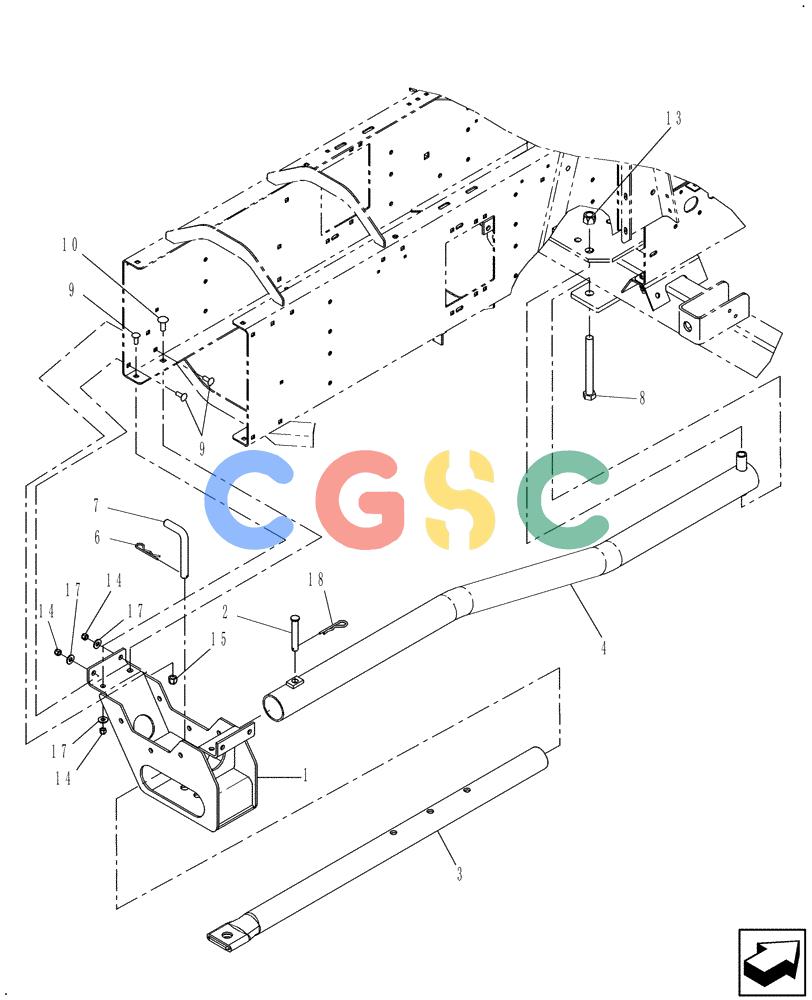

凯斯零件查询(BTX11) - CASE IH BALE THROWER (1/02-) (70.280.18) - WAGON HITCH Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
236 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86630166
|
[1] |
SUPPORT
|
PA
|
| 2. |
849233
|
[1] |
PIN
|
NH
|
| 3. |
86634465
|
[1] |
TONGUE
|
NH
3/4" Hitch Pin Hole
|
| 3. |
84134280
|
[1] |
TONGUE
|
NH
1" Hitch Pin Hole
|
| 4. |
86630170
|
[1] |
TUBE,76.2mm OD x 1758.7mm L
|
PA
|
| 6. |
86511448
|
[1] |
COTTER PIN,0.148" Dia x 3.31" L
|
NH
Superseded by part number: 80033778
|
| 7. |
86630164
|
[1] |
PIN
|
NH
|
| 8. |
280316
|
[1] |
BOLT,Hex, 3/4" - 10 x 7", Gr 5
|
NH
|
| 9. |
280503
|
[6] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
|
COE
Superseded by part number: 80280503
|
| 10. |
88707
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd
|
GI
|
| 13. |
9626598
|
[1] |
NUT,3/4"-10, GB
|
PA
Superseded by part number: 280375
|
| 14. |
9637692
|
[6] |
NUT,3/8"-16, GB
|
NH
|
| 15. |
9636698
|
[1] |
NUT,1/2"-13, GB
|
NH
Superseded by part number: 88871
|
| 17. |
80702
|
[6] |
WASHER,0.44" ID x 1" OD x 0.08" Thk
|
NH
|
| 18. |
86000109
|
[1] |
COTTER PIN
|
NH
|
