日立零件查询（CP215）VALVE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
430 次

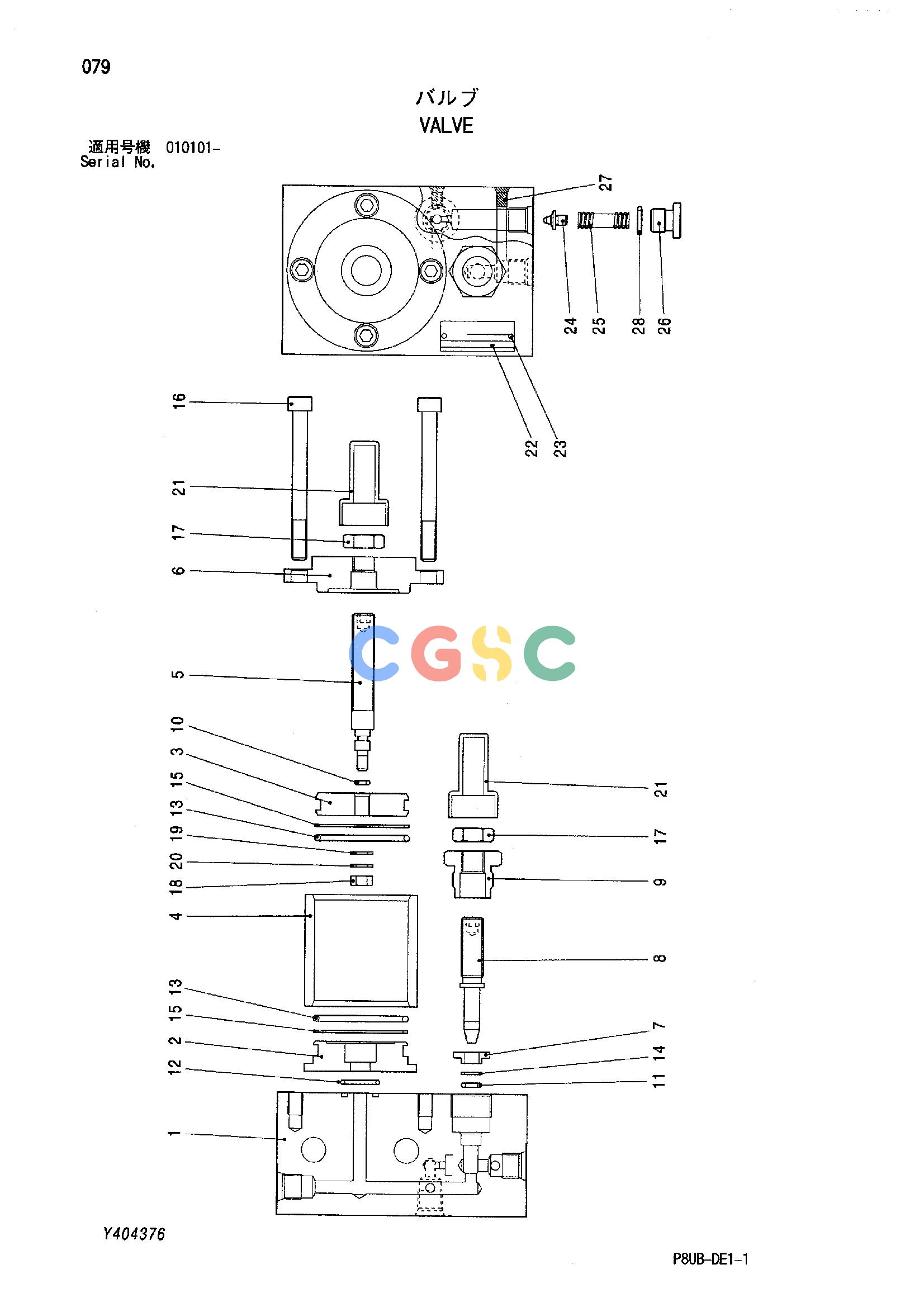

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 424434 | [1] | VALVE | |
| 1. | +++++++ | [1] | BODY | |
| 2. | 424434-01 | [1] | RETAINER | |
| 3. | 424434-02 | [1] | PISTON | |
| 4. | 424434-03 | [1] | SLEEVE | |
| 5. | 424434-04 | [1] | SCREW;ADJUST | |
| 6. | 424434-05 | [1] | COVER | |
| 7. | 424434-06 | [1] | RETAINER | |
| 8. | 424434-07 | [1] | SCREW;ADJUST | |
| 9. | 424434-08 | [1] | GUIDE | |
| 10. | 438609 | [1] | O-RING | |
| 11. | 438612 | [1] | O-RING | |
| 12. | 438614 | [1] | O-RING | |
| 13. | 448274 | [2] | O-RING | |
| 14. | 424434-09 | [1] | RING;BACKUP | |
| 15. | 424434-10 | [2] | RING;BACKUP | |
| 16. | 425122-71 | [4] | BOLT;SOCKET | |
| 17. | 425458-23 | [2] | NUT | |
| 18. | 570004 | [1] | NUT | |
| 19. | 947886 | [1] | WASHER | |
| 20. | 947886 | [1] | WASHER;SPRING | |
| 21. | 424434-11 | [2] | CAP | |
| 22. | +++++++ | [1] | NAME-PLATE | |
| 23. | +++++++ | [2] | SCREW;DRIVE | |
| 24. | 424434-12 | [1] | POPPET | |
| 25. | 424434-13 | [1] | SPRING | |
| 26. | 424434-14 | [1] | PLUG | |
| 27. | +++++++ | [1] | PLUG | |
| 28. | 438402 | [1] | O-RING | |
