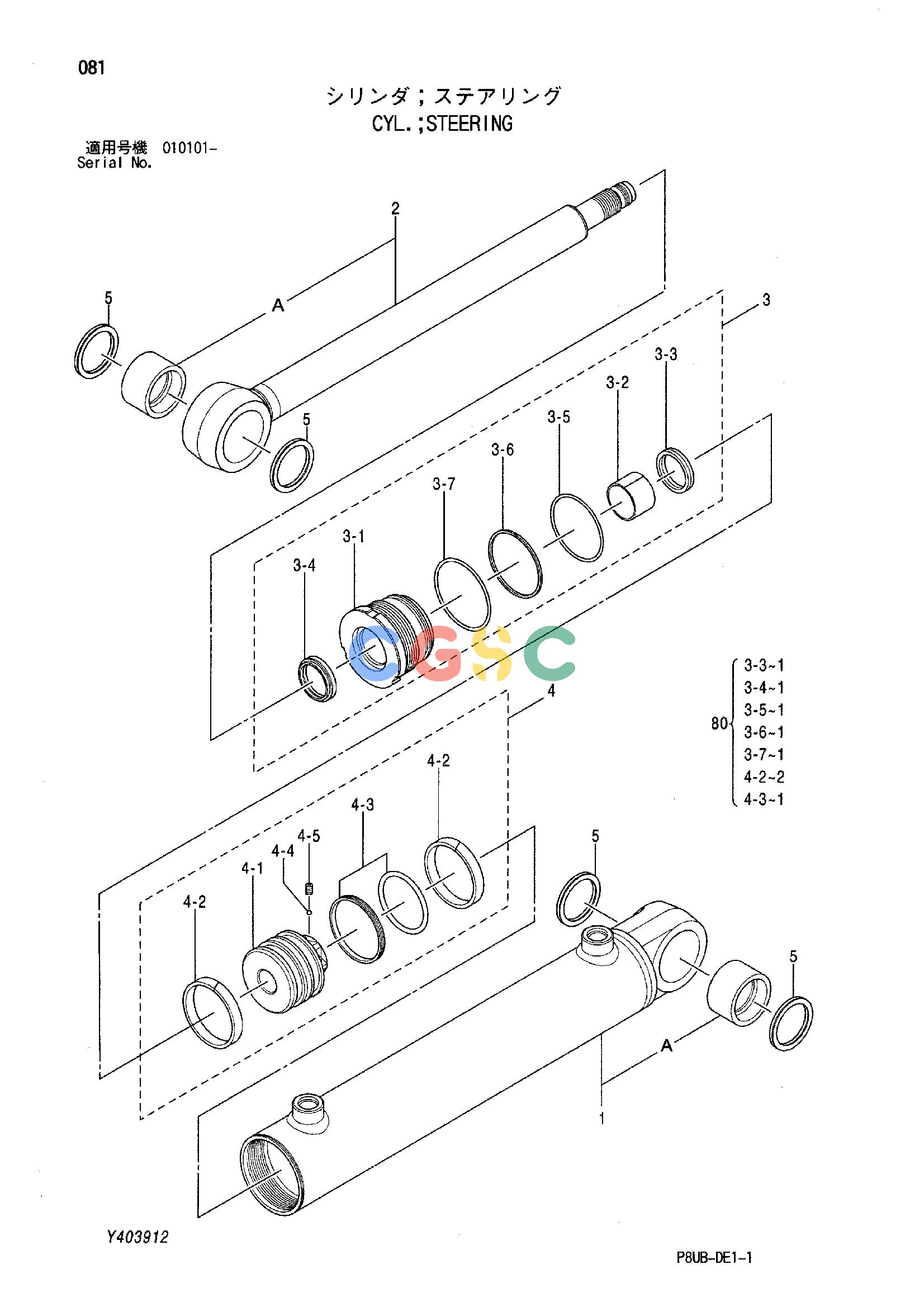

日立零件查询（CP215）CYL.;STEERING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
643 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 424267 | [1] | CYL.;STEERING | |
| 1. | 424267-10 | [1] | TUBE;CYL. | |
| 1A. | 424267-11 | [1] | BUSHING | |
| 2. | 424267-20 | [1] | ROD;PISTON | |
| 2A. | 424267-11 | [1] | BUSHING | |
| 3. | 424267-30 | [1] | HEAD;CYL. ASS'Y | |
| 3-1. | 424267-31 | [1] | HEAD;CYL. | |
| 3-2. | 425460-32 | [1] | BUSHING | |
| 3-3. | 425460-33 | [1] | PACKING;U-RING | |
| 3-4. | 425460-34 | [1] | RING;WIPER | |
| 3-5. | 424267-32 | [1] | O-RING | |
| 3-6. | 424267-33 | [1] | RING;BACK-UP | |
| 3-7. | 426051-37 | [1] | O-RING | |
| 4. | 424267-40 | [1] | PISTON ASS'Y | |
| 4-1. | 424267-41 | [1] | PISTON | |
| 4-2. | 424267-42 | [2] | RING;SLIDE | |
| 4-3. | 424267-43 | [1] | RING;SEAL | |
| 4-4. | 425460-44 | [1] | BALL;STEEL | |
| 4-5. | 425460-45 | [1] | SCREW;SET | |
| 5. | 425126-50 | [4] | SEAL;DUST | |
| 80. | 426481 | [1] | KIT;SEAL | |
