纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (9.475[01]) - C-FRAME - HYDRAULIC TILT - OPTIONAL CODE 79114672 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
489 次

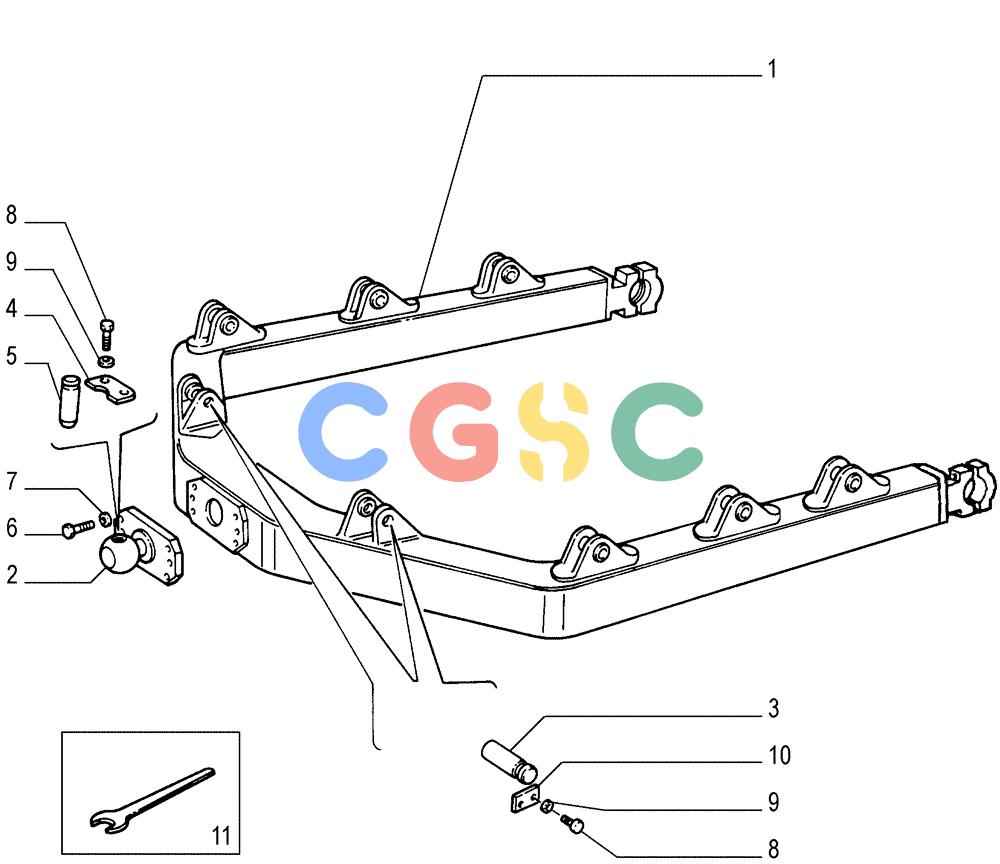

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79112860 | [1] | U-FRAME | LEC- ASSY SEE TAV.2-3 |
| 2. | 8274704 | [1] | SUPPORT | LEC- IN ALTERNATIVE Superseded by part number: 76092028 |
| 2. | 8274616 | [1] | SUPPORT | LEC- IN ALTERNATIVE Superseded by part number: 8274704 |
| 3. | 79114660 | [2] | PIN | LEC |
| 4. | 8270126 | [1] | PLATE | LEC Superseded by part number: 76092114 |
| 5. | 8273214 | [1] | PIN,50mm OD x 252mm L | LEC |
| 6. | 16047071 | [6] | BOLT,Hex, M18 x 2.5 x 50mm, Cl 12.9, Full Thd | LEC |
| 7. | 14497031 | [6] | WASHER,M18 x 34 | LEC |
| 8. | 11115531 | [6] | BOLT,Hex, M14 x 30, 10.9, Full Thd | LEC Superseded by part number: 11115534 |
| 9. | 14496831 | [6] | WASHER,15mm ID x 28mm OD x 2.5mm Thk | LEC14,4X28 |
| 10. | 79114659 | [2] | PLATE | LEC |
| 11. | 14585778 | [1] | ADJUSTING WRENCH | LEC36 Superseded by part number: 14585771 |
