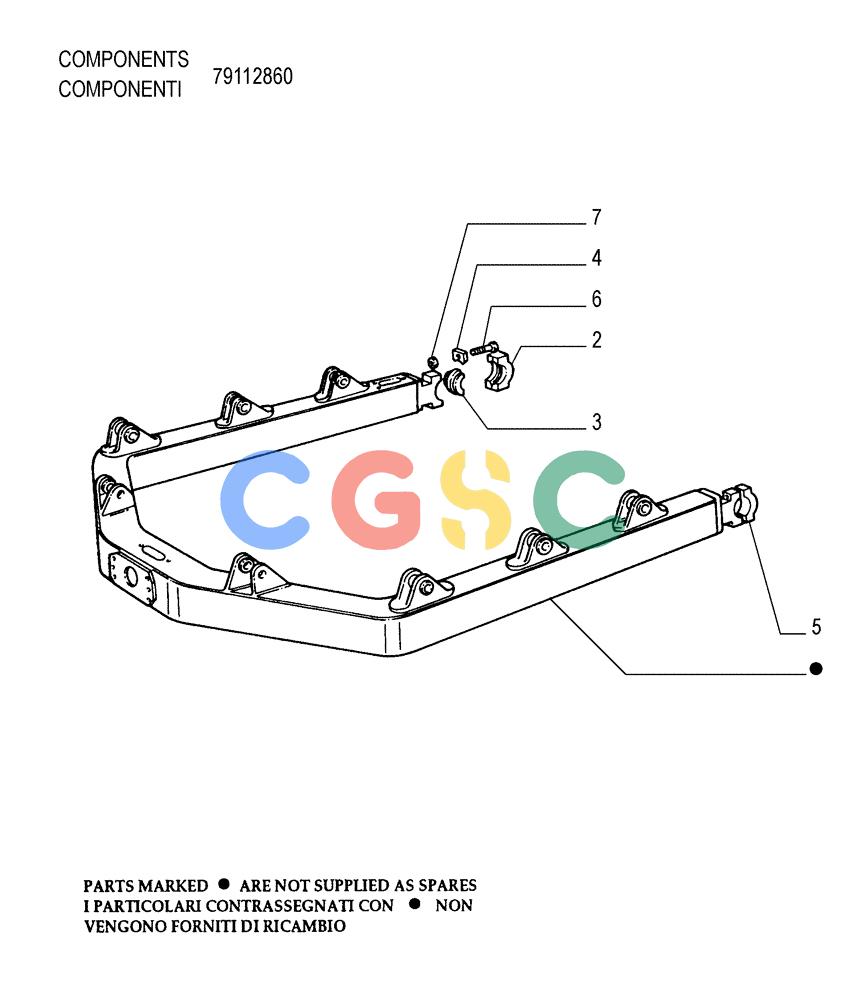

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (9.475[02]) - C-FRAME - HYDRAULIC TILT - OPTIONAL CODE 79114672 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
576 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | 79074406 | [1] | SUPPORT | LEC- RIGHT |
| 3. | 8280908 | [2] | HALF-BUSHING | LEC |
| 4. | 8280915 | [4] | LOCKING PLATE | LEC |
| 5. | 8296138 | [1] | SUPPORT | LEC- LEFT Superseded by part number: 79074406 |
| 6. | 16047131 | [4] | SCREW,M24 x 180mm, Cl 10.9 | LEC24X2X180 Superseded by part number: 16047137 |
| 7. | 12163721 | [4] | NUT,M24, Cl 10 | LEC Superseded by part number: 9848973 |
