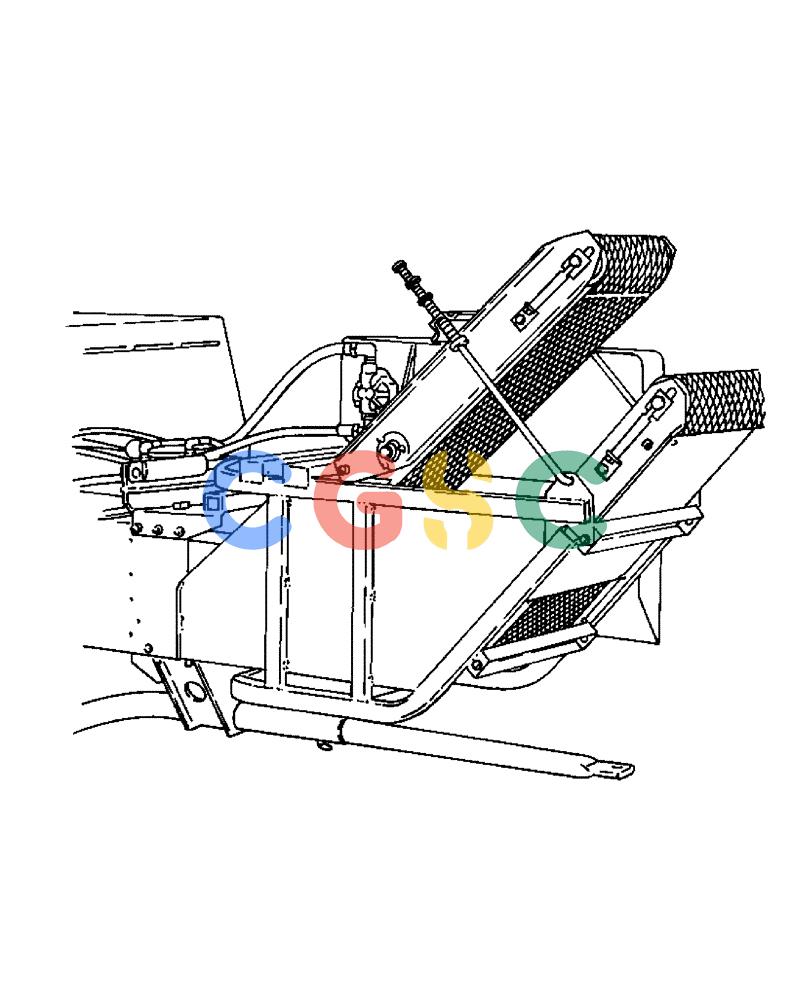

凯斯零件查询(BTX11) - CASE IH BALE THROWER (1/02-) (70.280.20) - DEALER PARTS STOCKING LIST FOR 5 MACHINES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
607 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
26282
|
[1] |
PIN
|
NH
1/2" x 1-1/2"
|
| . . |
48653
|
[2] |
CABLE
|
NH
Steel, Apron Belt
|
| . . |
65391
|
[2] |
BALL BEARING,17 mm ID x 40 mm OD x 12 mm
|
NH
Superseded by part number: 87302841
|
| . . |
86836864
|
[1] |
SPRING
|
NH
|
| . . |
495-11066
|
[1] |
WASHER,5/8", SAE
|
CAS
Superseded by part number: 87365
|
| . . |
163361
|
[1] |
CAP
|
NH
Tank
|
| . . |
86640851
|
[1] |
PULLEY
|
NH
Idler
|
| . . |
86640952
|
[1] |
SPRING
|
NH
Spring
|
| . . |
100-1193
|
[2] |
SNAP RING,#93, Ext
|
CAS
Superseded by part number: 271877
|
| . . |
276397
|
[1] |
NUT
|
NH
Acorn Superseded by part number: 87363684
|
| . . |
276400
|
[1] |
WASHER
|
NH
.031"
|
| . . |
86636724
|
[1] |
IDLER,101.6mm Idler Dia x 115.49mm OD x 37.31mm W
|
NH
|
| . . |
768115
|
[1] |
CIRCUIT BREAKER
|
NH
15 AMP
|
| . . |
768120
|
[1] |
CIRCUIT BREAKER,20A
|
NH
20 AMP
|
| . . |
849233
|
[1] |
PIN
|
NH
|
| . . |
9601394
|
[1] |
BELT,1830.00 mm L
|
NH
Apron
|
| . . |
9613951
|
[1] |
SEAL KIT
|
NH
|
| . . |
9706921
|
[2] |
HOSE CLAMP,12.7mm - 35mm
|
NH
Superseded by part number: 87625624
|
| . . |
9845714
|
[1] |
TOGGLE SWITCH
|
NH
|
| . . |
82012725
|
[2] |
HOSE CLAMP,#44, M32-44
|
NH
Superseded by part number: 82039346
|
| . . |
86000109
|
[1] |
COTTER PIN
|
NH
1/8" x 3-1/4"
|
| . . |
86634492
|
[1] |
V-BELT,0.66" W x 115.00" L
|
NH
|
