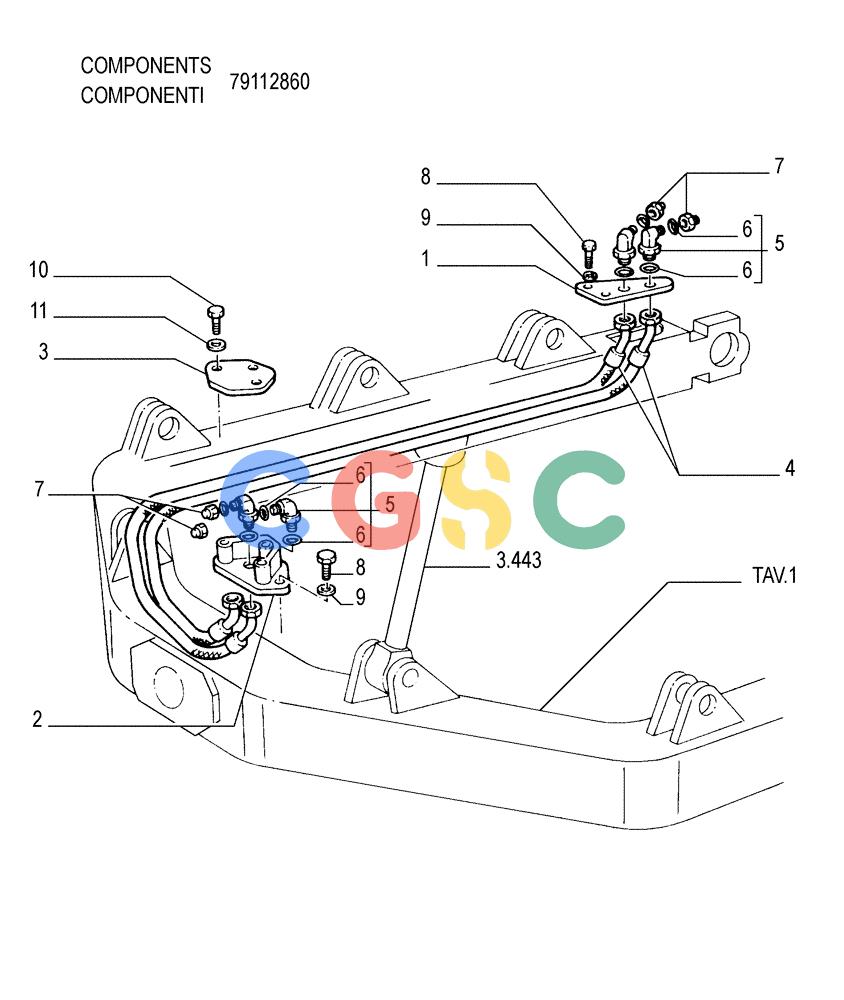

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (9.475[03]) - C-FRAME - HYDRAULIC TILT - OPTIONAL CODE 79114672 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
960 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79101128 | [1] | PLATE | LEC |
| 2. | 79101129 | [1] | GUARD | LEC |
| 3. | 79089841 | [1] | COVER | LEC |
| 4. | 79101132 | [2] | FLEXIBLE HOSE | LEC |
| 5. | 78100065 | [4] | ELBOW | LEC- ASSY |
| 6. | 70923841 | [2] | O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro | LEC Superseded by part number: 9992298 |
| 7. | 78100135 | [4] | PLUG,M12 | LEC |
| 8. | 11112431 | [4] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 9. | 14496731 | [4] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 10. | 11106031 | [3] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9 | LEC |
| 11. | 14496631 | [3] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
