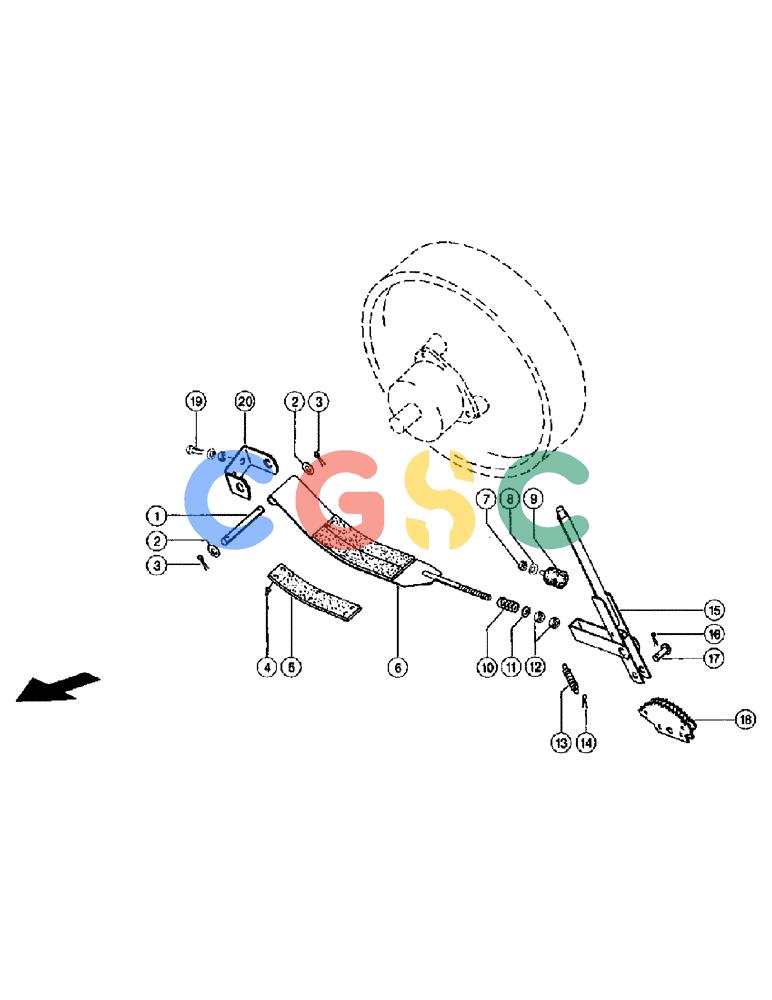

凯斯零件查询(110) - CASE IH QUADROBALE BALER (1/96-12/98) (004) - FLYWHEEL BRAKE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
957 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
6515691
|
[1] |
LARGE PIN
|
R
Pin
|
| 2. |
2342310
|
[2] |
WASHER
|
R
|
| 3. |
732-4028
|
[2] |
COTTER PIN,M4 x 28
|
CAS
Split pin 4 x 28
|
| 4. |
2357680
|
[12] |
RIVET
|
R
A4x15
|
| 5. |
8301480
|
[2] |
BRAKE LINING
|
R
|
| 6. |
8301440
|
[1] |
BRAKE BAND
|
R
|
| 7. |
2381320
|
[1] |
NUT
|
R
Securing nut VM 8 Superseded by part number: 86528579
|
| 8. |
98-029447
|
[1] |
WASHER
|
FO
Contact washer A 8 Superseded by part number: 322358
|
| 9. |
9804640
|
[1] |
STOP
|
R
Buffer bumper
|
| 10. |
8004441
|
[1] |
VALVE SPRING
|
R
Compress.spring
|
| 11. |
2343250
|
[1] |
WASHER
|
R
11 x 21 x3
|
| 12. |
100016
|
[3] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 13. |
5021190
|
[1] |
SPRING
|
R
Tension spring
|
| 15. |
8301670
|
[1] |
BRAKE LEVER
|
R
|
| 16. |
934793R1
|
[1] |
COTTER PIN,M3.2 x 25
|
IH
Split pin 3,2x 22 Superseded by part number: 732-3225
|
| 17. |
2445150
|
[1] |
PIN
|
R
B12H11x 45
|
| 18. |
8301490
|
[1] |
SECTOR
|
R
Toothed segment
|
| 19. |
614-8020
|
[2] |
BOLT,Hex, M8 x 1.25 x 20mm
|
CAS
, Start Serial: 04400025 Superseded by part number: 120104
|
| . . |
43362
|
[2] |
NUT,M8 x 1.25, Cl 10
|
BHB
M8, Cl 10, Start Serial: 04400025
|
| 20. |
8301191
|
[1] |
SUPPORT
|
R
, Start Serial: 04400025
|
