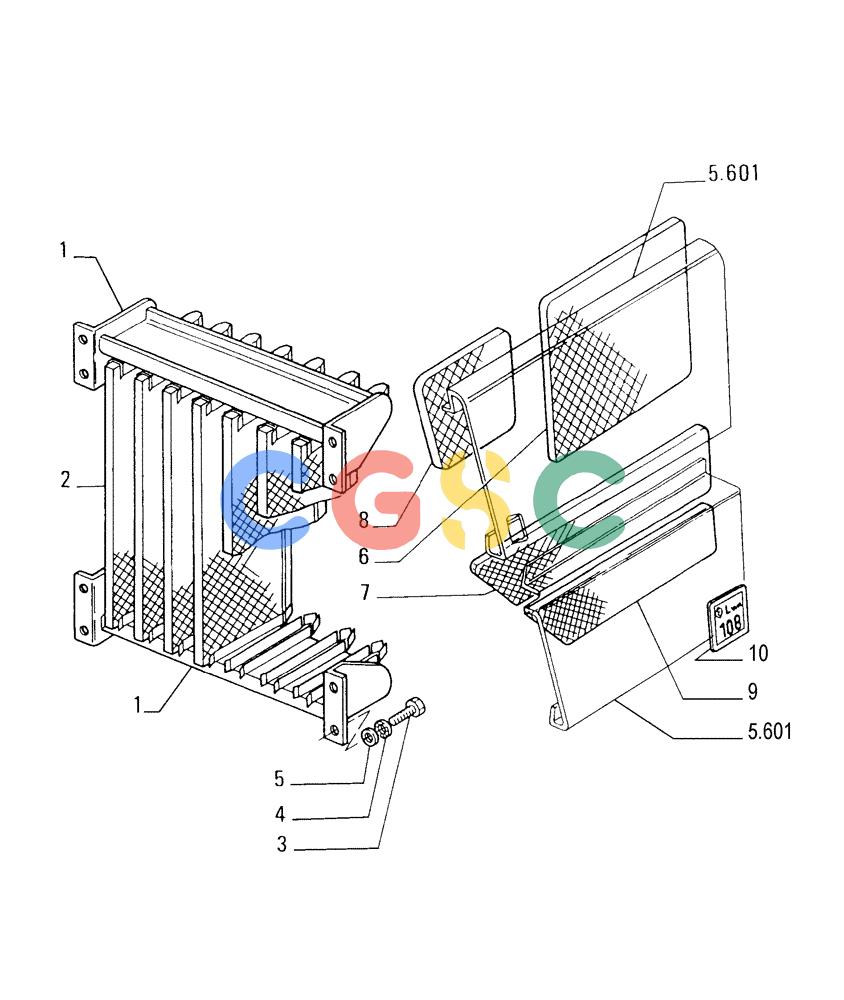

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (9.623[01]) - SOUND SUPPRESSION - OPTIONAL CODE 76028002 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
193 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79113698 | [2] | SUPPORT | LEC |
| 2. | 79102599 | [7] | PANEL | LEC |
| 3. | 11106031 | [8] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9 | LEC |
| 4. | 12626231 | [8] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 5. | 10615779 | [8] | LOCK WASHER,Ext Tooth, M10 | MKT Superseded by part number: 12605671 |
| 6. | 76033179 | [2] | PANEL | LEC- UPPER |
| 7. | 79113753 | [1] | PANEL | LEC- LOWER LEFT |
| 7. | 79113751 | [1] | PANEL | LEC- LOWER RIGHT |
| 8. | 79113749 | [1] | PANEL | LEC- FRONT LEFT |
| 8. | 79113748 | [1] | PANEL | LEC- FRONT RIGHT |
| 9. | 79113752 | [1] | PANEL | LEC- LOWER LEFT |
| 9. | 79113750 | [1] | PANEL | LEC- LOWER RIGHT |
| 10. | 76046329 | [1] | DECAL | LEC |
