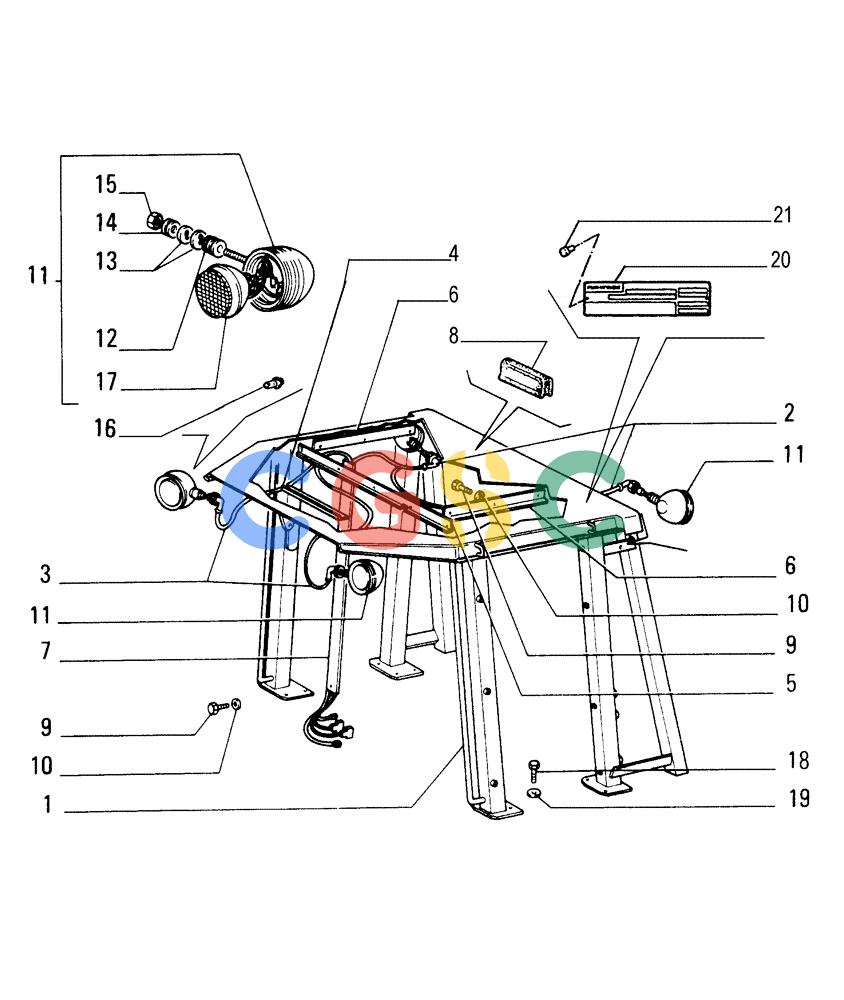

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (9.651[01]) - ROPS CANOPY - OPTIONAL CODE 76029305 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
964 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79106724 | [1] | FRAME | LEC |
| 2. | 79092414 | [1] | ELECTRIC CABLE | LEC |
| 3. | 79092415 | [1] | ELECTRIC CABLE | LEC |
| 4. | 79092416 | [2] | STRAP | LEC |
| 5. | 79092417 | [1] | STRAP | LEC |
| 6. | 79092418 | [2] | STRAP | LEC |
| 7. | 79092419 | [1] | STRAP | LEC |
| 8. | 79092420 | [12] | GASKET | LEC |
| 9. | 13275924 | [20] | SCREW,Pozidriv Pan Hd, M6 x 10mm, Cl 8.8, Full Thd | JES |
| 10. | 14496431 | [20] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 11. | 79102125 | [2] | HEADLAMP | LEC- RIGHT ASSY |
| 11. | 79092952 | [2] | HEADLAMP | TOR- LEFT ASSY |
| 12. | 79109449 | [1] | SPACER | LEC |
| 13. | 79073823 | [2] | PAD | LEC |
| 14. | 79109450 | [1] | WASHER | LEC |
| 15. | 79109451 | [1] | NUT | LEC Superseded by part number: 79073825 |
| 16. | 79069460 | [1] | BULB | LEC Superseded by part number: 14151690 |
| 17. | 79107914 | [1] | LENS | LEC |
| 18. | 15984334 | [12] | BOLT,Hex, M18 x 1.5 x 50mm, Cl 10.9, Full Thd | BAS Superseded by part number: 87536205 |
| 19. | 79005239 | [12] | WASHER,18.8mm ID x 41mm OD x 8mm Thk | LEC |
| 20. | 76029658 | [1] | DECAL | NH |
| 21. | 14641394 | [2] | RIVET | MOD |
