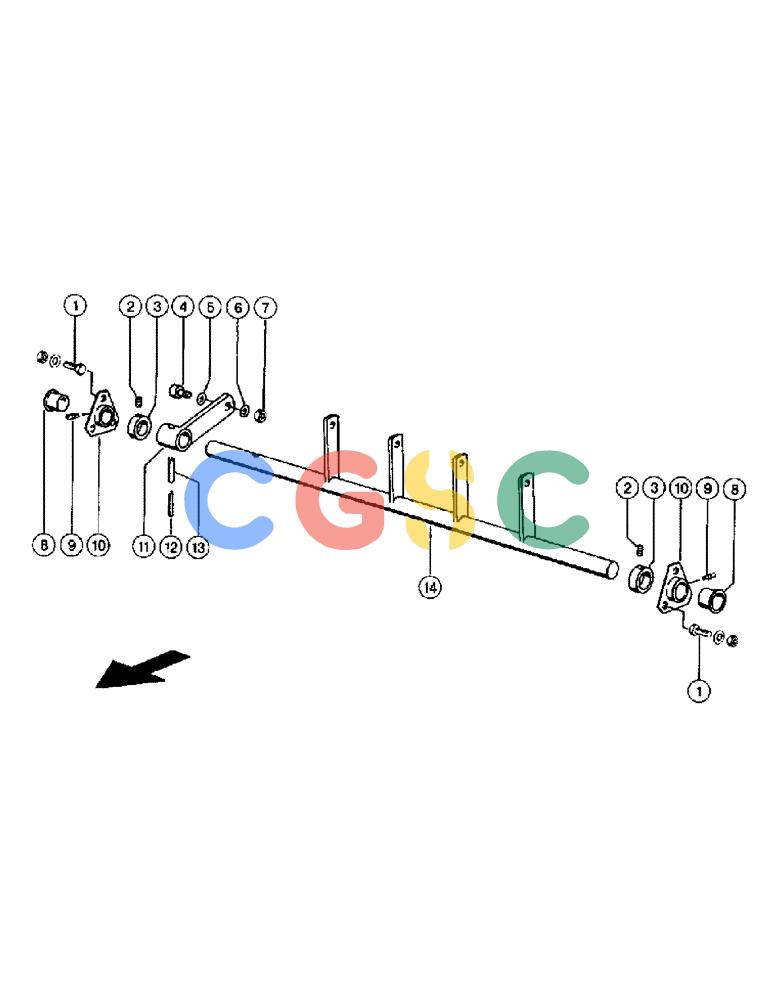

凯斯零件查询(110) - CASE IH QUADROBALE BALER (1/96-12/98) (015) - CONTROL SHAFT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
192 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
614-10025
|
[6] |
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 11106231
|
| . . |
100016
|
[6] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| . . |
98-029441
|
[6] |
WASHER
|
FO
Contact washer A10 Superseded by part number: 140045
|
| 2. |
2365520
|
[2] |
SET SCREW
|
R
Threaded pin M10x 8
|
| 3. |
5034141
|
[2] |
COLLAR
|
R
Adjusting ring
|
| 4. |
2335380
|
[1] |
ROLLER ASSY.
|
R
Curved roller Kr22Pp
|
| 5. |
2369132
|
[1] |
WASHER
|
R
10,5 Superseded by part number: 82848518
|
| 7. |
2378240
|
[1] |
NUT
|
R
Hexagonal nut M10x1
|
| 8. |
0085610
|
[2] |
SPACER
|
R
Bushing
|
| 9. |
2369420
|
[2] |
LUBE NIPPLE,M6 x 1
|
R
Grease nipple As 6x1 Superseded by part number: 321204
|
| 10. |
8121260
|
[2] |
BEARING
|
R
Flang.bearing cpl mit Pos. 8, 9
|
| 11. |
8176660
|
[1] |
LEVER
|
R
ass. mit Pos. 4 - 7
|
| 12. |
932183R1
|
[1] |
LOCK PIN,M5 x 50, Slotted
|
IH
Tensioning pin 5 x 50 Superseded by part number: 84024216
|
| 13. |
838-5850
|
[1] |
LOCK PIN,M8 x 50, Slotted
|
CAS
Tensioning M8 x 50, Slotted Superseded by part number: 412689
|
| 14. |
8302980
|
[1] |
SHAFT ASSY.
|
R
Control shaft
|
