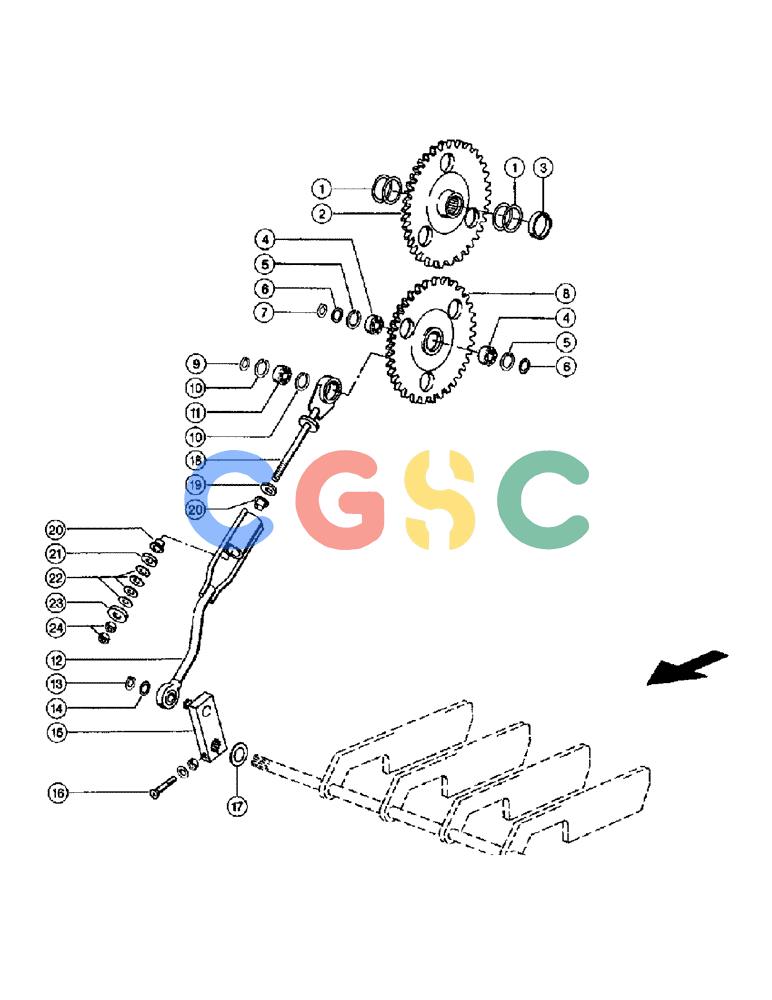

凯斯零件查询(110) - CASE IH QUADROBALE BALER (1/96-12/98) (014[A]) - GRID DRIVE, FROM SERIAL NO. 04400305 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
918 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
2344320
|
[1] |
WASHER
|
R
Shims 50x 62x1
|
| 2. |
8310171
|
[1] |
DRIVE SPROCKET
|
R
Spur gear Z=37 m=8
|
| 3. |
8310331
|
[1] |
SPACER
|
R
Bushing
|
| 4. |
2377130
|
[2] |
BEARING ASSY
|
R
Grvd.ball bearing 6005 2rs Superseded by part number: 24905270
|
| 5. |
2351810
|
[2] |
CLIP
|
R
Circlip 47x1,75 Superseded by part number: 300647
|
| 6. |
2378510
|
[2] |
WASHER
|
R
Shims 25x 35x0,5 Superseded by part number: 97-020473
|
| 7. |
933128R1
|
[1] |
SNAP RING,M25, Ext
|
IH
Circlip 25x1,2 Superseded by part number: 370002
|
| 8. |
8310191
|
[1] |
DRIVE SPROCKET
|
R
Spur gear Z=37 m=8
|
| 9. |
30978R1
|
[1] |
CIRCLIP
|
IH
20x1,75
|
| 11. |
537290R91
|
[1] |
BALL BEARING,20mm ID x 47mm OD x 14mm W
|
IH
Grvd.ball bearing 6204 2rs Superseded by part number: 84330054
|
| 12. |
8310920
|
[1] |
ROD
|
R
Pull rod
|
| 13. |
933123R1
|
[1] |
SNAP RING,M20, Ext
|
IH
Circlip 20x1,2 Superseded by part number: 370024
|
| 14. |
2383120
|
[1] |
WASHER
|
R
Back-up washer S 20x 28
|
| 15. |
8310280
|
[1] |
LEVER
|
R
|
| 16. |
2425191
|
[1] |
SCREW
|
R
Countersunk bolt M10x 60
|
| . . |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| . . |
98-029441
|
[1] |
WASHER
|
FO
Contact washer A10 Superseded by part number: 140045
|
| 17. |
2343070
|
[1] |
WASHER
|
R
2 mm
|
| 18. |
8310890
|
[1] |
ROD
|
R
Pull rod
|
| 19. |
0086400
|
[1] |
WASHER
|
R
|
| 20. |
0085120
|
[2] |
SPACER
|
R
Bushing
|
| 21. |
2389900
|
[1] |
WASHER
|
R
16,5x 33 x5
|
| 22. |
2446020
|
[28] |
WASHER
|
R
Plate spring A 31,5
|
| 23. |
2334880
|
[1] |
WASHER
|
R
|
| 24. |
190003871339
|
[2] |
NUT
|
S
Hex, M16 Superseded by part number: 392530
|
