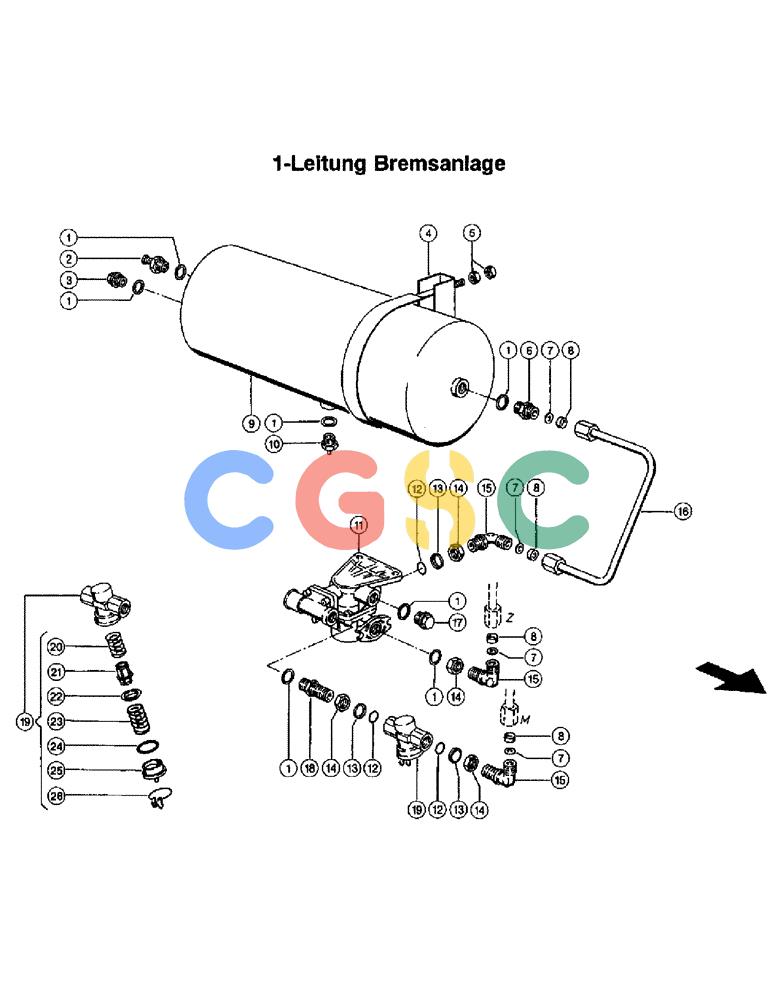

凯斯零件查询(110) - CASE IH QUADROBALE BALER (1/96-12/98) (061) - SINGLE-LINE AIR BRAKE (VAR.9076) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
390 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
6330320
|
[7] |
GASKET
|
R
Seal ring
|
| 2. |
9696440
|
[1] |
UNION
|
R
Connection
|
| 3. |
7665680
|
[1] |
PLUG
|
R
Locking screw Am22x1,5
|
| 4. |
9696451
|
[2] |
FIXING STRIP
|
R
Tightening strap
|
| 5. |
2361720
|
[4] |
NUT
|
R
Hex, M12 Superseded by part number: 337475
|
| 6. |
2116420
|
[1] |
UNION
|
R
Screwing
|
| 7. |
2116460
|
[4] |
GASKET
|
R
Seal ring
|
| 8. |
2116450
|
[4] |
SPACER
|
R
Pressure ring
|
| 9. |
9696420
|
[1] |
AIR TANK
|
R
Tank
|
| 10. |
9696430
|
[1] |
VALVE
|
R
|
| 11. |
8176380
|
[1] |
VALVE
|
R
Brake valve
|
| 12. |
2336670
|
[3] |
GASKET
|
R
O-ring 20,3 x2,4 -N
|
| 13. |
9696590
|
[3] |
SPACER
|
R
Pressure ring
|
| 14. |
2116480
|
[4] |
NUT
|
R
Hexagonal nut
|
| 15. |
2116410
|
[3] |
UNION
|
R
Angle screwing
|
| 16. |
8307580
|
[1] |
PIPE
|
R
Hydr. pipe, Start Serial: 04400305
|
| 16. |
8177060
|
[1] |
PIPE
|
R
Hydr. pipe, Serial Range: -04400304
|
| 18. |
2155080
|
[1] |
UNION
|
R
Double socket
|
| 19. |
9696400
|
[1] |
AIR CLEANER
|
R
Filter
|
| 20. |
9406110
|
[1] |
SPRING
|
R
Compress.spring
|
| 21. |
9406120
|
[1] |
FILTER, ELEMENT
|
R
Filter inset
|
| 22. |
9406100
|
[1] |
SEAT, VALVE
|
R
Valve seat
|
| 23. |
9406130
|
[1] |
SPRING
|
R
Compress.spring
|
| 24. |
2384080
|
[1] |
GASKET
|
R
O-ring 32,9 x3,5 -N
|
| 25. |
9406140
|
[1] |
COVER
|
R
|
| 26. |
9406090
|
[1] |
SPRING
|
R
Hook spring ring
|
