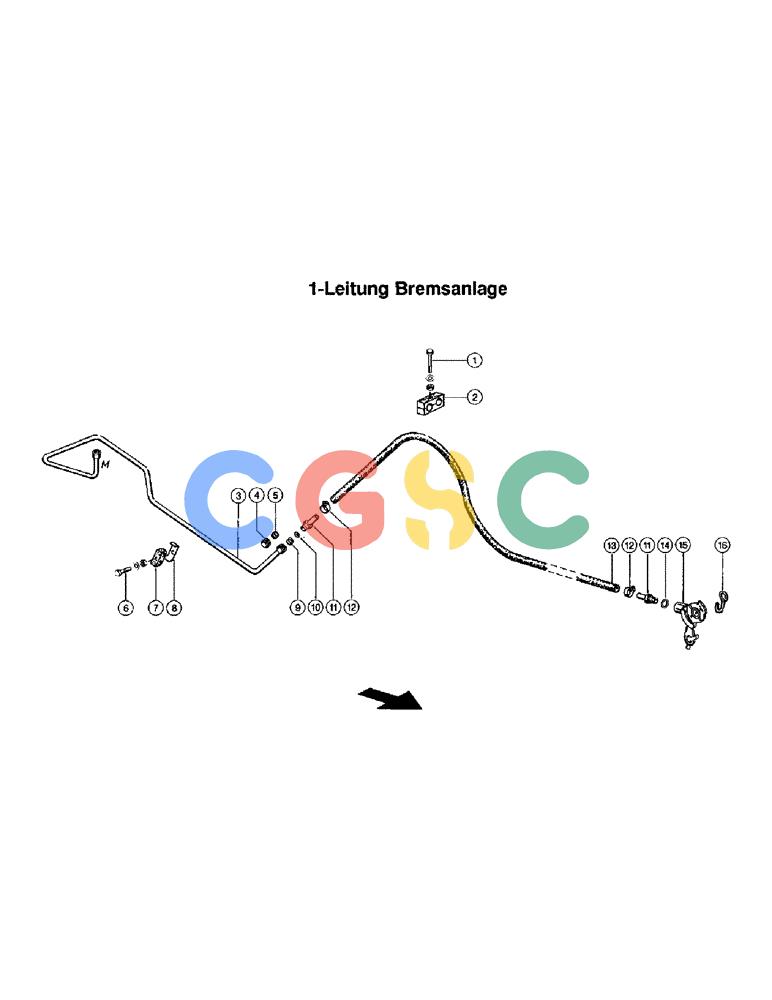

凯斯零件查询(110) - CASE IH QUADROBALE BALER (1/96-12/98) (060) - SINGLE-LINE AIR BRAKE (VAR.9076) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
213 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
814-8085
|
[1] |
BOLT,Hex, M8 x 1.25 x 85mm, Cl 8.8
|
CAS
Superseded by part number: 16044924
|
| . . |
2381320
|
[1] |
NUT
|
R
Securing nut VM 8 Superseded by part number: 86528579
|
| . . |
98-029447
|
[1] |
WASHER
|
FO
Contact washer A 8 Superseded by part number: 322358
|
| 2. |
6890600
|
[1] |
COLLAR CLAMP
|
R
Double clamp
|
| 3. |
R8304780
|
[1] |
PIPE
|
R
Hydr. pipe
|
| 4. |
2116440
|
[1] |
NUT
|
R
Overthrow nut
|
| 5. |
6335901
|
[1] |
OLIVE
|
R
Nipple
|
| 6. |
814-8045
|
[2] |
BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8
|
CAS
Superseded by part number: 16044124
|
| 7. |
6071100
|
[2] |
SHIN
|
R
Rubber bearing
|
| 8. |
6722090
|
[2] |
CLAMP
|
R
Attaching clamp
|
| 9. |
2116450
|
[2] |
SPACER
|
R
Pressure ring
|
| 10. |
2116460
|
[2] |
GASKET
|
R
Seal ring
|
| 11. |
2116400
|
[2] |
UNION
|
R
Hose support
|
| 12. |
2116490
|
[2] |
COLLAR CLAMP
|
R
Hose clamp
|
| 13. |
9695660
|
[1] |
HOSE
|
R
Brake hose
|
| 14. |
6330320
|
[1] |
GASKET
|
R
Seal ring
|
| 15. |
8175820
|
[1] |
FITTING
|
R
Coupling head
|
| 16. |
5030570
|
[1] |
HOOK
|
R
|
