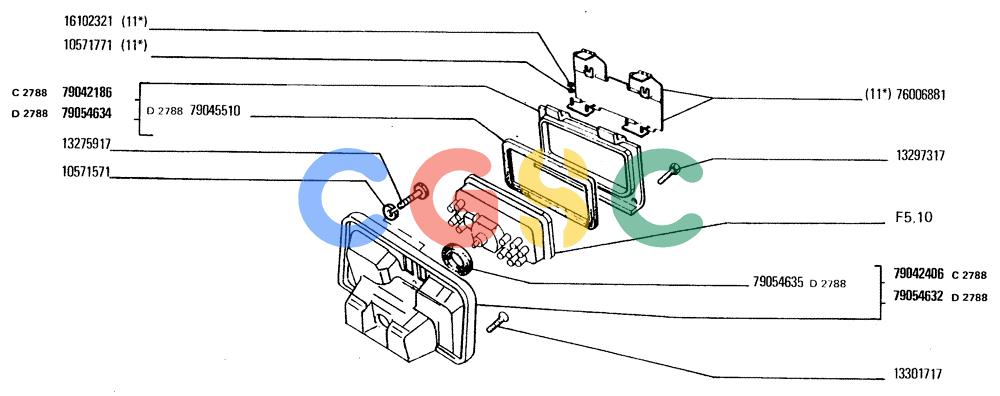

纽荷兰零件查询(FD20) - CRAWLER DOZER (L1.01[005]) - HOOD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
409 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 10571571. | 10571571 | [2] | LOCK WASHER,M6 | TTFLOCKWASHER Superseded by part number: 10516471 |
| 10571771. | 10571771 | [4] | LOCK WASHER,M8 | CASLOCKWASHER Superseded by part number: 83990583 |
| 13275917. | 13275917 | [2] | SCREW,Pozidriv Pan Hd, M6 x 10mm, Cl 5.8, Full Thd | LEC Superseded by part number: 10376411 |
| 13297317. | 13297317 | [2] | SCREW,M4 x 10mm | LEC Superseded by part number: 13271901 |
| 13301717. | 13301717 | [6] | SCREW,Pozidriv Flat Hd, Csk, M6 x 25mm, Cl 5.8 | BHB |
| 16102321. | 16102321 | [4] | THIN NUT,Thin, M8 x 1.25, Cl 05 | TTF Superseded by part number: 103889 |
| 76006881. | 76006881 | [1] | COVER | LEC |
| 79042186. | 79042186 | [1] | BEZEL | LECBEZEL |
| 79042406. | 79042406 | [1] | INSTRUMENT PANEL | LEC |
| 79045510. | 79045510 | [1] | GASKET,10mm W x 780mm L x 3mm Thk | LECLINING |
| 79054632. | 79054632 | [1] | INSTRUMENT PANEL | LEC Superseded by part number: 79054635, 79042406 |
| 79054634. | 79054634 | [1] | CAPPING | LECBEZEL Superseded by part number: 79042186, 79045510 |
| 79054635. | 79054635 | [1] | GASKET | LECLINING |
