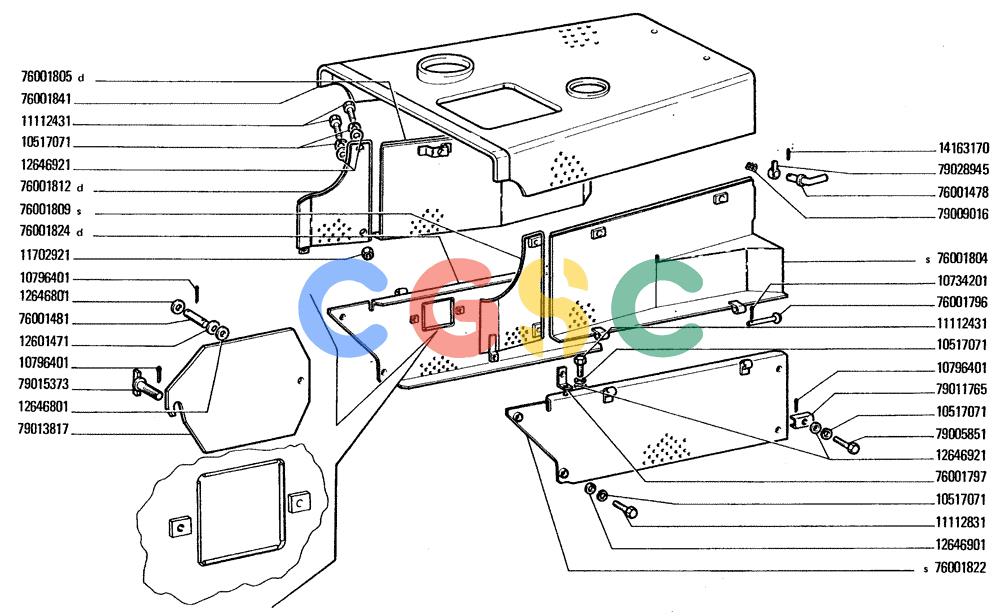

纽荷兰零件查询(FD20) - CRAWLER DOZER (L1.01[006]) - HOOD ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
661 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 10517071. | 10517071 | [14] | LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk | HFILOCKWASHER Superseded by part number: 10517073 |
| 10734201. | 10734201 | [4] | COTTER PIN,M2 x 12 | TTFPIN, SPLIT (COTTER), M2 x 12 Superseded by part number: |
| 10796401. | 10796401 | [8] | COTTER PIN,M3.2 x 18 | TTFSPLIT PIN Superseded by part number: |
| 11112431. | 11112431 | [6] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 11112831. | 11112831 | [4] | SCREW,Hex, M12 x 40mm, Cl 10.9, Full Thd | LEC Superseded by part number: 11125434 |
| 11702921. | 11702921 | [2] | NUT,M12, Cl 10 | LEC Superseded by part number: 17038425 |
| 12601471. | 12601471 | [1] | WAVE WASHER | IMOLOCKWASHER Superseded by part number: 17800574 |
| 12646801. | 12646824 | [2] | WASHER,10.2mm ID x 25mm OD x 2mm Thk | TTF |
| 12646901. | 12646901 | [4] | WASHER | MKT Superseded by part number: 16887624 |
| 12646921. | 12646921 | [14] | WASHER,12.2mm ID x 28mm OD x 3mm Thk | BHB Superseded by part number: 16887624 |
| 14163170. | 14163170 | [4] | LOCK PIN,M4 x 24, Slotted | TTFPIN, LOCK, M4 x 24, Slotted Superseded by part number: 73172188 |
| 76001478. | 76001478 | [4] | HANDLE | LEC |
| 76001481. | 76001481 | [1] | PIN | LEC |
| 76001796. | 76001796 | [4] | PIN | LECEND PLATE |
| 76001797. | 76001797 | [2] | BRACKET | LEC |
| 76001804. | 76001804 | [1] | SIDE PANEL | LEC |
| 76001805. | 76001805 | [1] | SIDE PANEL | LEC |
| 76001809. | 76001809 | [1] | PANEL | LECSIDE PANEL |
| 76001812. | 76001812 | [1] | SIDE PANEL | LEC |
| 76001822. | 76001822 | [1] | PANEL | LECSIDE PANEL |
| 76001824. | 76001824 | [1] | SIDE PANEL | LEC |
| 76001841. | 76001841 | [1] | COWLING | LECCOWL |
| 79005851. | 79005851 | [4] | BOLT,Hex, M12 x 1.75 x 32mm | LEC |
| 79009016. | 79009016 | [4] | SPRING | MOD |
| 79011765. | 79011765 | [4] | U-BOLT | LECRETAINER |
| 79013817. | 79013817 | [1] | COVER | LEC |
| 79015373. | 79015373 | [1] | KNOB | MOD Superseded by part number: 75269310 |
| 79028945. | 79028945 | [4] | LEVER | LEC |
