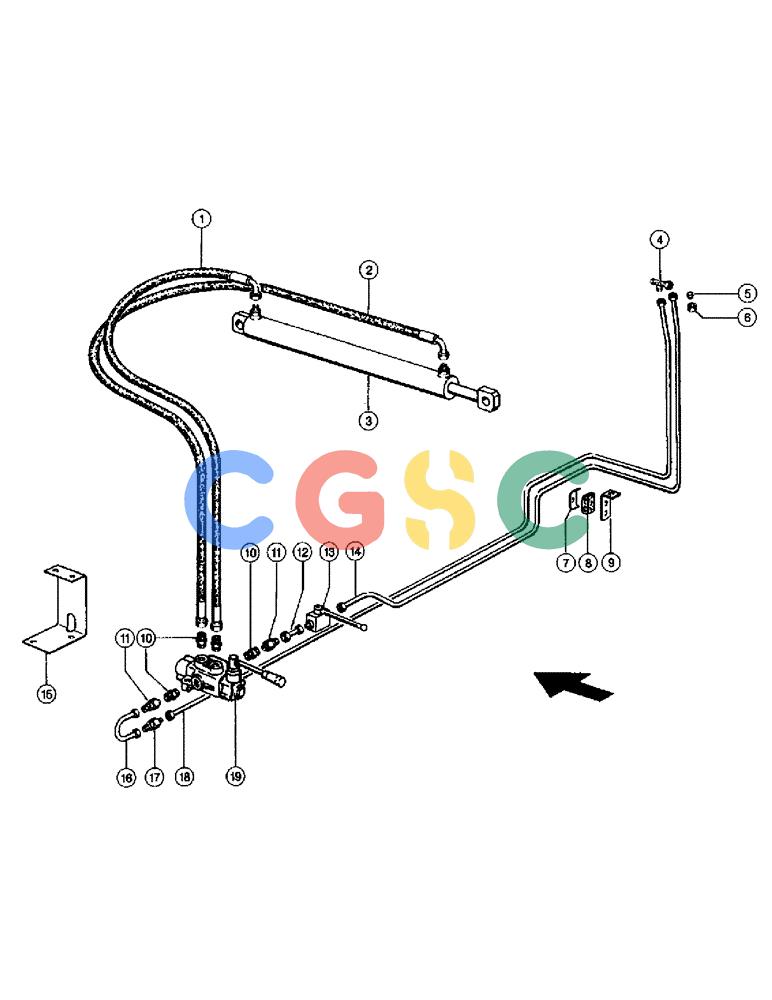

凯斯零件查询(110) - CASE IH QUADROBALE BALER (1/96-12/98) (072) - HYDRAULIC LINES (VAR.9048), BALE EJECTOR Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
798 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
8310470
|
[1] |
HOSE
|
R
pipe
|
| 2. |
8310490
|
[1] |
HOSE
|
R
pipe
|
| 3. |
8310430
|
[1] |
CYLINDER ASSY.
|
R
Hydr. cylinder
|
| 4. |
190003551202
|
[2] |
FITTING
|
S
L union L 8
|
| 5. |
4060821
|
[1] |
OLIVE
|
R
Nipple
|
| 6. |
7507841
|
[1] |
NUT
|
R
Overthrow nut
|
| 7. |
6832540
|
[1] |
COLLAR CLAMP
|
R
Attaching clamp
|
| 8. |
6836580
|
[1] |
SHIN
|
R
Rubber bearing
|
| 9. |
7138451
|
[1] |
SUPPORT
|
R
angle 25x5x130
|
| 10. |
2383650
|
[4] |
UNION
|
R
Screw-in union S12B-G
|
| 11. |
2113310
|
[2] |
UNION
|
R
Reducing adapter
|
| 12. |
723298.1
|
[1] |
Hydr. pipe
|
|
| 13. |
6978010
|
[1] |
COCK
|
R
Ball-type tap
|
| 14. |
8307440
|
[1] |
PIPE
|
R
Hydr. pipe
|
| 15. |
8307271
|
[1] |
SUPPORT
|
R
Angle
|
| 16. |
8307460
|
[1] |
PIPE
|
R
Hydr. pipe
|
| 17. |
2153460
|
[1] |
VALVE
|
R
Non-return valve
|
| 18. |
8307420
|
[1] |
PIPE
|
R
Hydr. pipe
|
| 19. |
8177550
|
[1] |
VALVE
|
R
Control valve
|
