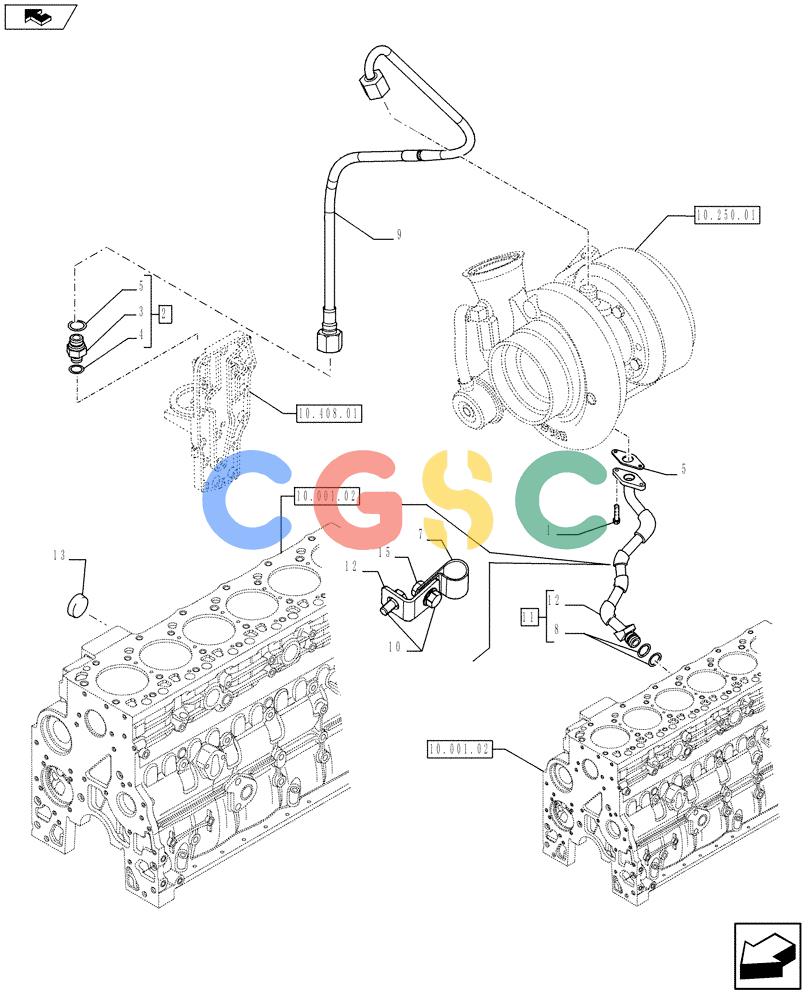

神钢零件查询(F4HFE613F E002) - ENGINE 5801398290 - 84359534 (1/12-) (10.304.05) - PIPING - ENGINE OIL (504367798) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
1006 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899079 | [2] | SCREW,Hex Flg, M8 x 1.25 x 25 | TOR |
| 2. | 2857015 | [1] | HYD CONNECTOR,Hex, M12 x 1.5 x 6.7mm ID x 32mm L | TORASSY Superseded by part number: |
| 3. | 2857015 | [1] | HYD CONNECTOR,Hex, M12 x 1.5 x 6.7mm ID x 32mm L | TOR Superseded by part number: |
| 4. | 4895610 | [1] | O-RING,2.2mm Thk x 9.3mm ID | TOR |
| 5. | 4899108 | [1] | O-RING,0.364mm ID x 0.07mm Width | TOR Superseded by part number: 17277981 |
| 6. | 4891288 | [1] | GASKET,0.8mm Thk | TOR |
| 7. | 4896893 | [1] | CLAMP,20mm W | TOR |
| 8. | 4899058 | [2] | O-RING,0.674" ID x 0.88" OD x 0.103" | TOR Superseded by part number: 17281881 |
| 9. | 84351985 | [1] | FLEXIBLE HOSE | FAR Superseded by part number: |
| 10. | 16586224 | [1] | SCREW,Hex Flg, M8 x 1.25 x 16mm, Cl 8.8 | TORM8 x 16 Superseded by part number: 16586225 |
| 11. | 84351986 | [1] | PIPE | BRRASSY Superseded by part number: |
| 12. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 13. | 4895089 | [1] | PLUG,0.886" L | TOR |
| 14. | 2852390 | [1] | BRACKET | TOR Superseded by part number: 98459285 |
| 15. | 2852389 | [1] | FLANGE NUT | TOR Superseded by part number: 17044725 |
