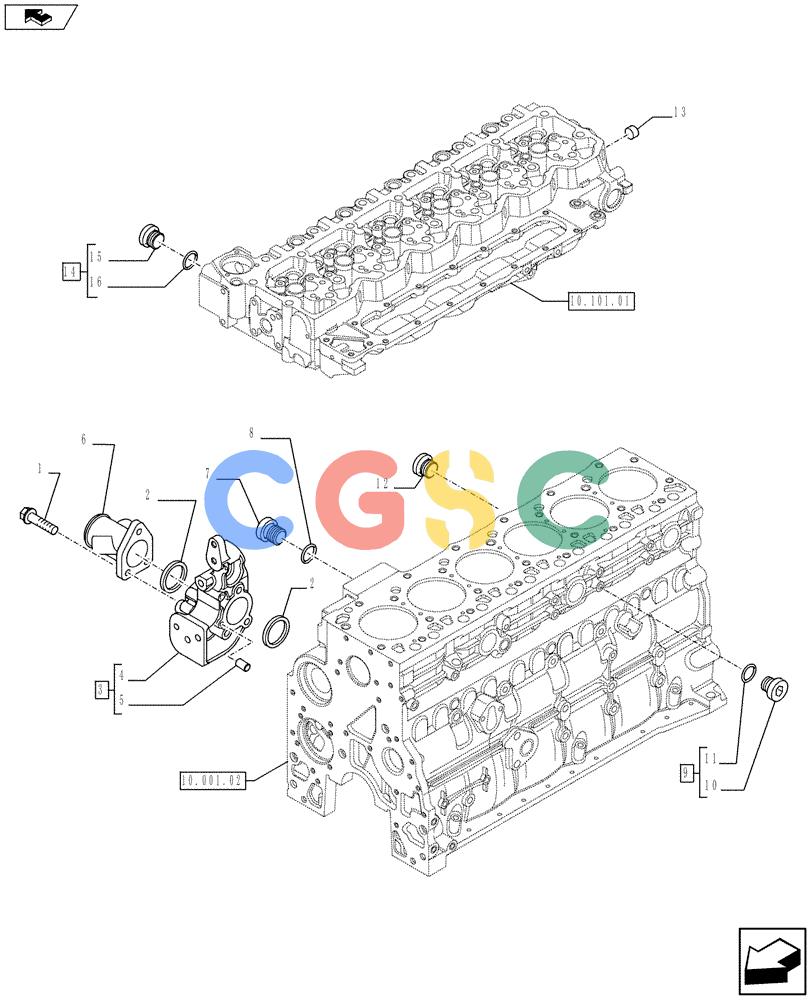

神钢零件查询(F4HFE613F E002) - ENGINE 5801398290 - 84359534 (1/12-) (10.402.01[01]) - PIPING - ENGINE COOLING SYSTEM (504199747 - 504041829 - 504259533) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
555 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852325 | [3] | SCREW | TOR Superseded by part number: 16592925 |
| 2. | 2854072 | [2] | SEALING RING,Square, 5.16mm Thk x 50.17mm ID | TOR Superseded by part number: 504062710 |
| 3. | 2852392 | [1] | SUPPORT | TORASSY Superseded by part number: 500387647 |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 5. | 98405182 | [2] | DOWEL | TOR |
| 8. | 4899824 | [2] | SEALING WASHER,18.2mm ID x 21.9mm OD x 1.5mm Thk | TOR Superseded by part number: 16508360 |
| 9. | 4895623 | [1] | HEX SOCKET PLUG,M16 x 1.5 | TORASSY |
| 11. | 4895625 | [1] | O-RING,13.3mm ID x 2.2mm Width | TOR Superseded by part number: 17281681 |
| 12. | 4895392 | [1] | HEX SOCKET PLUG,M18 x 1.5 | TOR |
| 13. | 4893036 | [1] | PIPE PLUG,3/4"-14 NPTF | TOR Superseded by part number: 2854866 |
| 14. | 4895080 | [1] | HEX SOCKET PLUG,M22 x 1.5 | TORASSY |
| 16. | 2854072 | [1] | SEALING RING,Square, 5.16mm Thk x 50.17mm ID | TOR Superseded by part number: 504062710 |
