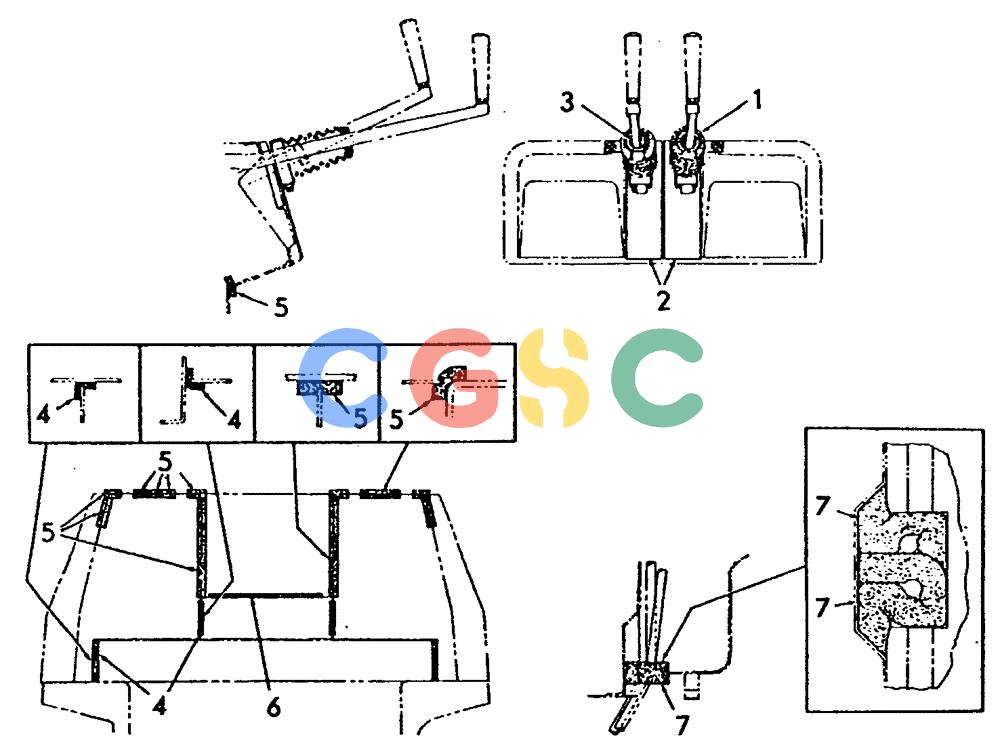

纽荷兰零件查询(FD20) - CRAWLER DOZER (L1.01/2[002]) - SEAL GROUP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
522 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 70623195 | [2] | BOOT | CMISTEERING LEVER |
| 1. | 70921912 | [2] | HOSE CLAMP | CMICLAMP, 1-1/6"" TO 2"" DIAM. Superseded by part number: 13000690 |
| 1. | 70921914 | [2] | CLAMP | BHB2-5/16"" TO 3-1/4"" DIAM. Superseded by part number: 13000990 |
| 2. | 73130096 | [1] | PLATE | CMIRIGHT Superseded by part number: 73151560 |
| 2. | 73130095 | [1] | PLATE | CMILEFT Superseded by part number: 73151560 |
| 3. | 73130094 | [4] | RING | CMISEAL, STEERING LEVER Superseded by part number: 70923510 |
| 8. | 73133938 | [1] | RING | CMISEAL (25 FT.) (USE AS REQUIRED) |
| 9. | 73133939 | [1] | RING | CMISEAL (25 FT.) (USE AS REQUIRED) |
| 10. | 73133940 | [1] | RING | CMISEAL (25 FT.) (USE AS REQUIRED) |
| 11. | 73133115 | [1] | RING | CMISEAL (25 FT.) (USE AS REQUIRED) |
