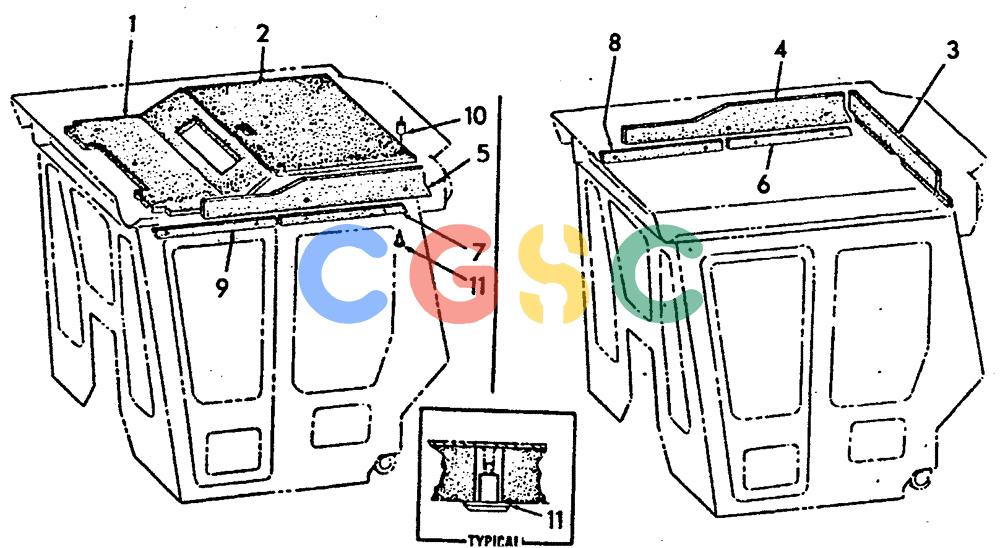

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 73133918 | [1] | FOAM INSULATION | NHINSULATION, FRONT |
| 2. | 73133919 | [1] | FOAM INSULATION | NHINSULATION, REAR |
| 3. | 73133917 | [1] | FOAM INSULATION | NHINSULATION |
| 4. | 73133894 | [1] | SPARE PART | NHINSULATION, RIGHT SIDE, TOP |
| 5. | 73133893 | [1] | SPARE PART | NHINSULATION, LEFT SIDE, TOP |
| 6. | 73133892 | [1] | SPARE PART | NHINSULATION, RIGHT SIDE, OVER WINDOW |
| 7. | 73133891 | [1] | SPARE PART | NHINSULATION, LEFT SIDE, OVER WINDOW |
| 8. | 73133890 | [1] | SPARE PART | NHINSULATION, RIGHT SIDE, OVER DOOR |
| 9. | 73133889 | [1] | SPARE PART | NHINSULATION, LEFT SIDE, OVER DOOR |
| 10. | 73133922 | [6] | SPACER | NHREAR INSULATION |
| 11. | 73063488 | [31] | CLIP | CMIBUTTON |
