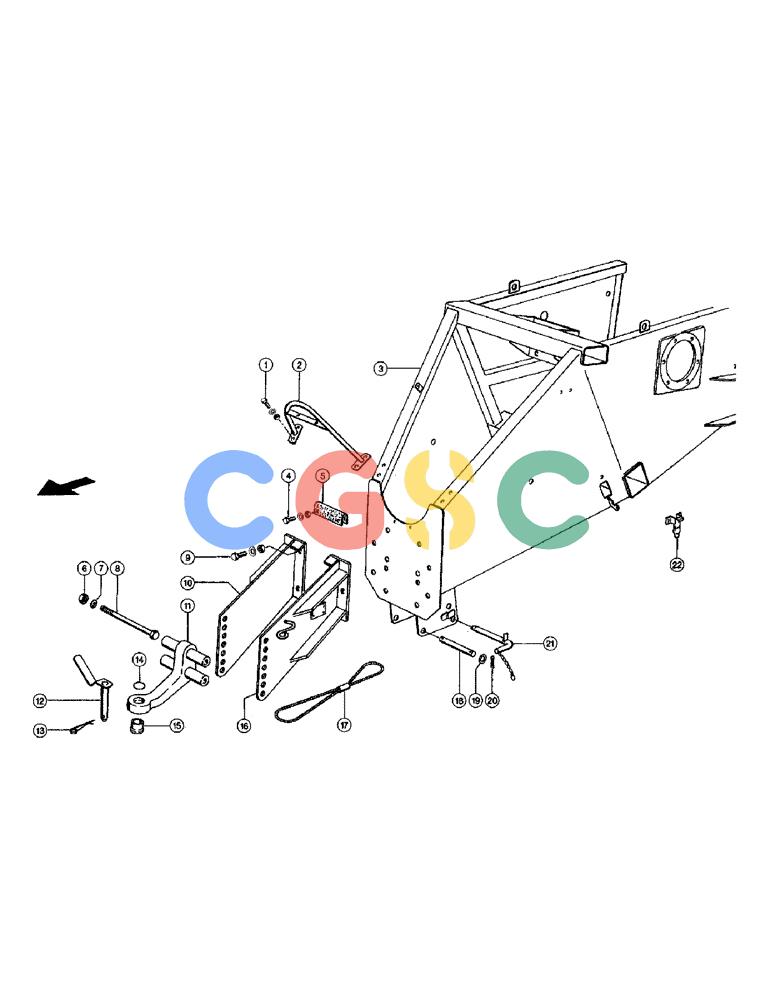

凯斯零件查询(110) - CASE IH QUADROBALE BALER (1/96-12/98) (033) - DRAWBAR Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
786 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
614-8020
|
[4] |
BOLT,Hex, M8 x 1.25 x 20mm
|
CAS
Superseded by part number: 120104
|
| . . |
43362
|
[4] |
NUT,M8 x 1.25, Cl 10
|
BHB
M8, Cl 10
|
| . . |
98-029447
|
[4] |
WASHER
|
FO
Contact washer A 8 Superseded by part number: 322358
|
| 2. |
8301360
|
[1] |
STIRRUP
|
R
Bracket
|
| 3. |
8301013
|
[1] |
FRAME
|
R
Drawbar framework
|
| 4. |
614-10030
|
[2] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
|
IH
Hex, M10 x 30; 8.8 Superseded by part number: 43140
|
| . . |
100016
|
[2] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| . . |
98-029441
|
[4] |
WASHER
|
FO
Contact washer A10 Superseded by part number: 140045
|
| 5. |
8301420
|
[1] |
GUARD
|
R
|
| 6. |
2375210
|
[2] |
NUT
|
R
Hexagonal nut M20
|
| 7. |
2351371
|
[2] |
WASHER
|
R
Safety ring 20
|
| 8. |
2156160
|
[2] |
SCREW
|
R
Hexagonal screw M 20x300
|
| 9. |
614-16045
|
[6] |
BOLT,Hex, M16 x 2 x 45mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 385922
|
| . . |
2380470
|
[6] |
NUT
|
R
Securing nut Vm16
|
| . . |
2393910
|
[6] |
WASHER
|
R
Contact washer A16
|
| 10. |
NLS
|
[1] |
NO LONGER SERVICED
|
BAS
Pole end
|
| 11. |
R8301384
|
[1] |
LIFTING EYE
|
R
Draw bar eye mit Pos. 14, 15
|
| 12. |
8136630
|
[1] |
PIN
|
R
|
| 13. |
5221650
|
[1] |
GRIP
|
R
Att.clip spring
|
| 14. |
2392720
|
[1] |
RING, SNAP
|
R
Snap ring A 50
|
| 15. |
8249252
|
[1] |
SPACER
|
R
Bushing, - 33 mm Bohrung
|
| 15. |
8301411
|
[1] |
SPACER
|
R
Bushing, - 33 mm Bohrung
|
| 15. |
8260720
|
[1] |
SPACER
|
R
Bushing, - 40 mm Bohrung
|
| 15. |
8307340
|
[1] |
SPACER
|
R
Bushing, - 40 mm Bohrung
|
| 17. |
9315550
|
[1] |
CABLE
|
R
Safety rope
|
| 18. |
8161851
|
[1] |
PIN
|
R
|
| 19. |
2342990
|
[2] |
WASHER
|
R
|
| 20. |
732-5032
|
[2] |
COTTER PIN,M5 x 32
|
CAS
Split pin 5 x 32
|
| 21. |
8161911
|
[1] |
HANDLE
|
R
Plug
|
| 22. |
9696480
|
[2] |
SUPPORT
|
R
Holder
|
