纽荷兰零件查询(FD20) - CRAWLER DOZER (L1.04[002A]) - DOOR ASSEMBLY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
918 次

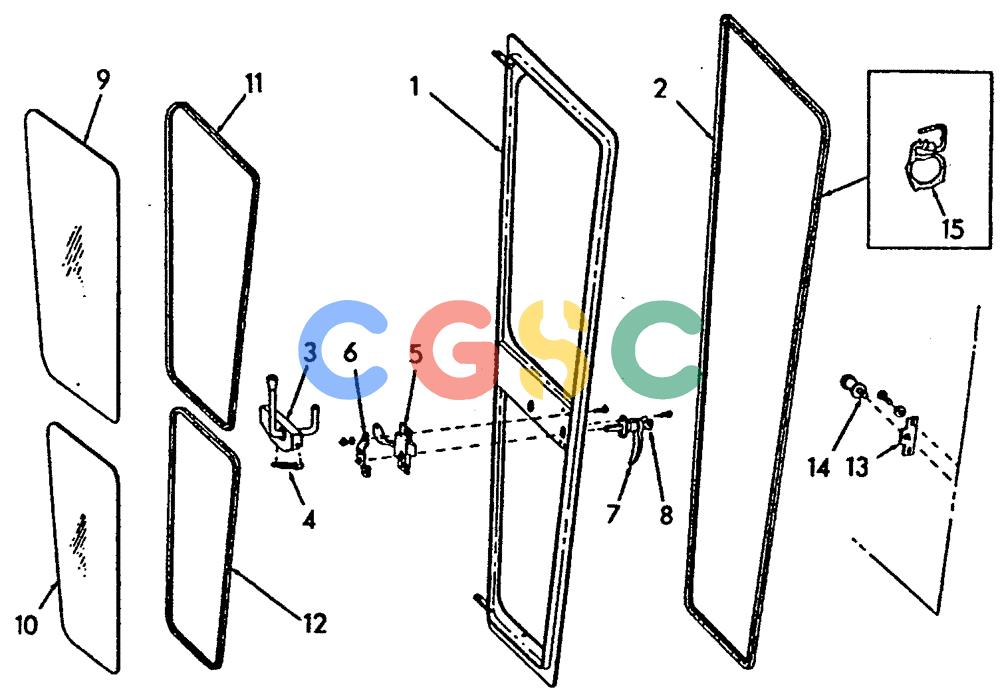

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 73133874 | [1] | DOOR | NHASSY., LEFT (INCLUDES ITEMS 1 THRU 12) Superseded by part number: 73143083 |
| 1. | 73133875 | [1] | DOOR | NHASSY., RIGHT (INCLUDES ITEMS 1 THRU 12) Superseded by part number: 73143084 |
| 3. | 73124267 | [1] | LEVER | CMIHOLDBACK ASSY., LEFT (INCLUDES SPRING) (REQUIRES WELDING TO INSTALL) |
| 3. | 73124268 | [1] | LEVER | CMIHOLDBACK ASSY., RIGHT (INCLUDES SPRING) (REQUIRES WELDING TO INSTALL) |
| 4. | 70696284 | [1] | SPRING | CMI |
| 4. | 70696237 | [1] | LOCK | CMILATCH, LEFT |
| 4. | 70696238 | [1] | LOCK | CMILATCH, RIGHT |
| 4. | 70927340 | [8] | SCREW | CMICAPSCREW, 1/4"" NC x 3/4"" Superseded by part number: 281032 |
| 4. | 70904204 | [8] | LOCK WASHER | CMILOCKWASHER, 1/4"" Superseded by part number: 80682 |
| 4. | 70900365 | [8] | NUT | BHB1/4"" NC |
| 6. | 70696239 | [2] | BRACKET | CMIRETAINER, LATCH |
| 7. | 70696240 | [2] | HANDLE | CMI(INCLUDES ITEM 8) |
| 7. | 70696241 | [4] | SCREW | CMI |
| 8. | 73075836 | [1] | KIT | BHBKEY Superseded by part number: 73061191 |
| 13. | 73137760 | [2] | PLATE | CMISTRIKER |
| 13. | 70920582 | [4] | SCREW | BHBCAPSCREW, 1/2"" NC x 1-1/4"" Superseded by part number: 280853 |
| 13. | 70926192 | [4] | WASHER | CMI |
| 14. | 73137759 | [2] | PIN | CMILATCH |
| 15. | 73108330 | [1] | WEATHERSTRIP | NHSEAL, DOOR, BULK (USE AS REQUIRED) Superseded by part number: 70696289 |
| 16. | 73133864 | [1] | GASKET | CMISEAL, GLASS (25' ROOL) (USE AS REQUIRED) |
