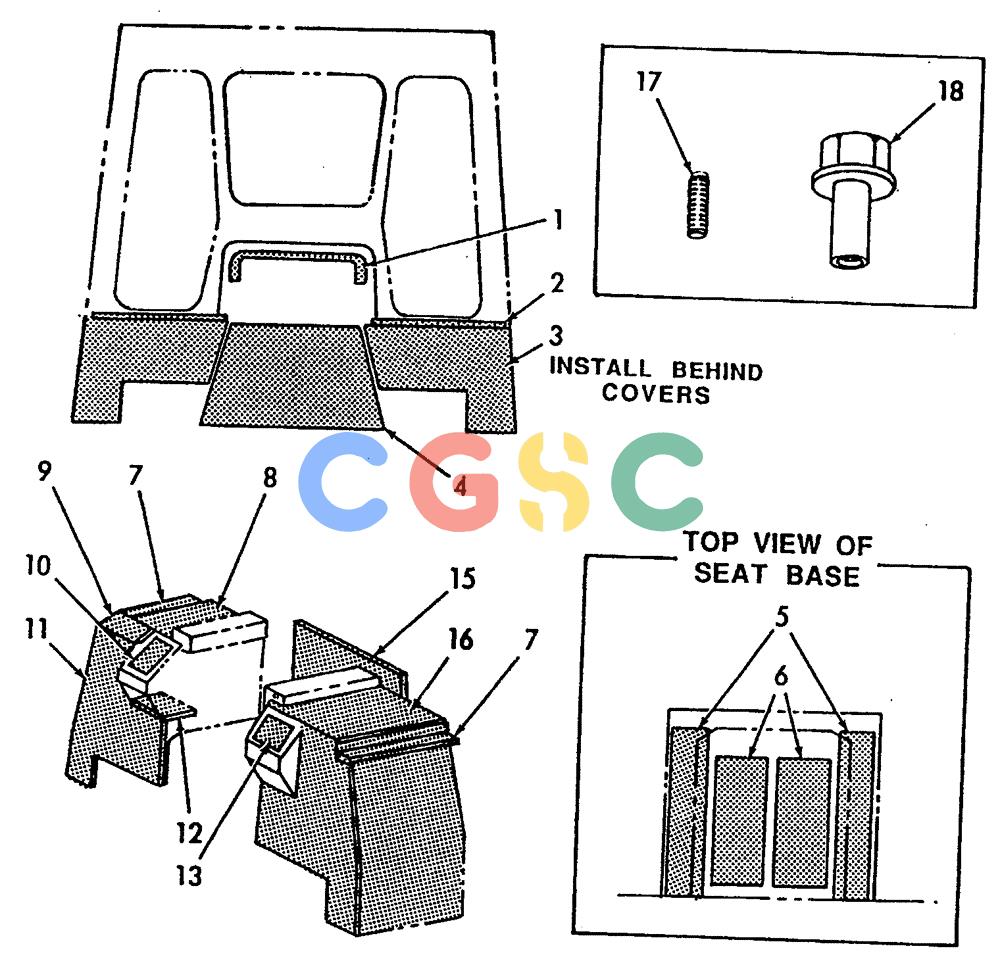

纽荷兰零件查询(FD20) - CRAWLER DOZER (L1.04/1[001]) - SOUND SUPPRESSION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
350 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 73299408 | [1] | PANEL | NHACOUSTIC PANEL |
| 2. | 73299400 | [2] | PANEL | NHACOUSTIC PANEL |
| 3. | 73299904 | [2] | INSULATING PANEL | NHBARRIER |
| 4. | 73299399 | [1] | PANEL | NHACOUSTIC PANEL |
| 5. | 73299903 | [2] | PAD | NH |
| 6. | 73299902 | [2] | PAD | NH |
| 7. | 73299404 | [2] | PANEL | NHACOUSTIC PANEL |
| 8. | 73299401 | [1] | PANEL | NHACOUSTIC PANEL |
| 9. | 73299405 | [1] | PANEL | NHACOUSTIC PANEL |
| 10. | 73299513 | [1] | INSULATING PANEL | NHBARRIER |
| 11. | 73299407 | [1] | PANEL | NHACOUSTIC PANEL |
| 12. | 73299498 | [1] | PANEL | NHACOUSTIC PANEL |
| 13. | 73299523 | [1] | INSULATING PANEL | NHBARRIER |
| 14. | 73299406 | [1] | PANEL | NHACOUSTIC PANEL |
| 15. | 73299403 | [1] | PANEL | NHACOUSTIC PANEL |
| 16. | 73299402 | [1] | PANEL | NHACOUSTIC PANEL |
| 17. | 70690031 | [50] | STUD | CMI |
| 18. | 73145960 | [50] | BUTTON | CMIFASTENERS |
