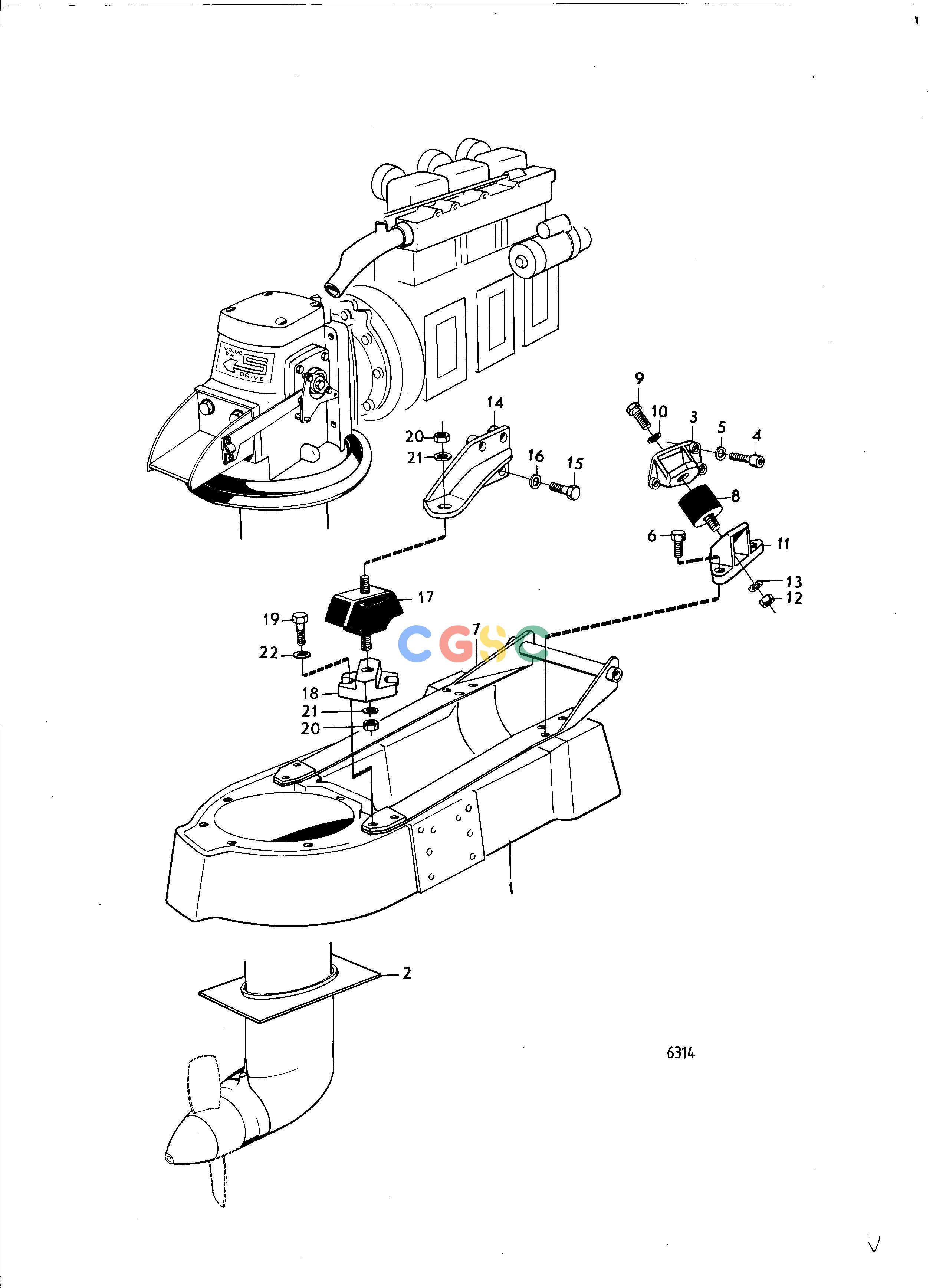

沃尔沃零件查询MD11; MD11C; MD11D; MD17; MD17C; MD17DEngineEngine Suspension, Sail Boat Drive UnitEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
898 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
852141
|
[1] |
Engine bed
|
|
| 2. |
850353
|
[1] |
Cover plate
|
|
| 3. |
850430
|
[1] |
Bracket
|
S.B
|
| 3. |
850431
|
[1] |
Bracket
|
P
|
| 4. |
959240
|
[6] |
Hex. socket screw
|
|
| 5. |
942336
|
[6] |
Spring washer
|
|
| 6. |
955298
|
[6] |
Hexagon screw
|
|
| 7. |
850660
|
[1] |
Bracket
|
|
| 7. |
850432
|
[2] |
Rubber element
|
|
| 8. |
|
|
|
|
| 9. |
955338
|
[2] |
Hexagon screw
|
|
| 10. |
940280
|
[4] |
Spring washer
|
|
| 11. |
850228
|
[2] |
Bracket
|
|
| 12. |
955784
|
[2] |
Hexagon nut
|
|
| 13. |
940280
|
[2] |
Spring washer
|
|
| 14. |
850448
|
[1] |
Engine bracket
|
S.B
|
| 14. |
850449
|
[1] |
Engine bracket
|
P
|
| 15. |
955319
|
[8] |
Hexagon screw
|
|
| 16. |
942336
|
[8] |
Spring washer
|
|
| 17. |
850405
|
[2] |
Rubber element
|
|
| 18. |
850459
|
[2] |
Bracket
|
|
| 19. |
955320
|
[4] |
Hexagon screw
|
|
| 20. |
955783
|
[4] |
Hexagon nut
|
|
| 21. |
942336
|
[4] |
Spring washer
|
|
| 22. |
960148
|
[4] |
Washer
|
|
