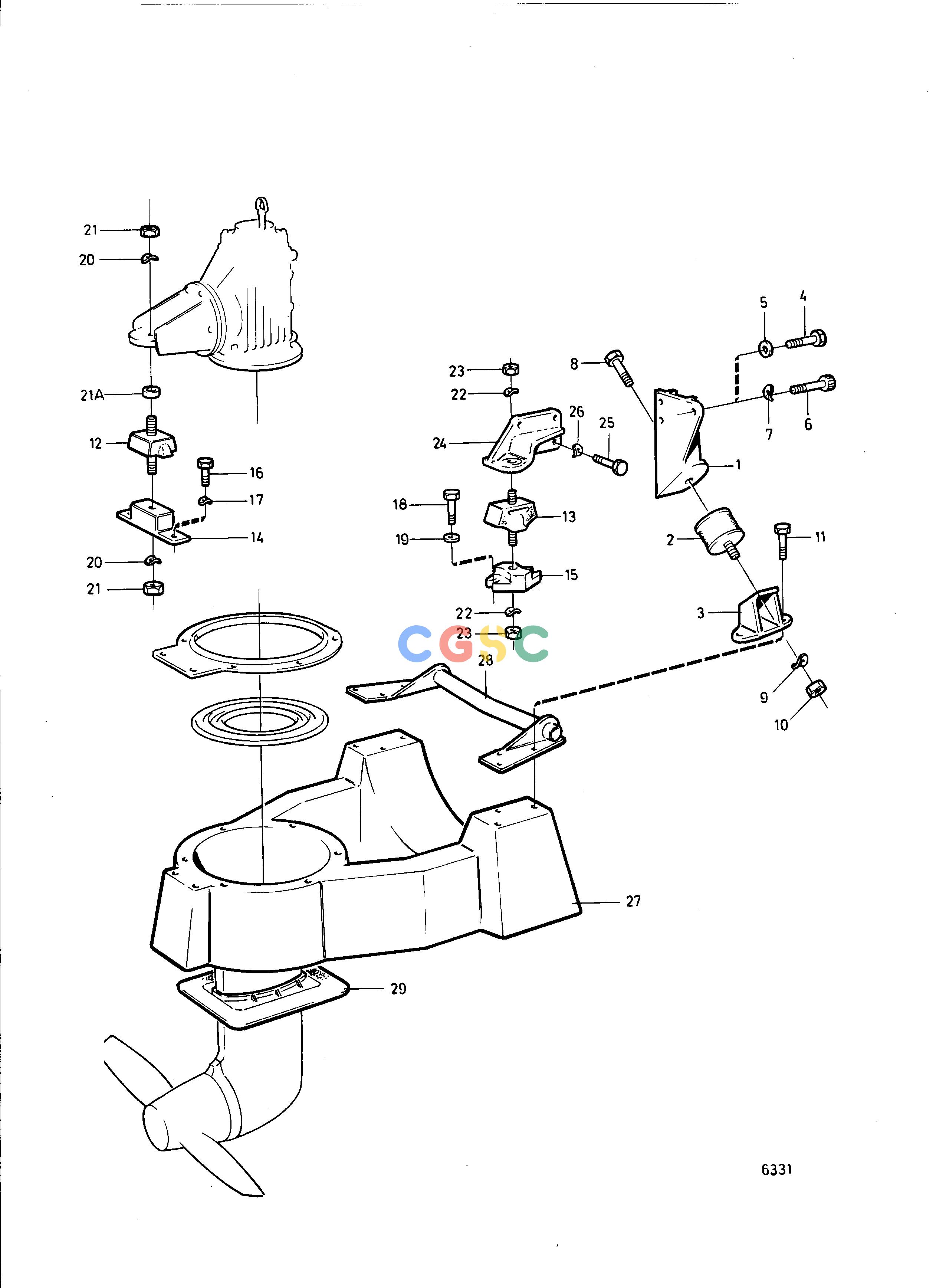

沃尔沃零件查询MD11; MD11C; MD11D; MD17; MD17C; MD17DEngineEngine Suspension, Sail Boat Drive Unit: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
966 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
850218
|
[1] |
Engine bracket
|
S.B
|
| 1. |
850217
|
[1] |
Engine bracket
|
P
|
| 2. |
850064
|
[2] |
Rubber element
|
|
| 3. |
850228
|
[2] |
Bracket
|
|
| 4. |
955326
|
[1] |
Hexagon screw
|
L=70mm
|
| 4. |
955322
|
[4] |
Hexagon screw
|
L=50mm
|
| 4. |
955318
|
[1] |
Hexagon screw
|
L=30mm
|
| 5. |
946075
|
[6] |
Washer
|
|
| 7. |
942336
|
[6] |
Spring washer
|
|
| 8. |
955338
|
[2] |
Hexagon screw
|
L=22mm
|
| 9. |
940280
|
[2] |
Spring washer
|
|
| 10. |
955784
|
[2] |
Hexagon nut
|
|
| 11. |
963570
|
[6] |
Hexagon screw
|
L=40mm
|
| 12. |
850405
|
[1] |
Rubber element
|
|
| 14. |
850338
|
[1] |
Bracket
|
|
| 16. |
963583
|
[2] |
Hexagon screw
|
L=40mm
|
| 17. |
942336
|
[2] |
Spring washer
|
|
| 20. |
942336
|
[2] |
Spring washer
|
|
| 21. |
955783
|
[2] |
Hexagon nut
|
|
| 21A. |
852554
|
[1] |
Bushing
|
|
| 22. |
942336
|
[4] |
Spring washer
|
|
| 27. |
852140
|
[1] |
Engine bed
|
See group 4A
|
| 28. |
850654
|
[1] |
Deflection limiter
|
See group 4A
|
| 29. |
850353
|
[1] |
Cover plate
|
See group 4A
|
