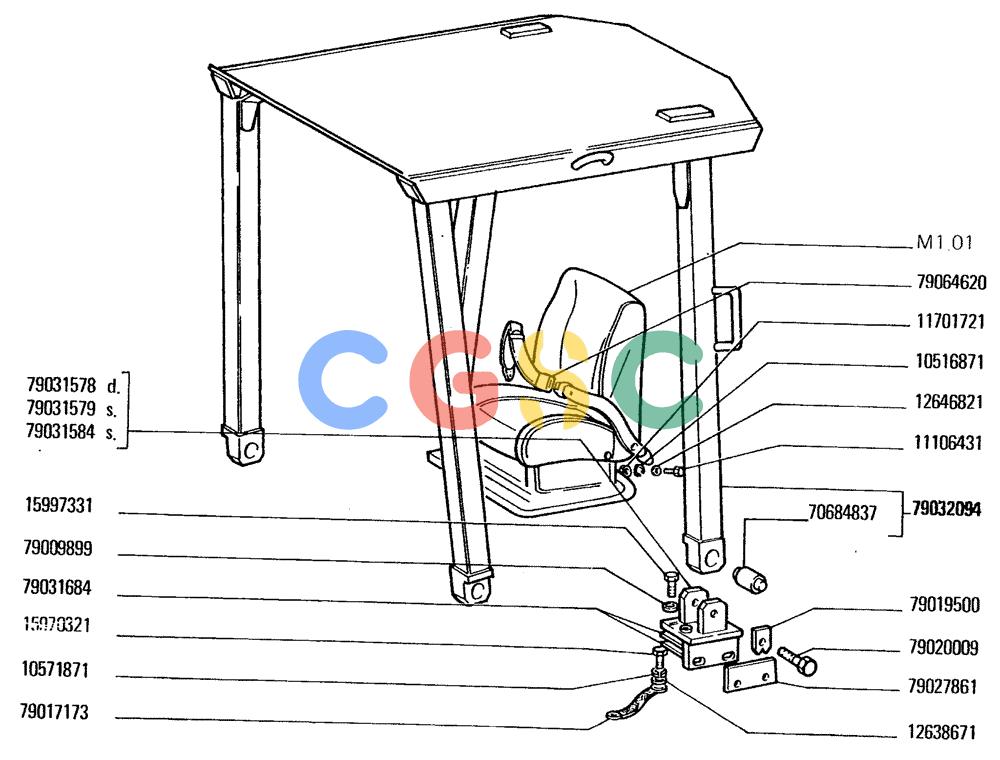

纽荷兰零件查询(FD20) - CRAWLER DOZER (L3.08/1[001]) - ROPS CANOPY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
570 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 10516871. | 10516871 | [2] | LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk | HFILOCKWASHER Superseded by part number: 10571873 |
| 11106431. | 11106431 | [2] | SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd | LECSCREW Superseded by part number: 9515003 |
| 11701721. | 11701721 | [2] | NUT,M10, Cl 10 | LEC Superseded by part number: 17038131 |
| 12638671. | 12638671 | [2] | WASHER | LEC Superseded by part number: 12638621 |
| 12646821. | 12646821 | [2] | WASHER,10.2mm ID x 25mm OD x 2mm Thk | BHB Superseded by part number: 12646824 |
| 15970321. | 15970321 | [2] | SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd | TTFBOLT, Hex, M10 x 1.25 x 16, 8.8, Full Thd Superseded by part number: 15970324 |
| 15997331. | 15997331 | [16] | BOLT,Hex, M24 x 2 x 70mm, Cl 10.9, Full Thd | BHB Superseded by part number: 15997337 |
| 70684837. | 70684837 | [4] | BUSHING,31.72mm ID x 63.75mm OD x 85.85mm L | CMI |
| 79009899. | 79009899 | [16] | WASHER | LEC |
| 79017173. | 79017173 | [1] | ELECTRIC CABLE | MODGROUND BRAID Superseded by part number: 79028421 |
| 79019500. | 79019500 | [4] | LOCKING PLATE | LECLOCKPLATE |
| 79020009. | 79020009 | [4] | SCREW | LEC |
| 79027861. | 79027861 | [1] | SHIM | LEC |
| 79031578. | 79031578 | [2] | SUPPORT | LEC |
| 79031579. | 79031579 | [1] | SUPPORT | LEC |
| 79031584. | 79031584 | [1] | SUPPORT | LEC |
| 79031684. | 79031684 | [1] | SHIM | LEC |
| 79032094. | 79032094 | [1] | GUARD | LECFRAME WORK |
| 79064620. | 79064620 | [1] | SAFETY BELT ,48.00 mm W | LECSAFETY BELT, 48.00 mm W Superseded by part number: 73159801 |
