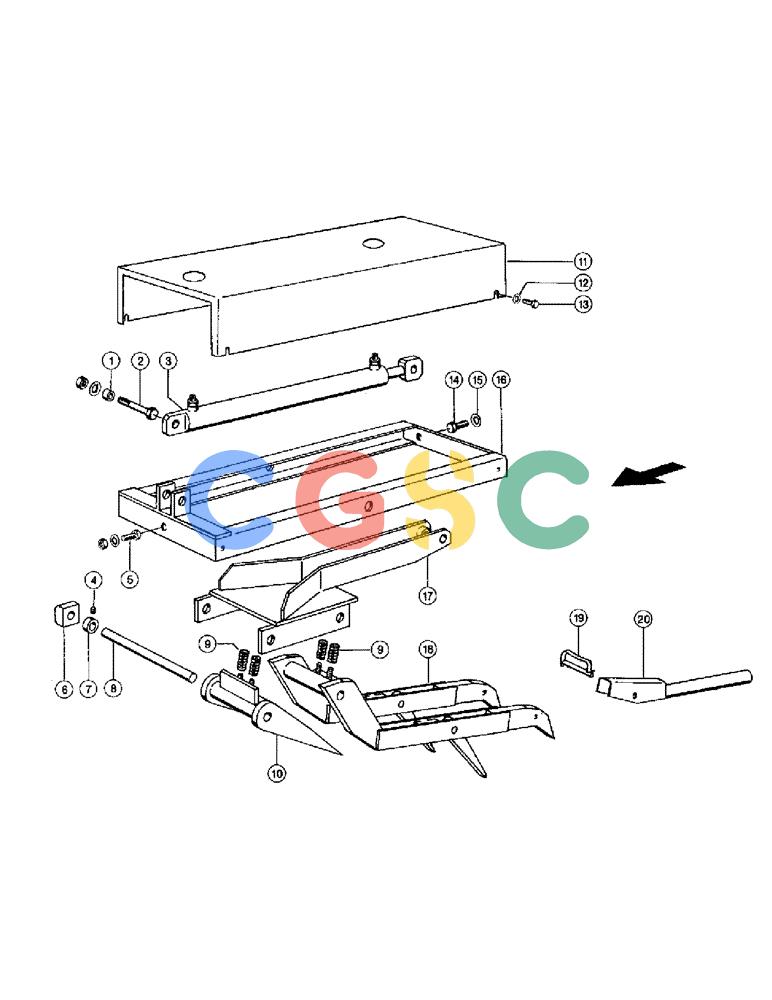

凯斯零件查询(110) - CASE IH QUADROBALE BALER (1/96-12/98) (043) - BALE EJECTOR (VAR.9048) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
703 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
9027230
|
[2] |
SPACER
|
R
tube
|
| 2. |
2151320
|
[2] |
SCREW
|
R
Hexagonal screw M22x1,5 x110
|
| . . |
525-5111
|
[2] |
NUT,M22 x 1.5, Cl 8
|
IH
Hexagonal nut M22x1,5
|
| . . |
2365011
|
[2] |
WASHER
|
R
Safety ring 22
|
| 3. |
8310430
|
[1] |
CYLINDER ASSY.
|
R
Hydr. cylinder
|
| 4. |
2365520
|
[4] |
SET SCREW
|
R
Threaded pin M10x 8
|
| 5. |
614-16045
|
[1] |
BOLT,Hex, M16 x 2 x 45mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 385922
|
| . . |
190003871339
|
[1] |
NUT
|
S
Hex, M16 Superseded by part number: 392530
|
| . . |
2393910
|
[1] |
WASHER
|
R
Contact washer A16
|
| 6. |
8310440
|
[4] |
SLIDE
|
R
Glide slat
|
| 7. |
6704800
|
[4] |
COLLAR
|
R
Adjusting ring
|
| 8. |
8310450
|
[2] |
ROD
|
R
Shaft
|
| 9. |
8310650
|
[4] |
SPRING
|
R
Compress.spring
|
| 10. |
8310630
|
[1] |
TOOTH
|
R
Tine, short
|
| 11. |
8310680
|
[1] |
SHEET
|
R
Guard cap
|
| 12. |
98-029447
|
[4] |
WASHER
|
FO
Contact washer A 8 Superseded by part number: 322358
|
| 13. |
8963100024
|
[4] |
BOLT
|
AST
Hexagonal screw M 8x 12
|
| 16. |
8310420
|
[1] |
SHEET
|
R
Frame
|
| 17. |
8310480
|
[1] |
SLIDE
|
R
Sled
|
| 18. |
8310530
|
[1] |
TOOTH
|
R
Tine, long
|
| 19. |
9782160
|
[1] |
PLUG
|
R
bei Ballenstapler Superseded by part number: 80749412
|
| 20. |
8311400
|
[1] |
SLINGER
|
R
Bale ejector bei Ballenstapler
|
