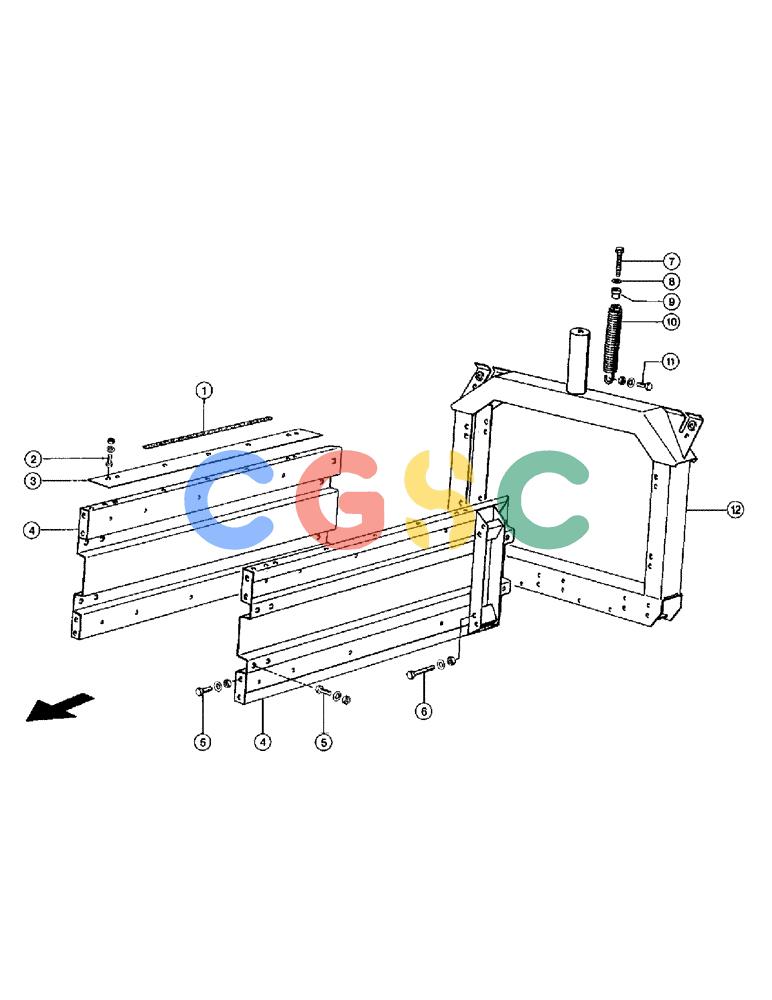

凯斯零件查询(110) - CASE IH QUADROBALE BALER (1/96-12/98) (042A) - BALE CHAMBER, FROM SERIAL NO. 04400305 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
116 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7912090
|
[2] |
MUDFLAP
|
R
Floor covering -
|
| 2. |
614-8020
|
[10] |
BOLT,Hex, M8 x 1.25 x 20mm
|
CAS
Superseded by part number: 120104
|
| . . |
43362
|
[10] |
NUT,M8 x 1.25, Cl 10
|
BHB
M8, Cl 10
|
| . . |
98-029447
|
[10] |
WASHER
|
FO
Contact washer A 8, - Superseded by part number: 322358
|
| 3. |
8310000
|
[2] |
CONNECTING STRIP
|
R
Ledge -
|
| 4. |
8309670
|
[2] |
SHEET
|
R
Press.flap side -
|
| 5. |
614-12025
|
[16] |
BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd
|
IH
- Hex, M12 x 25, 8.8 Superseded by part number: 300388
|
| . . |
2361720
|
[16] |
NUT
|
R
Hex, M12 Superseded by part number: 337475
|
| . . |
239389N0
|
[16] |
WASHER
|
FO
Contact washer A12, - Superseded by part number: 140046
|
| 6. |
814-12110
|
[4] |
BOLT,Hex, M12 x 1.75 x 110mm, Cl 8.8
|
CAS
Superseded by part number: 86562594
|
| 7. |
2424580
|
[1] |
SCREW
|
R
Hexagonal screw M12x120
|
| 9. |
8101170
|
[1] |
BUSHING
|
R
, Serial Range: -04400434
|
| 10. |
9176170
|
[1] |
SPRING
|
R
Tension spring
|
| 11. |
930051R1
|
[1] |
BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8
|
IH
Hexagonal screw M10x 40 Superseded by part number: 120112
|
| . . |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| . . |
98-029441
|
[1] |
WASHER
|
FO
Contact washer A10 Superseded by part number: 140045
|
| 12. |
8309721
|
[1] |
SHEET
|
R
Frame -
|
