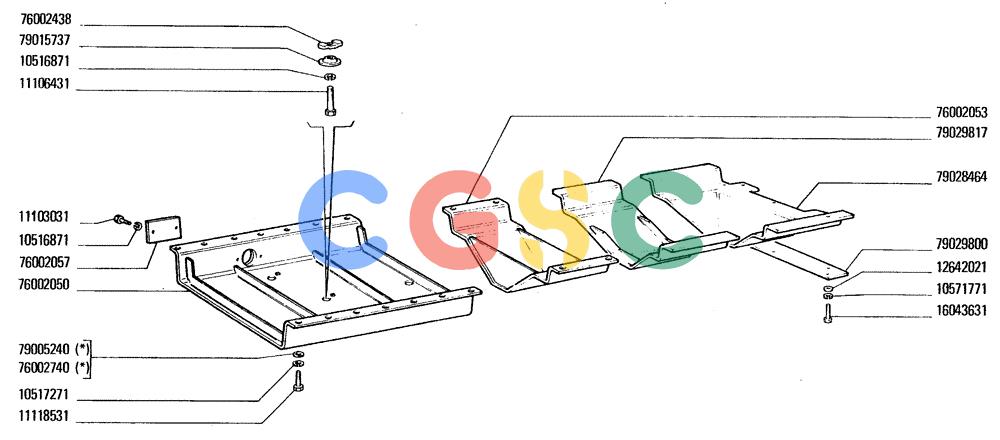

纽荷兰零件查询(FD20) - CRAWLER DOZER (L3.12[001]) - APRONS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
357 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 10516871. | 10516871 | [5] | LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk | HFILOCKWASHER Superseded by part number: 10571873 |
| 10517271. | 10517271 | [28] | LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk | BHBLOCKWASHER Superseded by part number: 10572173 |
| 10571771. | 10571771 | [5] | LOCK WASHER,M8 | CASLOCKWASHER Superseded by part number: 83990583 |
| 11103031. | 11103031 | [2] | BOLT,Hex, M10 x 18, 10.9, Full Thd | LEC |
| 11106431. | 11106431 | [3] | SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd | LECSCREW Superseded by part number: 9515003 |
| 11118531. | 11118531 | [28] | BOLT,Hex, M16 x 40, 10.9 | BHB Superseded by part number: 374835 |
| 12642021. | 12642021 | [5] | WASHER | BHB Superseded by part number: 63707, 86625263 |
| 16043631. | 16043631 | [5] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHBBOLT, Hex, M8 x 25, 10.9 Superseded by part number: 43234 |
| 76002050. | 76002050 | [1] | COVER | LECPROTECTION |
| 76002053. | 76002053 | [1] | GUARD | LECPROTECTION |
| 76002057. | 76002057 | [1] | COVER | LEC |
| 76002438. | 76002438 | [3] | PLATE | LECSHAPED BAR |
| 76002740. | 76002740 | [28] | WASHER | LEC Superseded by part number: 79032222 |
| 79005240. | 79005240 | [28] | WASHER,16.8mm ID x 36mm OD x 8mm Thk | LEC |
| 79015737. | 79015737 | [3] | PLUG | LEC |
| 79028464. | 79028464 | [1] | GUARD | LECPROTECTION |
| 79029017. | 79029017 | [1] | GUARD | NHPROTECTION Superseded by part number: 79029817 |
| 79029800. | 79029800 | [1] | COVER | LEC |
| 79029817. | 79029817 | [1] | GUARD | LECPROTECTION |
