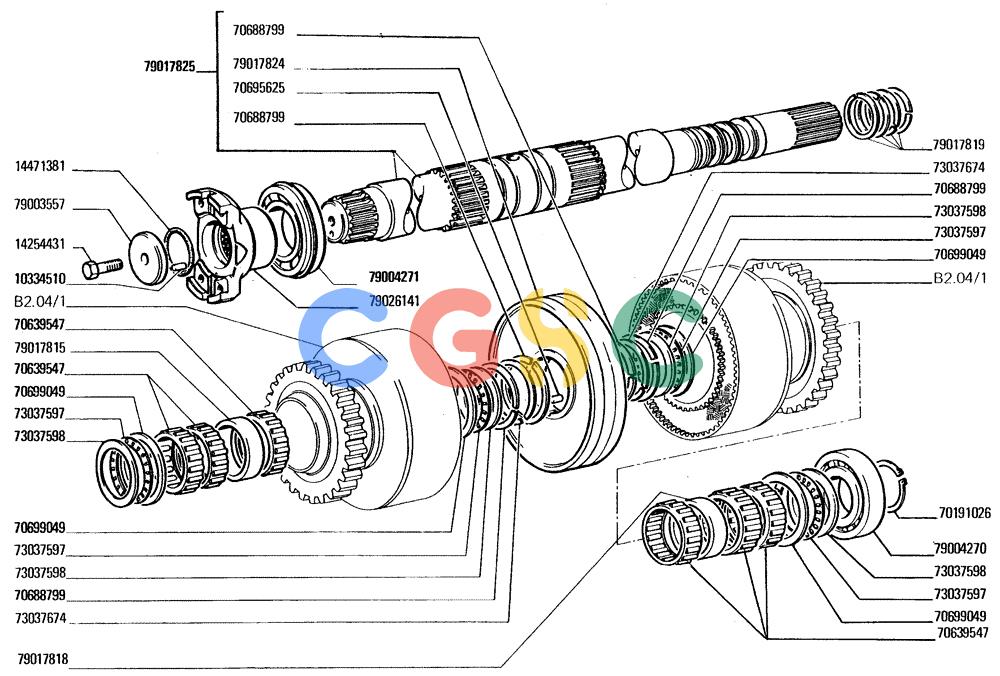

纽荷兰零件查询(FD20) - CRAWLER DOZER (B2.04[002]) - TRANSMISSION GEARS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
555 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 10334510. | 10334510 | [1] | PIN | LEC |
| 14254431. | 14254431 | [1] | BOLT,Hex, M14 x 1.5 x 30mm, Cl 10.9 | BASSCREW |
| 14471381. | 14471381 | [1] | O-RING,53.34MM ID x 5.33 Thk | LEC |
| 70191026. | 70191026 | [1] | SPACER | CMILOCKRING |
| 70639547. | 70639547 | [4] | ROLLER BEARING,76.19mm ID x 85.77mm OD x 25.4mm W | CMIBEARING |
| 70688799. | 70688799 | [4] | SPACER | CMILOCKRING |
| 70695625. | 70695625 | [1] | PIN | CMI |
| 70699049. | 70699049 | [4] | SPACER | CMIWASHER |
| 73037597. | 73037597 | [4] | THRUST BEARING | CMIBEARING Superseded by part number: A75158 |
| 73037598. | 73037598 | [4] | WASHER | CMI |
| 73037974. | 73037674 | [2] | RING | CMI |
| 79003557. | 79003557 | [1] | WASHER | LEC |
| 79004270. | 79004270 | [1] | CYLINDRICAL ROLLER BEARING,65mm ID x 120mm OD x 31mm W | LECBEARING |
| 79004271. | 79004271 | [1] | BALL BEARING,65mm ID x 140mm OD x 33mm W | LECBEARING |
| 79017815. | 79017815 | [1] | SPACER | LEC |
| 79017818. | 79017818 | [1] | SPACER | LEC |
| 79017819. | 79017819 | [4] | RING | LEC Superseded by part number: 79060609 |
| 79017824. | 79017824 | [1] | HOUSING | LECCASE |
| 79017825. | 79017825 | [1] | SHAFT | LEC |
| 79026141. | 79026141 | [1] | DRIVE BUSHING | LECDRAG SLEEVE |
